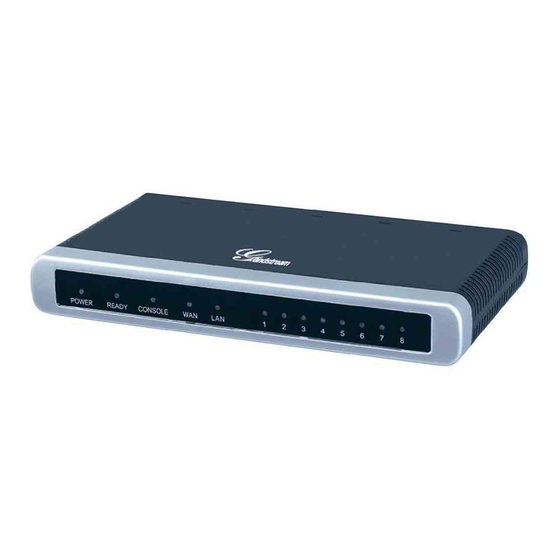

Grandstream Networks GXW410x User Manual
Analog ip gateway 4 or 8 fxo ports w/video surveillance
Hide thumbs
Also See for GXW410x:
- User manual (37 pages) ,
- Setup manual (13 pages) ,
- Quick installation manual (9 pages)
Related Manuals for Grandstream Networks GXW410x
Summary of Contents for Grandstream Networks GXW410x
- Page 1 Grandstream Networks, Inc. Analog IP Gateway GXW410x 4 or 8 FXO Ports w/Video Surveillance GXW410x User Manual www.grandstream.com Firmware Version 1.0.1.25 support@grandstream.com...
-
Page 2: Table Of Contents
............................ 5 ONNECTING THE APPLICATION DESCRIPTION ........................7 Functional Diagram of IP-PBX & GXW410x ....................... 7 GXW400x & GXW410x Scenario/Toll- Free Calling Between Locations ............. 8 FXS and FXO Gateway Configuration Example ....................9 FEATURES ..............................10 ..........................10 OFTWARE... - Page 3 TABLE OF FIGURES GXW410X USER MANUAL 1: D GXW410 ..................... 5 IGURE IAGRAM OF ANEL 2: D GXW410 ..................6 IGURE IAGRAM OF ISPLAY ANEL 7: S * ..................27 IGURE CREEN SHOT OF IDEO URVEILLANCE : GXW IP-PBX SIP S ............
-
Page 4: Gxw410X User Manual
ELCOME Thank you for purchasing the Grandstream GXW410x IP Analog FXO Gateway. The GXW410x is a cost effective, easy to use and easy to configure IP communications solution for any business. The GXW410x gateway supports popular voice codecs and is designed for full SIP compatibility and interoperability with party SIP providers, thus enabling you to fully leverage the benefits of VoIP technology, integrate a traditional phone system into a VoIP network, and efficiently manage communication costs. -
Page 5: Packaging
ONNECTORS LAN (or PC) Connect your PC to this port. It will then be assigned an IP address from your Router/DHCP Server. The GXW410x acts as a switch only. Connect to the internal LAN network or Public Internet. VIDEO IN... -
Page 6: Figure 2: Diagram Of Gxw410
OFF while the new files are written. The entire process may take between 20 to 30 minutes. The firmware upgrade is complete when you can login into the web configuration pages. Grandstream Networks, Inc. GXW410x User Manual Page 6 of 33 Firmware 1.0.1.25... -
Page 7: Application Description
A. IP PBX / SIP Server with GXW410x A SIP proxy server such as Asterisk or a SIP registrar server can be deployed with the GXW410x series gateway. In this environment, the SIP server handles SIP registration and call control and the GXW410x processes media conversion between IP and PSTN calls. -
Page 8: Gxw400X & Gxw410X Scenario/Toll- Free Calling Between Locations
B. FXS Gateway with GXW410x [No SIP Server required] Alternatively, the GXW410x gateway can be used without a SIP Server. It can be used in conjunction with an FXS Gateway (Ex. GXW400x) and calls can still be originated from the IP network and terminated on the PSTN network and vice versa. -
Page 9: Fxs And Fxo Gateway Configuration Example
SIP Registration - No NAT traversal - No For more information regarding this setup, email Grandstream technical support at support@grandstream.com or visit our User and Developer forum at forums.grandstream.com Grandstream Networks, Inc. GXW410x User Manual Page 9 of 33 Firmware 1.0.1.25 Updated: 07/2008... -
Page 10: Features
EATURES The GXW410x is a next generation IP voice and video gateway that features full interoperability with leading IP-PBXs, SoftSwitches and SIP platforms. The GXW410x series gateways offer superb voice and video quality, traditional telephony functionality, simple configuration, feature-rich functionality and an additional video port that enables the gateway to act as a video surveillance gateway. -
Page 11: Table 3: Gxw410 X Software
Polarity Reversal / Wink Yes (Detection only). The PSTN lines will need to be subscribed to PR service from the Service Provider. GXW410x: EN55022 Class B, CFR Part 15 Class B, EN55024; GXW4104: FCC, CE (in addition) Safety GXW410x: EN60950-1 GXW4108: UL60950-1 (in addition) Grandstream Networks, Inc. -
Page 12: Configuration Guide
ONFIGURATION UIDE ONFIGURATION WITH ROWSER The GXW410x gateways have an embedded Web server that will allow a user to configure the IP phone through any web browser. Examples of GUI interfaces can be downloaded @ http://www.grandstream.com/user_manuals/GUI/GUI_GXW410x.rar. CCESSING THE ONFIGURATION 1. Navigate your browser to: http://www.grandstream.com/DOWNLOAD/IPQuery/IPQuery.zip... -
Page 13: Table 6: Web Log - In Definitions
DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The GXW410x acquires its IP address from the first DHCP server it discovers from the LAN it is connected. -
Page 14: Table 7: Status
MAC Address The device ID in HEX format. This is a very important ID for ISP troubleshooting. IP Address This field shows WAN IP address of GXW410x Product Model This field contains the product model info (GXW4104 or GXW4108) Software Version Program: This is the main software release. - Page 15 This field shows whether the PPPoE connection is running if connected to DSL modem. Detected NAT Type This field shows what kind NAT the GXW410x is connected to via its WAN port. It is based on STUN protocol. Grandstream Networks, Inc.
-
Page 16: Advanced User Settings
This is usually necessary when multiple GXW410xs are behind the same NAT. Keep-alive This parameter specifies how often the GXW410x sends a blank UDP packet to the SIP server in order to keep the “hole” on the NAT open. Default is 20 seconds. - Page 17 Here “:6688” is the specific TCP port that the HTTP server is listening at, it can be omitted if using default port 80. Note: If Auto Upgrade is set to No, GXW410x will only do HTTP download once at boot up. Firmware Server IP address or domain name of firmware server.
- Page 18 NTP server Enable Video When set to Yes, GXW410x will start converting video feed received from analog camera to IP Surveillance packets. In order to view this video feed, please follow instructions given under Video Surveillance chapter on page 23.
-
Page 19: Configuring The Fxo Channels
Terminate call after long silence detected. Default is 60 seconds, max 65536. AC Termination Selects the impedance of the analog line connected to the FXO port on the GXW410x. Here is Impedance some basic information which may be helpful for initial configuration: 600 Ohm –... - Page 20 Under Sip Server we can type in: ch1:p1;ch2-4:p2;ch5:p3 ch1-2:5060;ch2:7080;ch3-8:5066++ Under Sip Destination Port we can type in: Caller ID Scheme The GXW410x supports 5 different types of schemes: Bellcore (US standard) ETSI_RING ETSI_TAS DTMF NTT (Japanese standard) Please check with your PSTN service provider (or traditional PBX specs) for which caller ID scheme it supports.
-
Page 21: Table 10: Fxo Line Test Tab Definitions
It should be set same as the channel number (i.e 1, 2..4 or 8 depending on number of FXO ports). It is NOT the same as SIP Account ID. Grandstream Networks, Inc. GXW410x User Manual Page 21 of 33 Firmware 1.0.1.25... - Page 22 5062 and so on. This setting can be used with Round Robin and/or Flexible setting below to configure different ports to be placed under different Round Robin groups. Grandstream Networks, Inc. GXW410x User Manual Page 22 of 33 Firmware 1.0.1.25 Updated: 07/2008...
-
Page 23: Profiles
Profiles are basically IP-PBX / SIP Server configuration templates. If you have more than one IP-PBX system or SIP Server that you would like to use with the GXW410x, then you can configure Profile 2 or 3. Note: Make sure you select the correct profile for each channel under Channels PAGE Grandstream Networks, Inc. -
Page 24: Table 12: Profile
Unregister on Reboot Register Expiration This parameter allows the user to specify the time frequency (in minutes) for the GXW410x to refresh its registration with the specified registrar. The default interval is 60 minutes (or 1 hour). The maximum interval is 65535 minutes (about 45 days). -
Page 25: Saving The Configuration Changes
ONFIGURATION HANGES When changes are made, press the “Update” button in the Configuration Menu. The GXW410x will display the following screen to confirm that the changes have been saved. To activate changes, reboot or power cycle the GXW410x after all changes are made. -
Page 26: Video Surveillance
IDEO URVEILLANCE The GXW410x gateway can be used with an Analog Surveillance CCD Camera to perform video surveillance function. This application should be used in a LAN environment or when both sides have public IP address. IDEO URVEILLANCE ROCEDURES Gateway side: 1. -
Page 27: Figure 7: Screen - Shot Ofv
If the port uses default value 554, the port portion can be omitted from the URL Click OK to start the video. 7: S IGURE CREEN SHOT OF IDEO URVEILLANCE * PC client side running VLC as monitoring station Grandstream Networks, Inc. GXW410x User Manual Page 27 of 33 Firmware 1.0.1.25 Updated: 07/2008... -
Page 28: Firmware Upgrade
5. Reboot or power cycle the unit. If the configured upgrade server is found and a new code image is available, the GXW410x will retrieve the new image files by downloading them into the GXW410 gateway’s SRAM. During this stage, the GXW410x gateway’s LED will blink until the checking/downloading process is completed. -
Page 29: Download Tftp Server
1. Unzip the file and put all of the files under the root directory of the TFTP server. 2. Put the PC running the TFTP server and the GXW410x in the same LAN segment. 3. Go to File -> Configure -> Security to change the TFTP server's default setting from "Receive Only"... -
Page 30: Restore Factory Default Setting
4. You will see the Network port LEDs (green and orange) go off and on simultaneously; this indicates the reset went through. 5. All settings have been erased and the gateway is back to factory settings. Grandstream Networks, Inc. GXW410x User Manual Page 30 of 33 Firmware 1.0.1.25 Updated: 07/2008... -
Page 31: Examples Of Gxw410X Configurations
Examples of GXW410x Configurations : GXW IP-PBX SIP S PPLICATION CONNECTED WITH AN ERVER Scenario: A business with a traditional phone system (with or without broadband access) and an IP PBX or SIP Servers connecting to an Internet Telephone Service Provider (ITSP). -
Page 32: Application Three : Gxw
IP- IP C PPLICATION SING A OMMUNICATION ONFIGURATION Scenario Four: The GXW410x offers an IP to IP pure IP Communications System configuration, where all locations use IP phones. Grandstream Networks, Inc. GXW410x User Manual Page 32 of 33 Firmware 1.0.1.25... - Page 33 SIP Server SIP Server IP/LAN IP/LAN GXW 410x GXW 410x Grandstream IP Phones Grandstream IP Phones Branch B – Denver, CO 4 employees Anywhere in the world Grandstream Networks, Inc. GXW410x User Manual Page 33 of 33 Firmware 1.0.1.25 Updated: 07/2008...
