Chapter 3 — Operation

Media Compartment

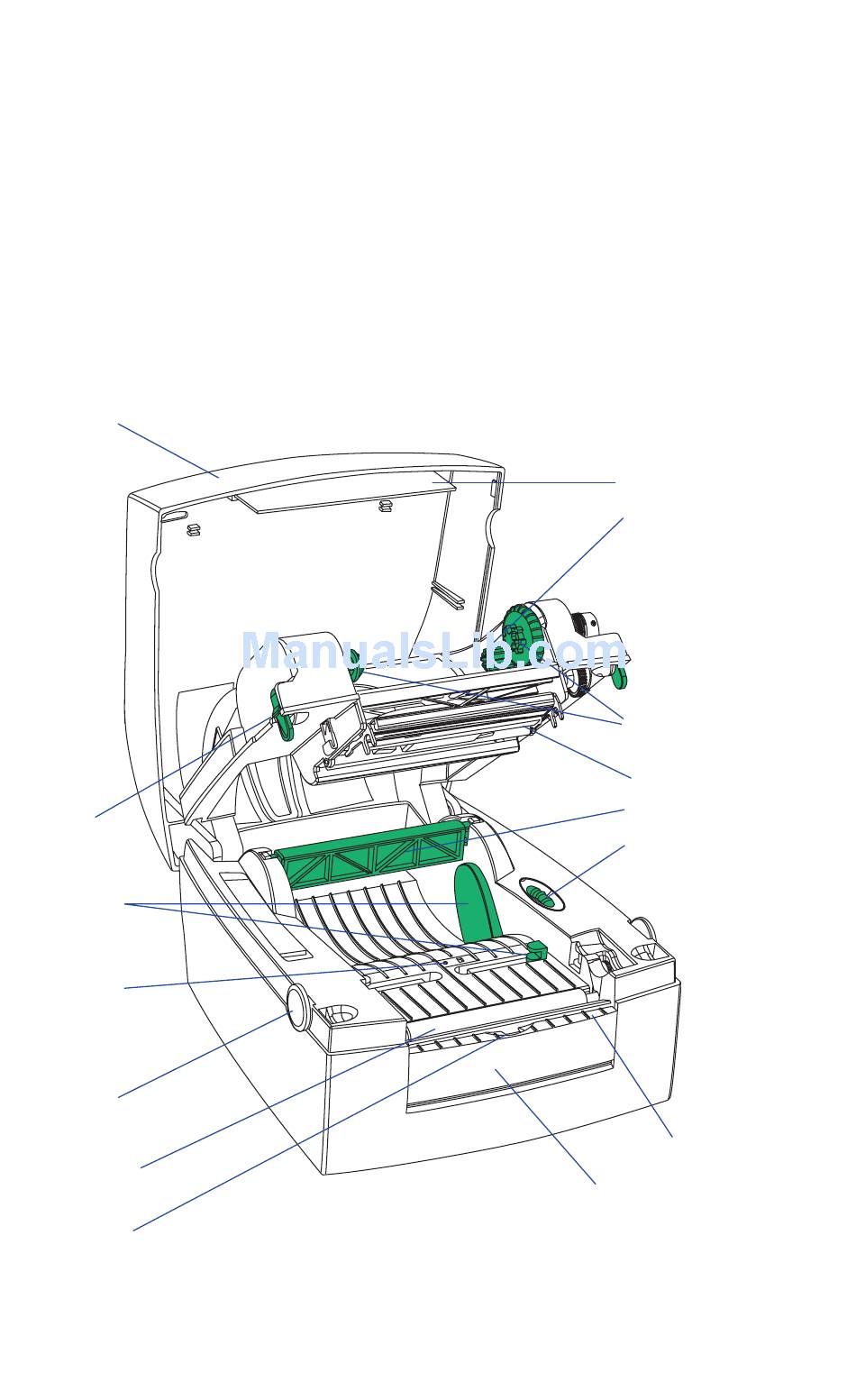

The media compartment accommodates the media supply and, in case
of thermal transfer capable printers, also the transfer ribbon supply (see
illustration below).
In dedicated direct thermal printers, the top cover and the print mecha-
nism are combined into a single unit.
Top cover
Ribbon
compart-
ment release
Adjustable
edge guides
Label gap/
black mark
sensor
Top cover release
Platen roller
Label taken sensor
16
Tear bar
Ribbon supply hub
Ribbon rewind hub
Print mechanism
Media roll spindle
Edge guide
adjustment wheel
Peel-off bar
Peel-off
mechanism
or paper cutter
