Power Connection

Place the printer in a suitable location that allows easy access to
1
printed labels and preferably also easy reload of media and transfer
ribbon. The printer should only be operated while resting on a hori-
zontal surface, like a table or similar.
The printer and power supply unit must never be operated
in a location where they can get wet. Personal injury could
result! Only use with power supply adapter Intermec SPN-
470-24 P/N 1-092515-XX.
Place the power supply adapter in a suitable location between the
2
printer and an electrical outlet, for example on the floor. The power
supply adapter can be used for 100 to 240 VAC, 50 to 60 Hz. The
configuration of the power cord plug differs according to national
standards.
Check that the printer's On/Off switch at the back is off (O).
3
First, fit the round connector into the power receptacle on the
4
printer's rear plate. Then connect the power cord between the power
supply adapter and an AC wall socket.
The power can be switched on/off by means of the On/Off switch
5
situated at the back of the printer. The indicator lamp on the printer
lights green, red, or orange to indicate that the power is on. (It also
indicates various conditions, see Chapter 3.)

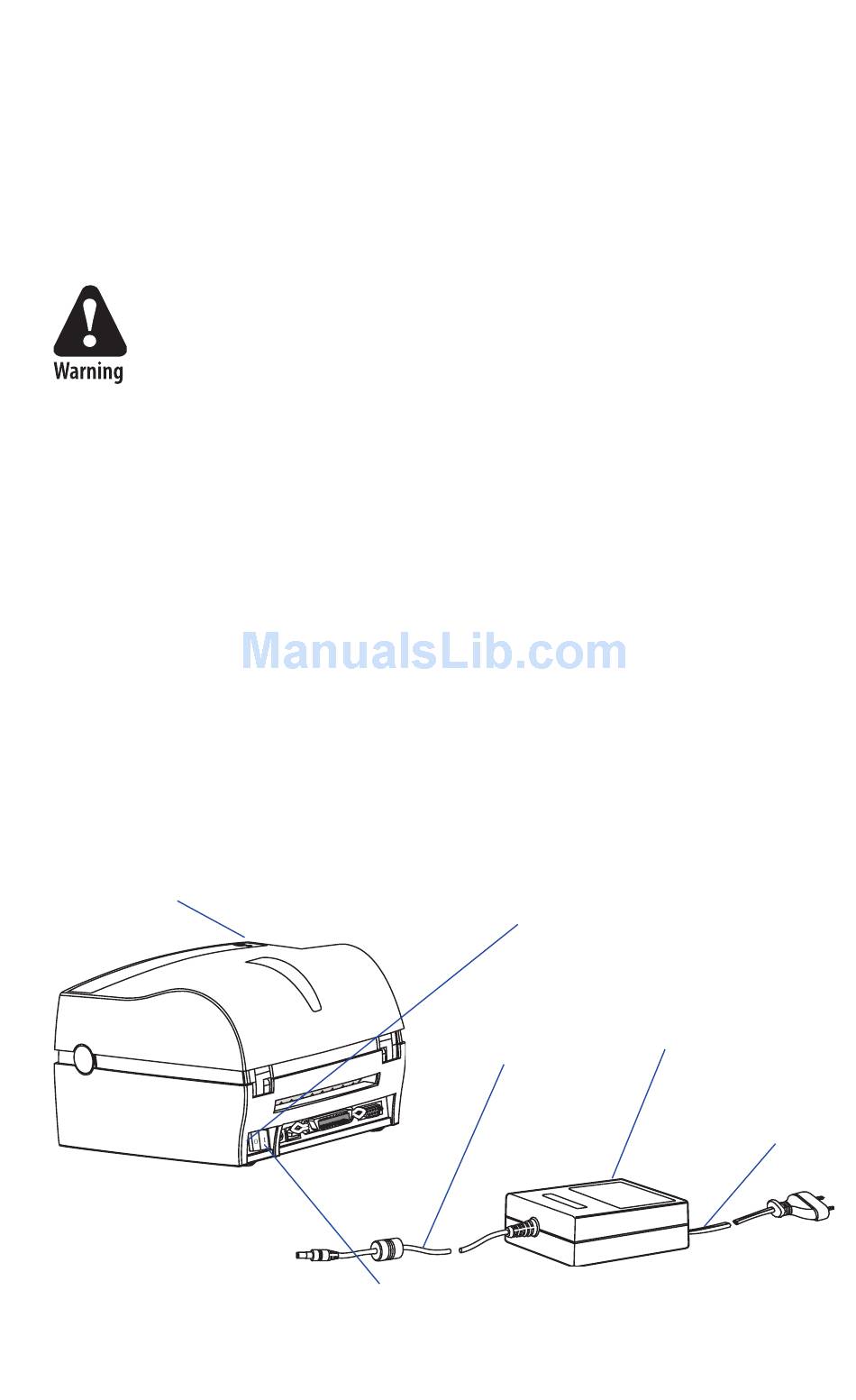

Indicator lamp
EasyCoder PC4 User's Guide
Power receptacle
Low voltage
cable
On/Off switch
Chapter 2 — Installation
Power supply
adapter
Power cord
7
