Peel-Off Operation
Open the printer's top cover by pressing the release buttons on both
1
sides and folding the cover upwards/rearwards.
Open the peel-off mechanism at the printer's front.
2
Pull up the spindle and remove possible remaining labels or empty
3
label roll core.
Place the spindle into the core of a fresh label roll. Rotate the spindle
4
according to the inner diameter of the label roll core (see markings on
the spindle).
Wind the green edge guide wheel towards the front of the printer so
5
you can fit the label roll between the guides.

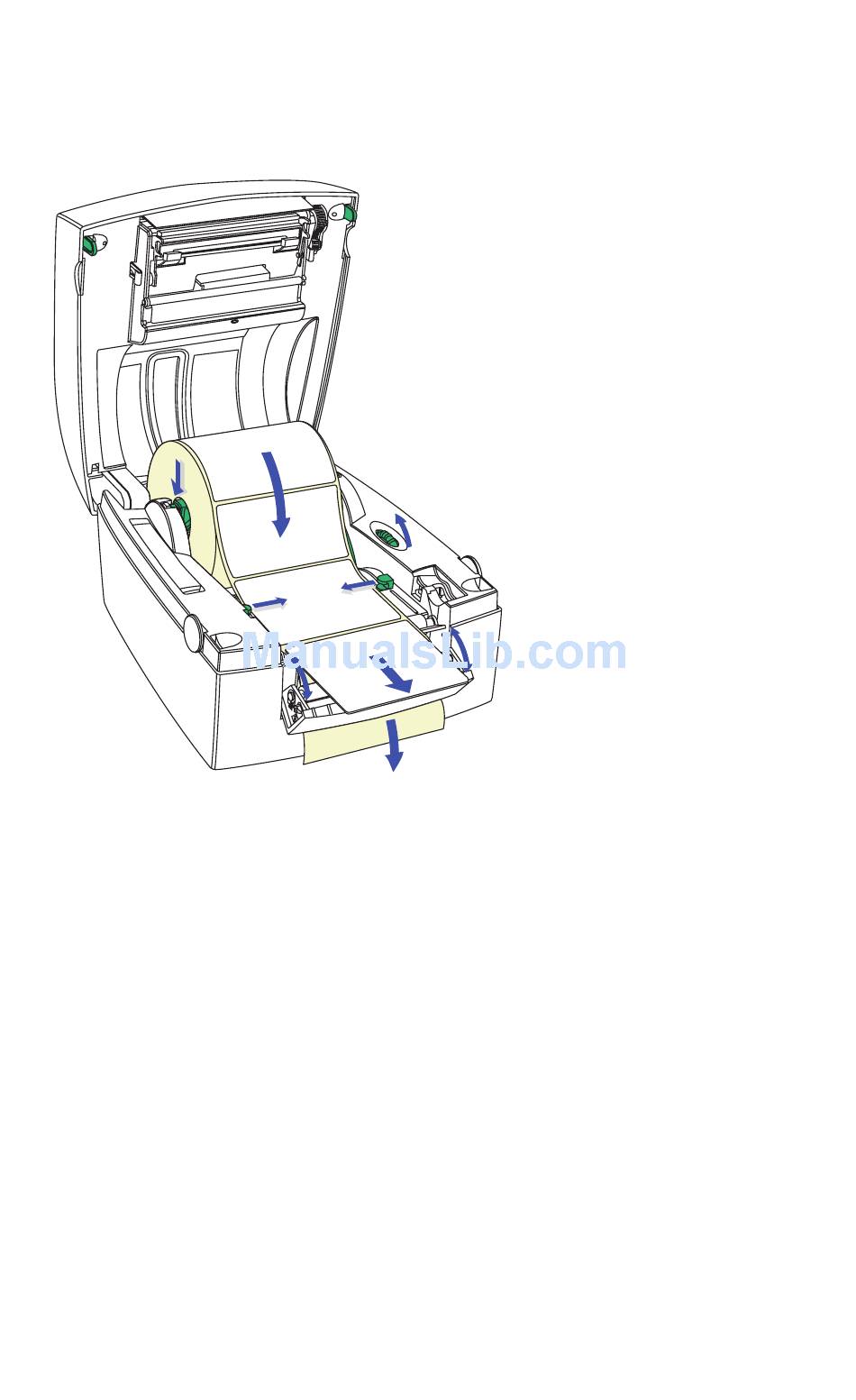

Place the label roll and spindle in the media compartment and snap
6
the spindle into the slots on either side.
