D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q

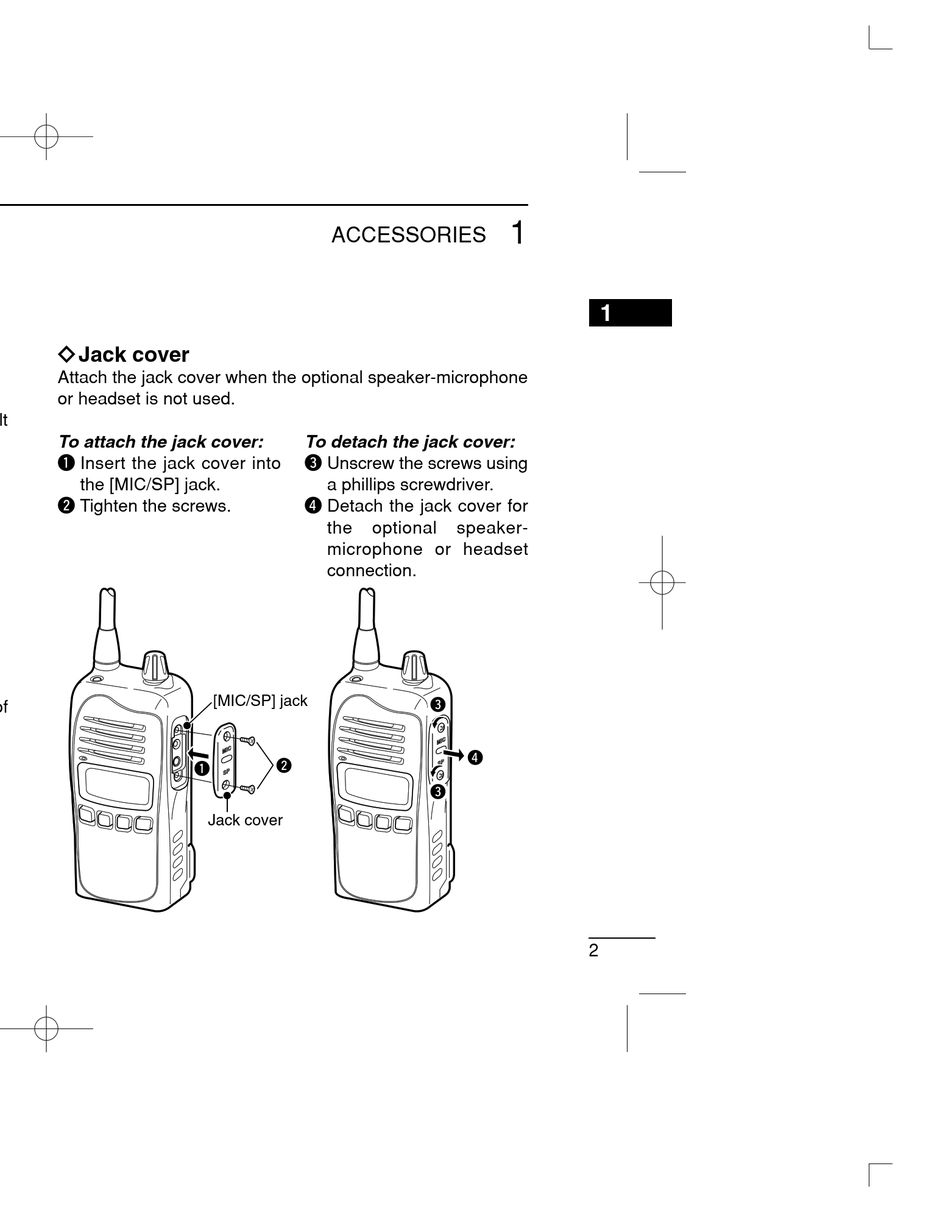

ï Jack cover
Attach the jack cover when the optional speaker-microphone
or headset is not used.
To attach the jack cover:
q Insert the jack cover into
the [MIC/SP] jack.
w Tighten the screws.
[MIC/SP] jack
w
q
Jack cover
1

ACCESSORIES

To detach the jack cover:
e Unscrew the screws using
a phillips screwdriver.
r Detach the jack cover for
the optional speaker-
microphone or headset
connection.
e
r
e
1
2
