Icom IC-F4029SDR Instruction Manual page 20

6
TONE SQUELCH OPERATION (Analog mode operation only)
D D DTCS code setting
This transceiver is equipped with 84 DTCS codes. DTCS
operation provides communication with silent standby since
you will only receive calls from group members using the
same DTCS code number.
q Rotate [VOL] to turn the power ON.
w Push [Side2] (CH Up) or [Side3] (CH Down) to select the
desired channel.
e Push [Code] to enter the DTCS code selection mode.
• " " appears.
• Push [Code] for 1 sec. to toggle the DTCS code and CTCSS
tone selection mode.
• "DT OFF" (or "DT T-00") is displayed in no tone setting channel.
NOTE: The indication type is depending on the set
mode setting. (p. 28)
r Push [Side2] (CH Up) or [Side3] (CH Down) to select the
desired tone code.
t Push [Code] again to set.
y When the received signal includes a matching tone,
squelch opens and the signal can be heard.
• When the received signal's tone does not match, tone squelch
does not open.
• To open the squelch temporarily, push [Side1] (MONI).
17

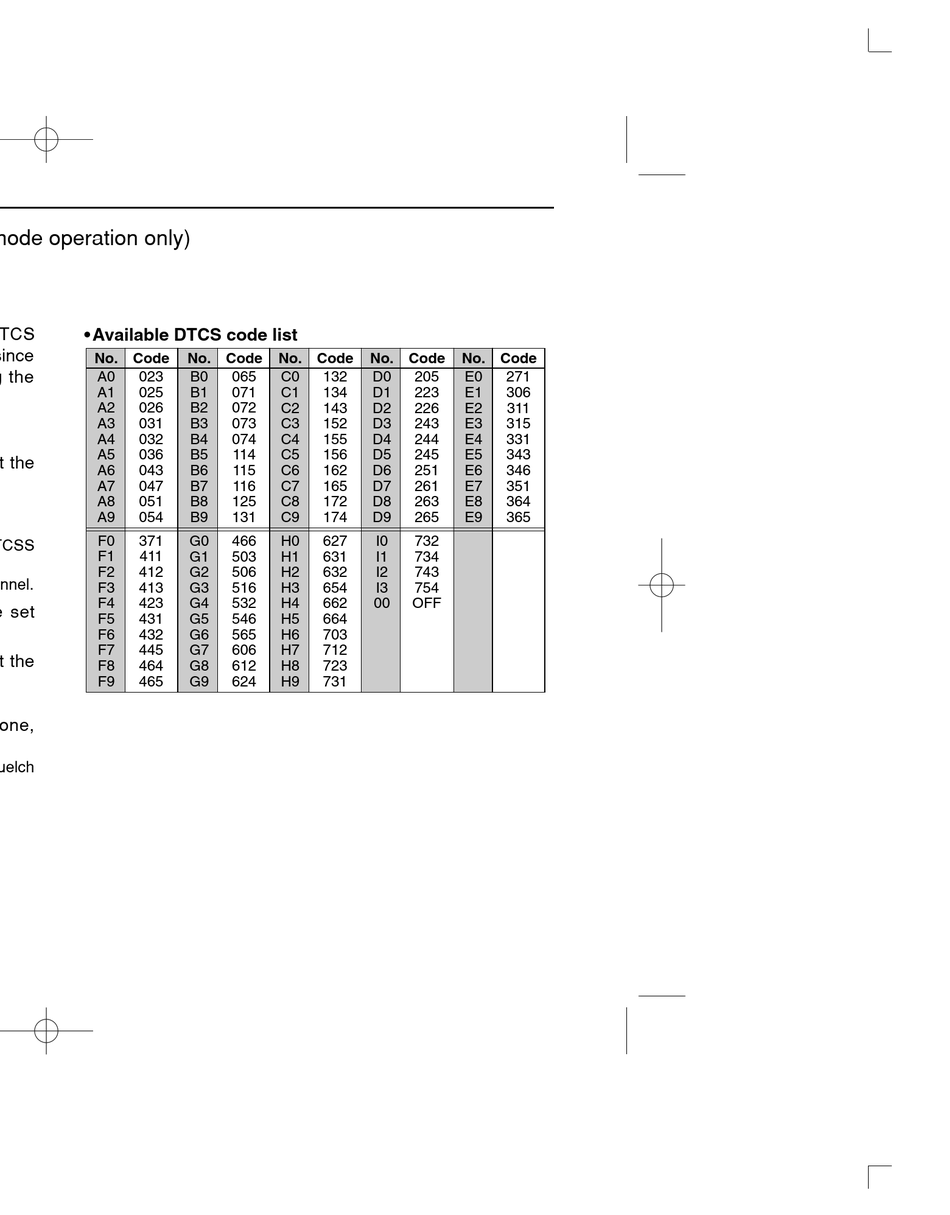

• Available DTCS code list
No. Code No. Code No.
A0 023 B0 065 C0
A1 025 B1 071 C1
A2 026 B2 072 C2
A3 031 B3 073 C3
A4 032 B4 074 C4
036
A5 B5 114 C5
A6 043 B6 115 C6
A7 047 B7 116 C7
A8 051 B8 125 C8
A9 054 B9 131 C9
F0 371 G0 466 H0
F1 411 G1 503 H1
F2 412 G2 506 H2
F3 413
G3 516 H3
F4 423 G4 532 H4
F5 431 G5 546 H5
F6 432 G6 565 H6
F7 445 G7 606 H7
F8 464 G8 612 H8
F9 465 G9 624 H9
Code No. Code No. Code
132 D0 205 E0 271
134 D1 223 E1 306
143 D2 226 E2 311
152 D3 243 E3 315
155 D4 244 E4 331
156 D5 245 E5 343
162 D6 251 E6 346
165 D7 261 E7 351
172 D8 263 E8 364
174 D9 265 E9 365
627 I0 732
631 I1 734
632 I2 743
654 I3 754
662 00 OFF
664
703
712
723
731
