y DEALER-PROGRAMMABLE KEYS (
The following functions are assigned to each programma-
ble key as the default.
Analog mode operation:
; S-Ring/Ringer : Push to send a Smart-Ring call.
Push and hold to send a Call-Ring.
; Zone : Push this key, then change the zone
up or down using [Side2] (CH Up)/
[Side3] (CH Down).
; A/S : Push to toggle All and Select channel
mode.
; Null : No function is assigned.
Digital mode operation:
; Call : Push to transmit the programmed
Common ID code on the selected
channel to make a group call.
; Zone : Push this key, then change the zone
up or down using [Side2] (CH Up)/
[Side3] (CH Down).
; Select : Push to display the TX status mes-
sage.
; Clear : Push to finish the conversation (send-
ing a clear down signal) and return to
standby condition.
• Desired functions can be programmed independently by your
dealer. (p. 6)

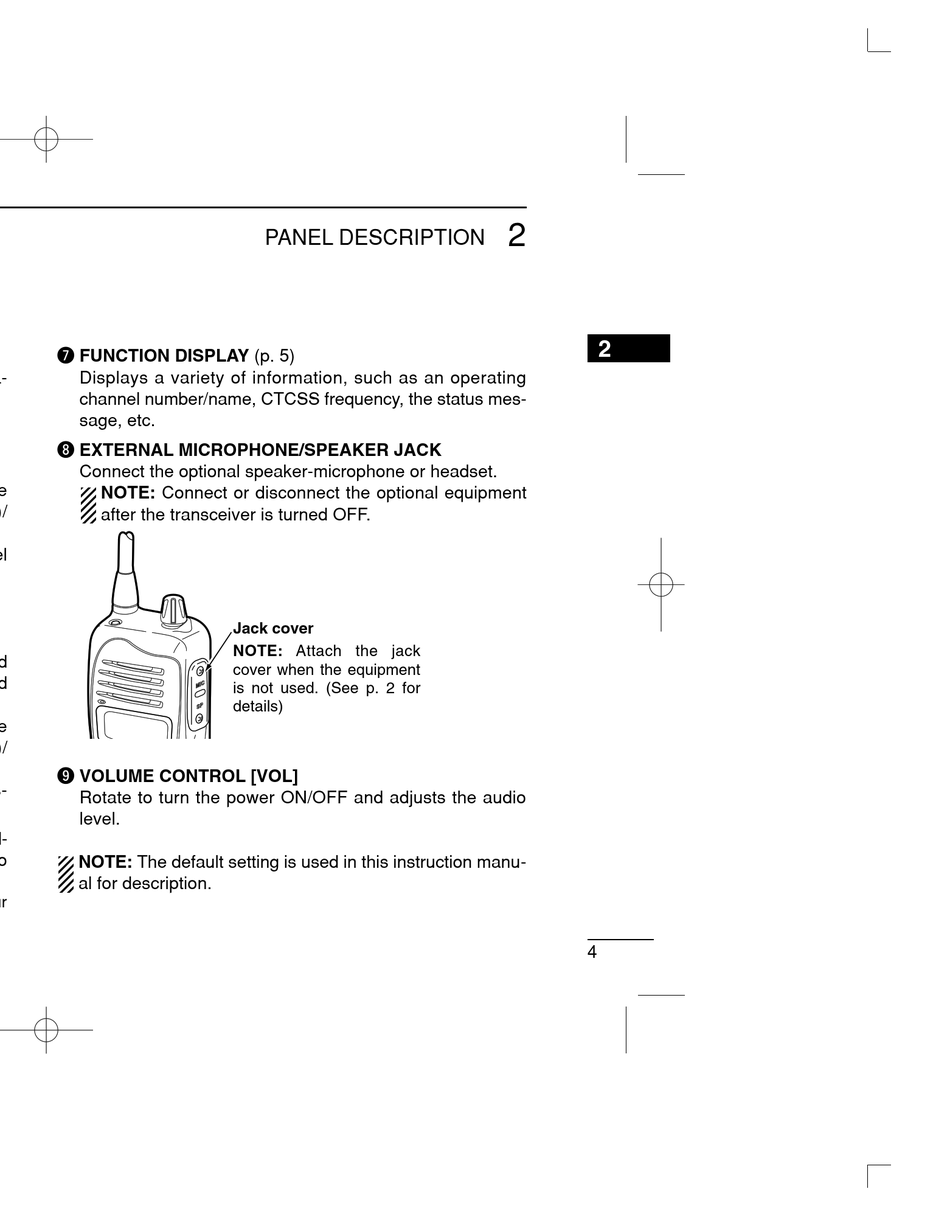

u FUNCTION DISPLAY (p. 5)
/ / / )
Displays a variety of information, such as an operating
channel number/name, CTCSS frequency, the status mes-
sage, etc.
i EXTERNAL MICROPHONE/SPEAKER JACK
Connect the optional speaker-microphone or headset.
o VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
NOTE: The default setting is used in this instruction manu-
al for description.
PANEL DESCRIPTION
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
Jack cover
NOTE: Attach the jack
cover when the equipment
is not used. (See p. 2 for
details)
