9
BATTERY CHARGING

I Battery chargers

NOTE: See each instruction manual for details of the
charger LED indication, operation, etc.
ï Rapid charging with the BC-160
The BC-160 provides rapid charging of optional Li-Ion battery
packs.
• An AC adapter (may be supplied with BC-160 depending on
version) or the DC power cable (OPC-515L/CP-17L) is addi-
tionally required.
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
31
Battery Transceiver
AC adapter
(Not supplied with pack
Turn power OFF
some versions.)

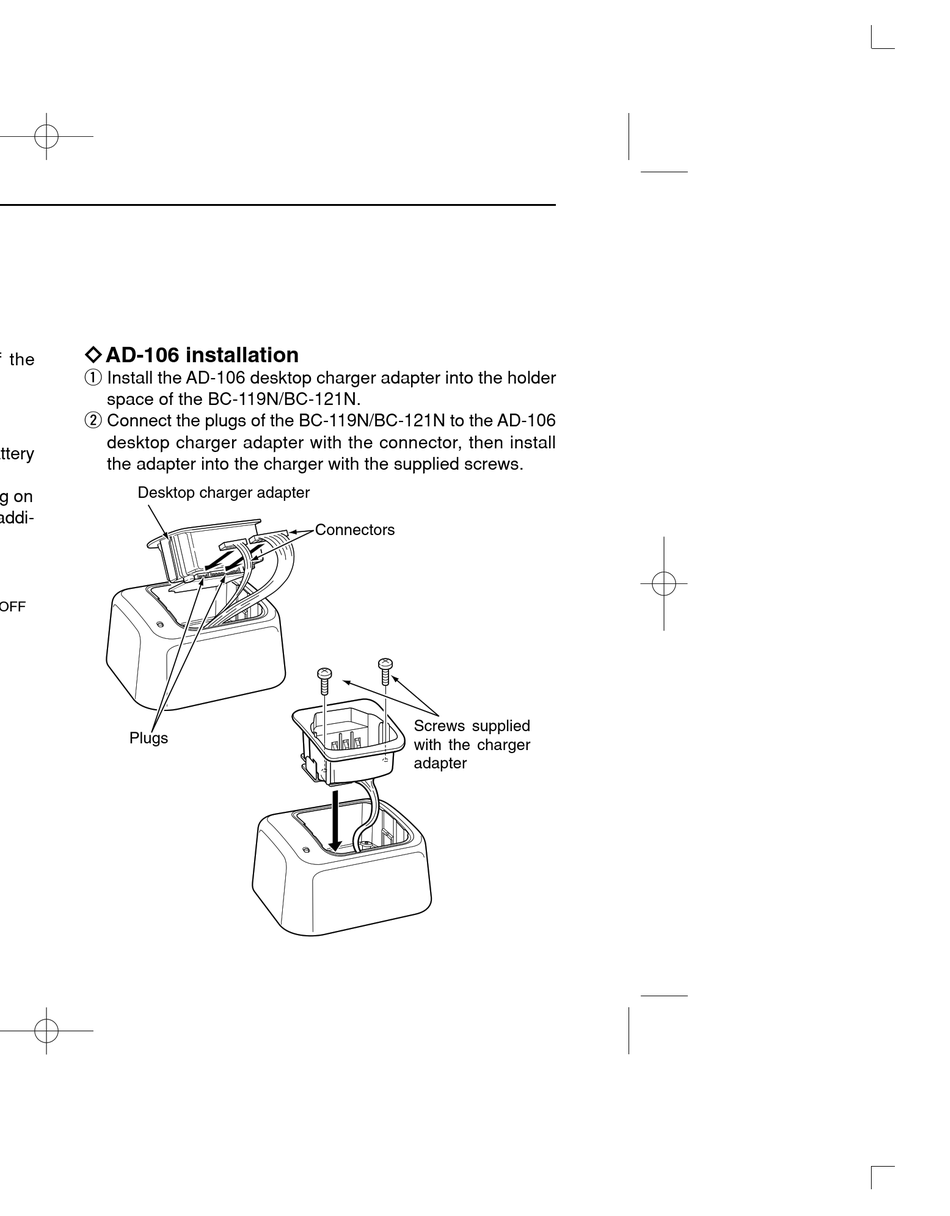

ï AD-106 installation
q Install the AD-106 desktop charger adapter into the holder
space of the BC-119N/BC-121N.
w Connect the plugs of the BC-119N/BC-121N to the AD-106
desktop charger adapter with the connector, then install
the adapter into the charger with the supplied screws.
Desktop charger adapter
Plugs
Connectors
Screws supplied
with the charger
adapter
