ACCESSORIES

Battery pack

Belt clip

Jack cover

(with screws)

Battery charger

AC adapter

(for the battery charger)

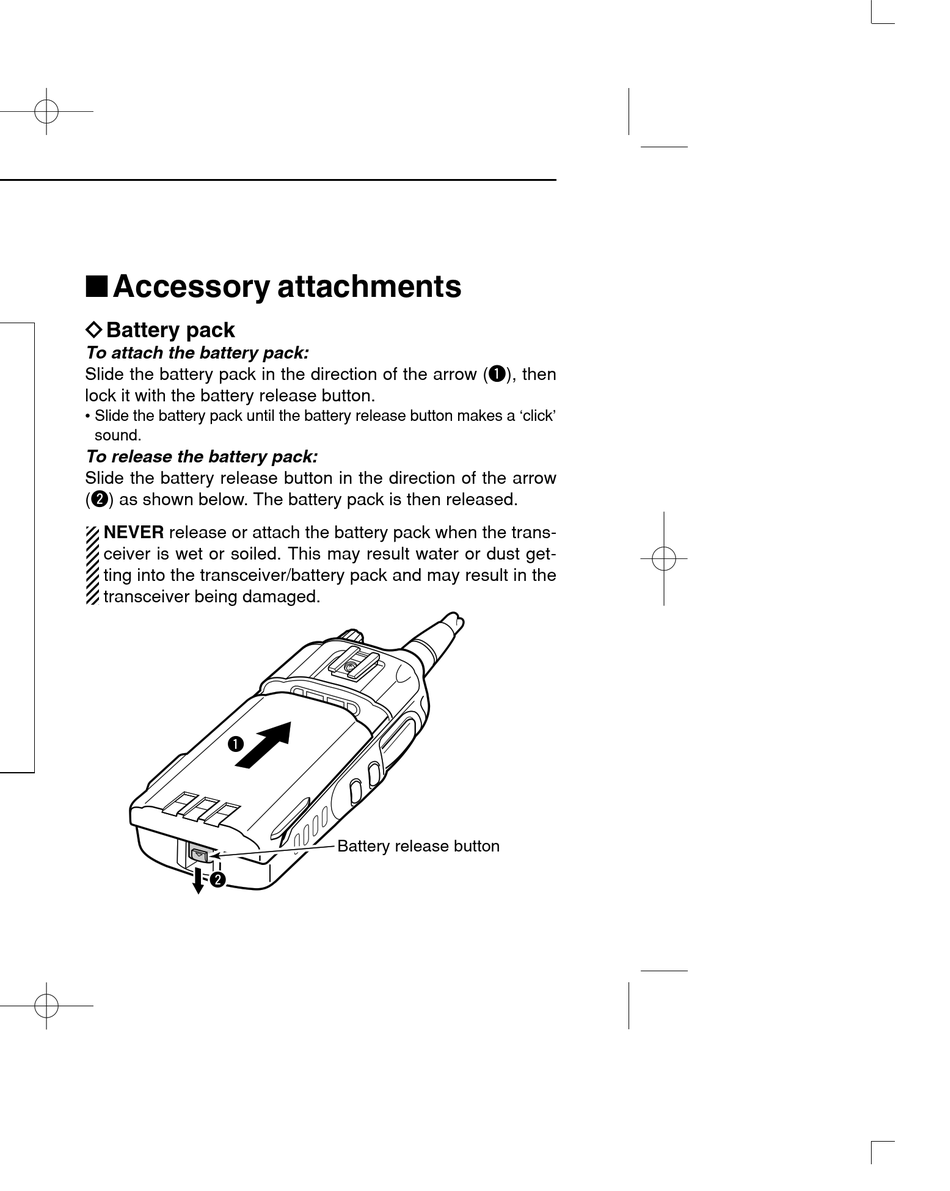

ï Battery pack

To attach the battery pack:

Slide the battery pack in the direction of the arrow (q), then

lock it with the battery release button.

• Slide the battery pack until the battery release button makes a 'click'

sound.

To release the battery pack:

Slide the battery release button in the direction of the arrow

(w) as shown below. The battery pack is then released.

NEVER release or attach the battery pack when the trans-

ceiver is wet or soiled. This may result water or dust get-

ting into the transceiver/battery pack and may result in the

transceiver being damaged.

Battery release button
