I Function display

q w e r t y
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
➥Indicates relative signal strength level.
➥Does not appear when the transceiver is out of the ser-
vice area when operating on the PassPort system.
r LOW POWER INDICATOR
Appears when low output power is selected.
t MONITOR SWITCH INDICATOR
Appears when the monitor switch is pushed.
y COMPANDER INDICATOR
Appears when the compander function is activated.
u i o
!0

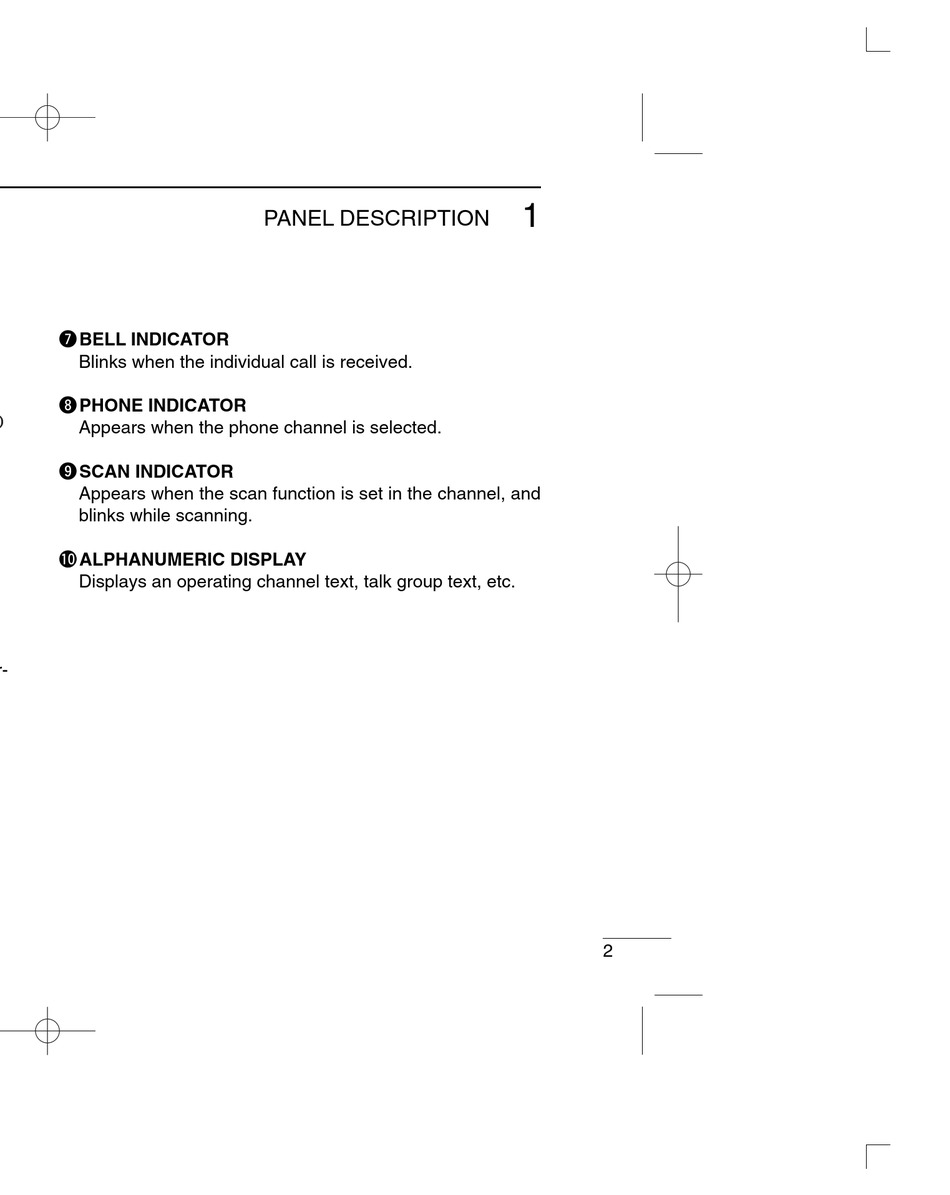

PANEL DESCRIPTION

u BELL INDICATOR
Blinks when the individual call is received.
i PHONE INDICATOR
Appears when the phone channel is selected.
o SCAN INDICATOR
Appears when the scan function is set in the channel, and
blinks while scanning.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel text, talk group text, etc.
