1

PANEL DESCRIPTION

I Front panel

q w
u y
q AF VOLUME CONTROL KNOB
Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w LEFT UP/DOWN [∫ ∫ ]/[√ √ ] KEYS
Push to select the talk group on the LTR or PassPort sys-
tem.
e FUNCTION DISPLAY
Displays a variety of information, such as an operating
channel text, talk group text.
NOTE: The above functions depend on pre-programming.
r RIGHT UP/DOWN [
➥Push to select the operating system.
➥Push [
] key to send the most recently transmitted
DTMF code number during transmitting.
1
e r
t
]/[ ] KEYS

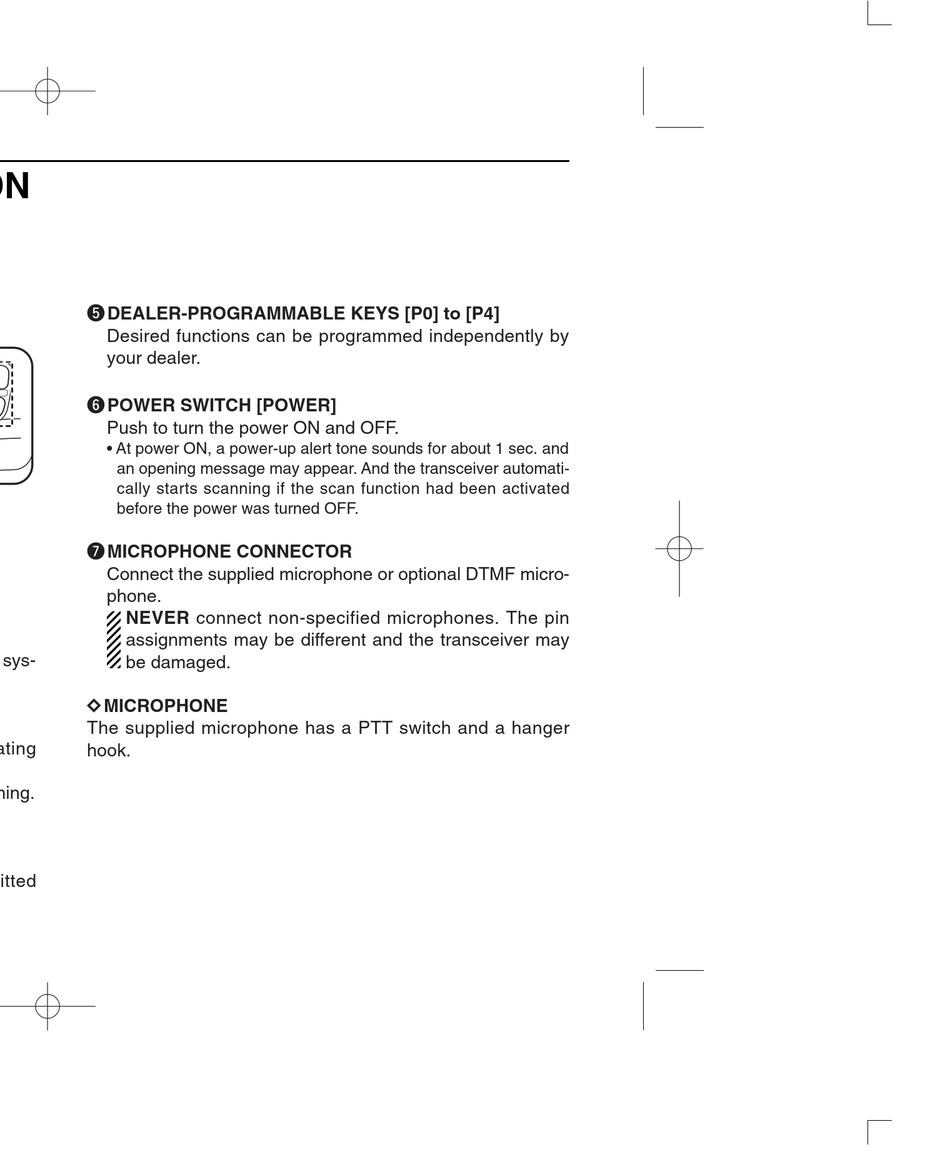

t DEALER-PROGRAMMABLE KEYS [P0] to [P4]
Desired functions can be programmed independently by
your dealer.
y POWER SWITCH [POWER]
Push to turn the power ON and OFF.
• At power ON, a power-up alert tone sounds for about 1 sec. and
an opening message may appear. And the transceiver automati-
cally starts scanning if the scan function had been activated
before the power was turned OFF.
u MICROPHONE CONNECTOR
Connect the supplied microphone or optional DTMF micro-
phone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D D MICROPHONE
The supplied microphone has a PTT switch and a hanger
hook.
