q MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle's
ground.
w ANTENNA CONNECTOR
Connects to an antenna. Ask your dealer about antenna
selection and placement.
e DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polarities.
NEVER
connect to a 24 V battery. This could damage the
transceiver.
r OPTIONAL CABLE (OPC-617)
Connect an external modem unit, LCD backlight control,
etc.
t EXTERNAL SPEAKER JACK
Connect a 4–8 Ω external speaker, if desired.
CONNECTION AND MAINTENANCE

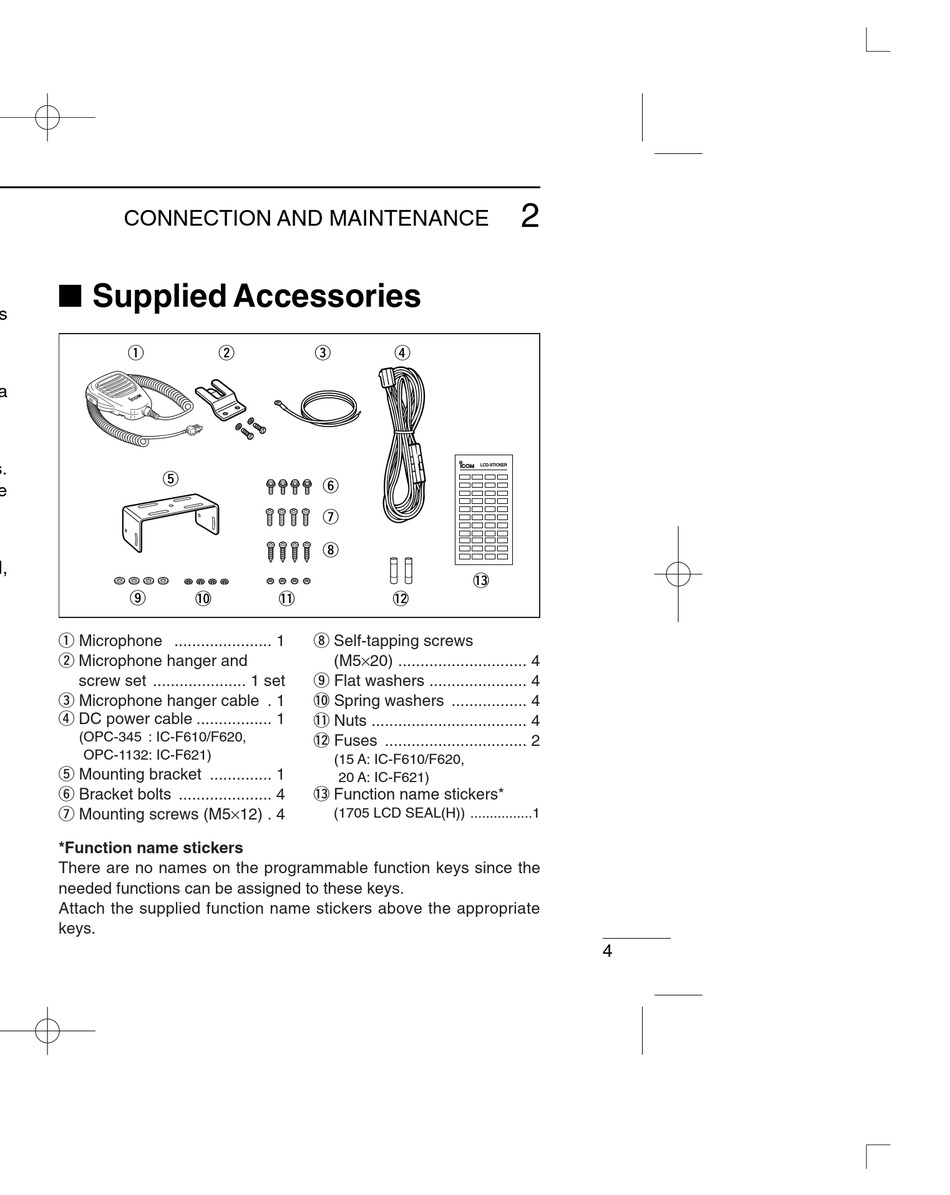

I Supplied Accessories

q w
t
o !0 !1
q Microphone ...................... 1
w Microphone hanger and
screw set ..................... 1 set
e Microphone hanger cable . 1
r DC power cable ................. 1
(OPC-345 : IC-F610/F620,
OPC-1132: IC-F621)
t Mounting bracket .............. 1
y Bracket bolts ..................... 4
u Mounting screws (M5×12) . 4
*Function name stickers
There are no names on the programmable function keys since the
needed functions can be assigned to these keys.
Attach the supplied function name stickers above the appropriate
keys.
2
e r
LCD-STICKER
y
u
i
!3
!2
i Self-tapping screws
(M5×20) ............................. 4
o Flat washers ...................... 4
!0 Spring washers ................. 4
!1 Nuts ................................... 4
!2 Fuses ................................ 2
(15 A: IC-F610/F620,
20 A: IC-F621)
!3 Function name stickers*
(1705 LCD SEAL(H)) ................1
