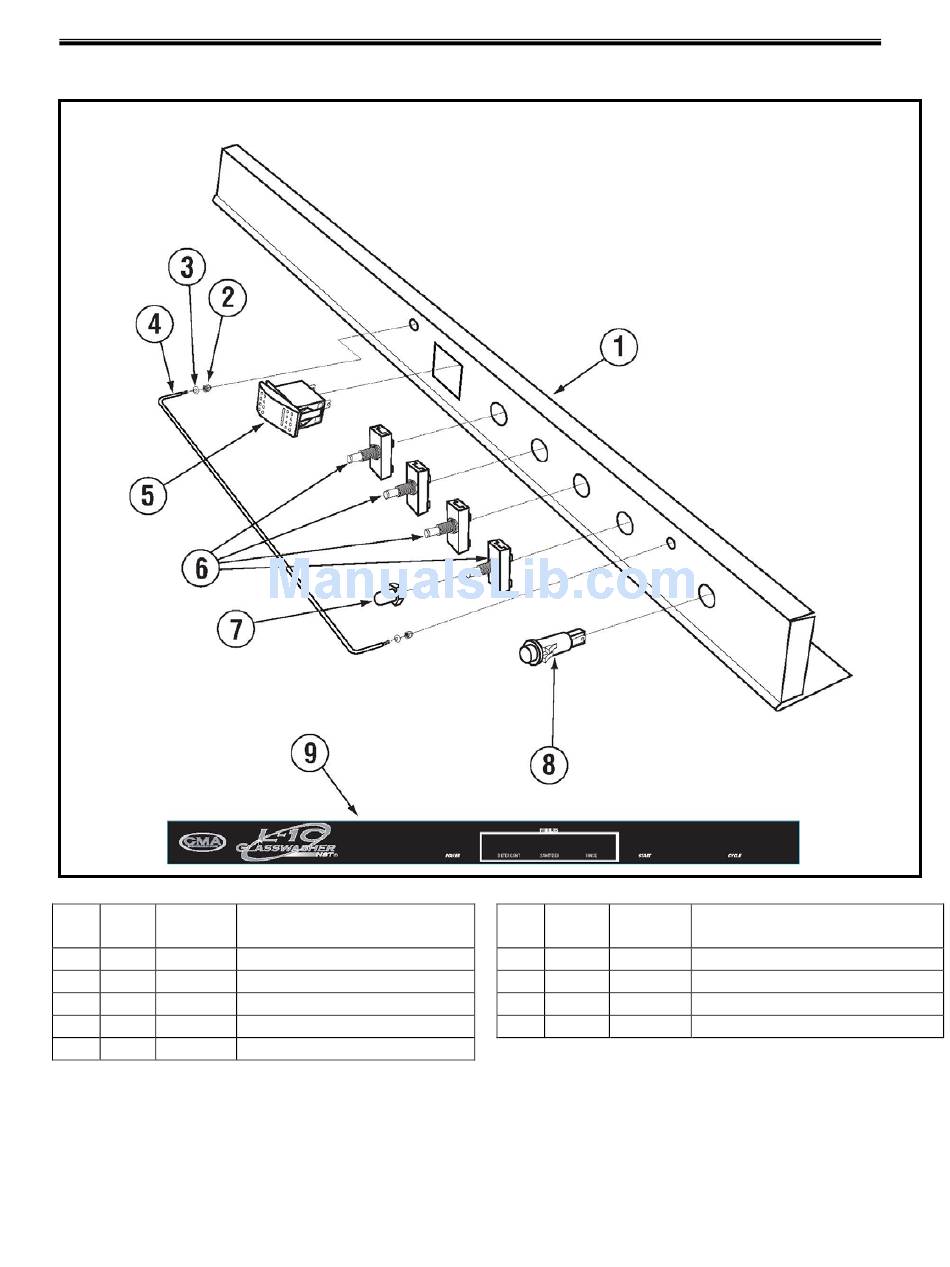

1.3.7. Control Panel
ITEM
NO.
P/N
NO.
REQ'D
1
1
05960.00
2
2
03801.00
3
2
04806.00
4
1
03485.00
5
1
15524.00
MODEL L-1C PARTS MANUAL Rev. 1.00
DESCRIPTION
L1C-NST Control Panel
10-32 Lock Nut
#10 Brass Washer
Switch Guard
Power Rocker Switch Red 115V
ITEM
NO.
P/N
NO.
REQ'D
6
4
03475.00
7
4
03476.00
8
1
00406.00
9
1
06231.73
Parts Manual
DESCRIPTION
Toggle Switch DPDT 16A, 2 pos
Rubber Boot
Control Box Light .5" D Red
L1C-NST Panel Label (2013)
