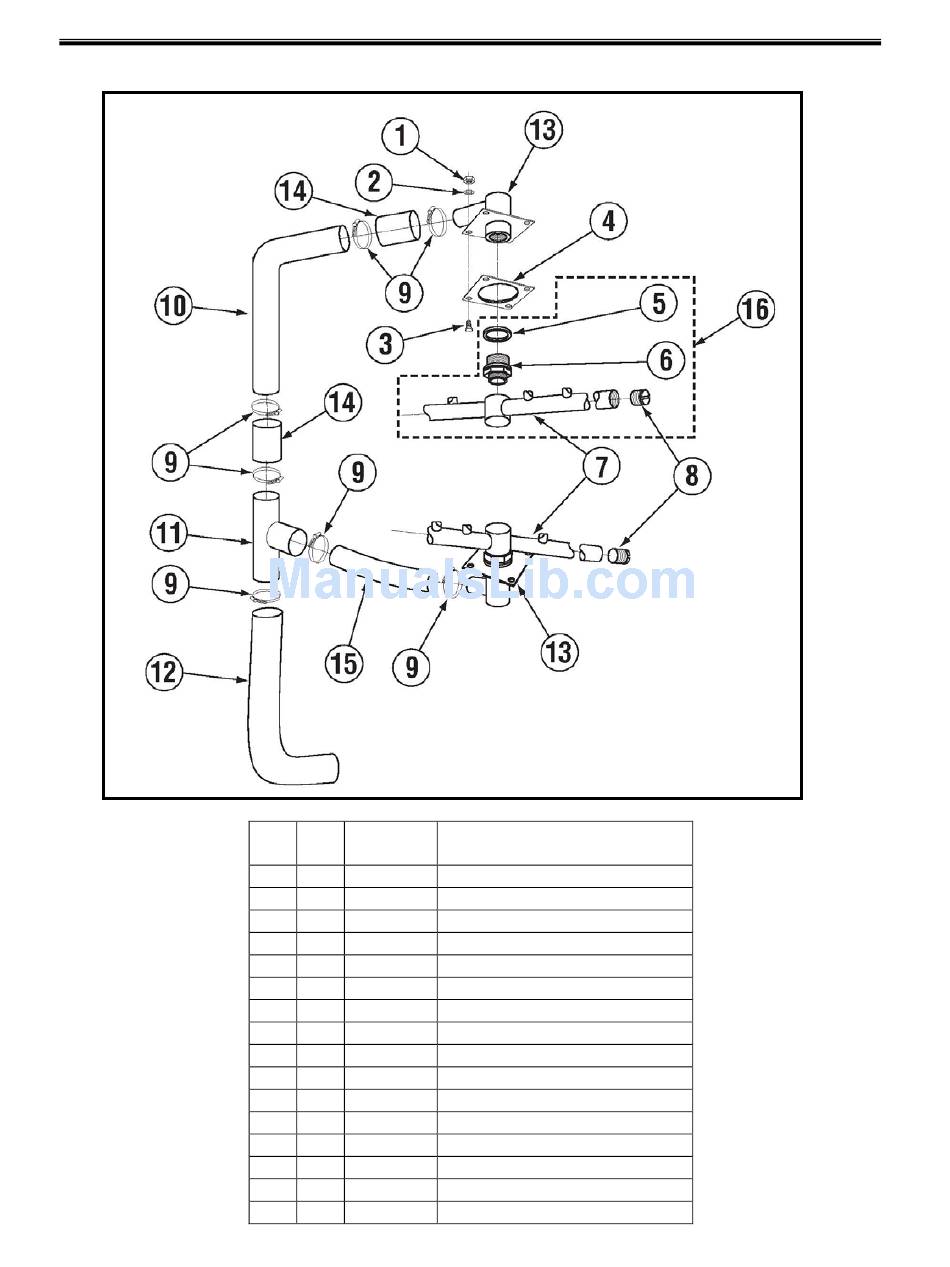

1.3.3. Spray System Assembly

MODEL L-1C PARTS MANUAL Rev. 1.00
ITEM NO.
P/N
NO. REQ'D
1 8 00912.00
2 16 00924.00
3 8 00929.00
4 2 04306.00
5 2 04305.10
6 2 04303.00
7 2 00304.04
8 4 00308.50
9 6 03101.00
10 Ft 05939.50
11 1 05936.00
12 1 13109.00
13 2 05930.00
14 2 03108.67
15 2 03108.60
16 1 00307.10
DESCRIPTION
1/4"-20 Nylon Lock Nut
1/4" SS Washer
1/4"-20 x 3/4" Truss Head Bolt
Square Manifold Gasket
Silicon Gasket
L-1C Spray Arm Bearing
Spray Arm
Spray Arm End Plug
Hose Clamp #16 1"
L-1C Manifold Pipe SS
Energy Mizer L-1C Tee 1"X1"X1"
Drain Hose 90Deg 1"
Energy Mizer L-1C Spray Base
Transfer Hose 1" Reinforced 2"
Transfer Hose 1" Reinforced
Spray Arm Assy L1X/GL-X
