3. Operation

3.1.

Control Panel And Relative Symbols.

The purpose of these specifications is to describe card operation.

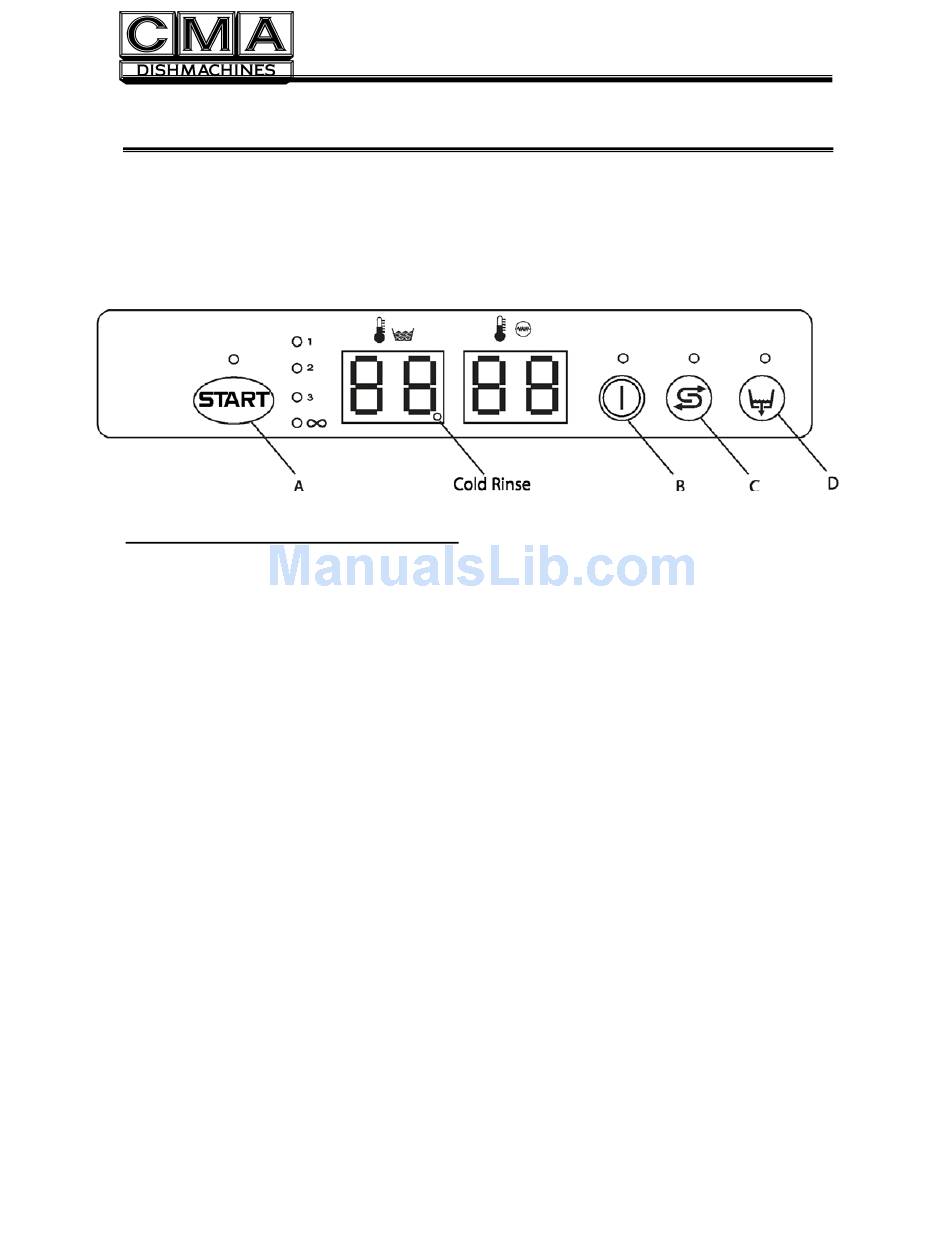

To simplify the description of the various functions, the layout of the control panel and the various
functions assumed by the keys according to the function mode is given below.
Functions of keys during normal operation:
A: Cycle Start - Cycle Stop - Cycle Selection 1-2-3 - Self-cleaning;
B: On/Off (Stand-By) - Cycle Stop - Alarm Reset;
C: Regeneration (optional) - Cold rinse selection (when provided for);
D: Drain (when provided for).
3.2.

Startup Procedures

•
Insert the overflow tube in the special seat inside the wash tank.
•
Check that the suction filter inside the wash tank is correctly fitted in its seat.
The filter must be cleaned after every 20 wash cycles and whenever necessary.
DO NOT use the appliance without the filters
•
Close the dishwasher door.
•
Insert the rinse aid dispenser line in the liquid container and check for the
quantity of the additive.
•
Turn on main water valve.
•
Turn on the appliance by pressing push button (B) on the control panel.
The green LED lights up. The machine will automatically fill the water tank to the proper level tank,
and then the heating phase begins. Indicator comes on when the water temperature is reached.
•
Insert the rack filled with dishes to wash. The plates must be correctly placed in the rack.
•
Select the wash cycle required by pressing button (A) keeping it pressed for
more than 5 seconds and release when the LED of the required cycle lights up. The green
LED of the selected cycle lights up (1, 2, 3).
•
Start the cycle by pressing the key (A) for not more than 1sec.Operation is signaled by the
indicator of the selected cycle flashing. At the end of the cycle the indicator stops flashing
