Service Parts Installation - Fill/Drain TImer Conversion - P/N 2103.43
Fill/Drain Timer Conversion - P/N 2103.43

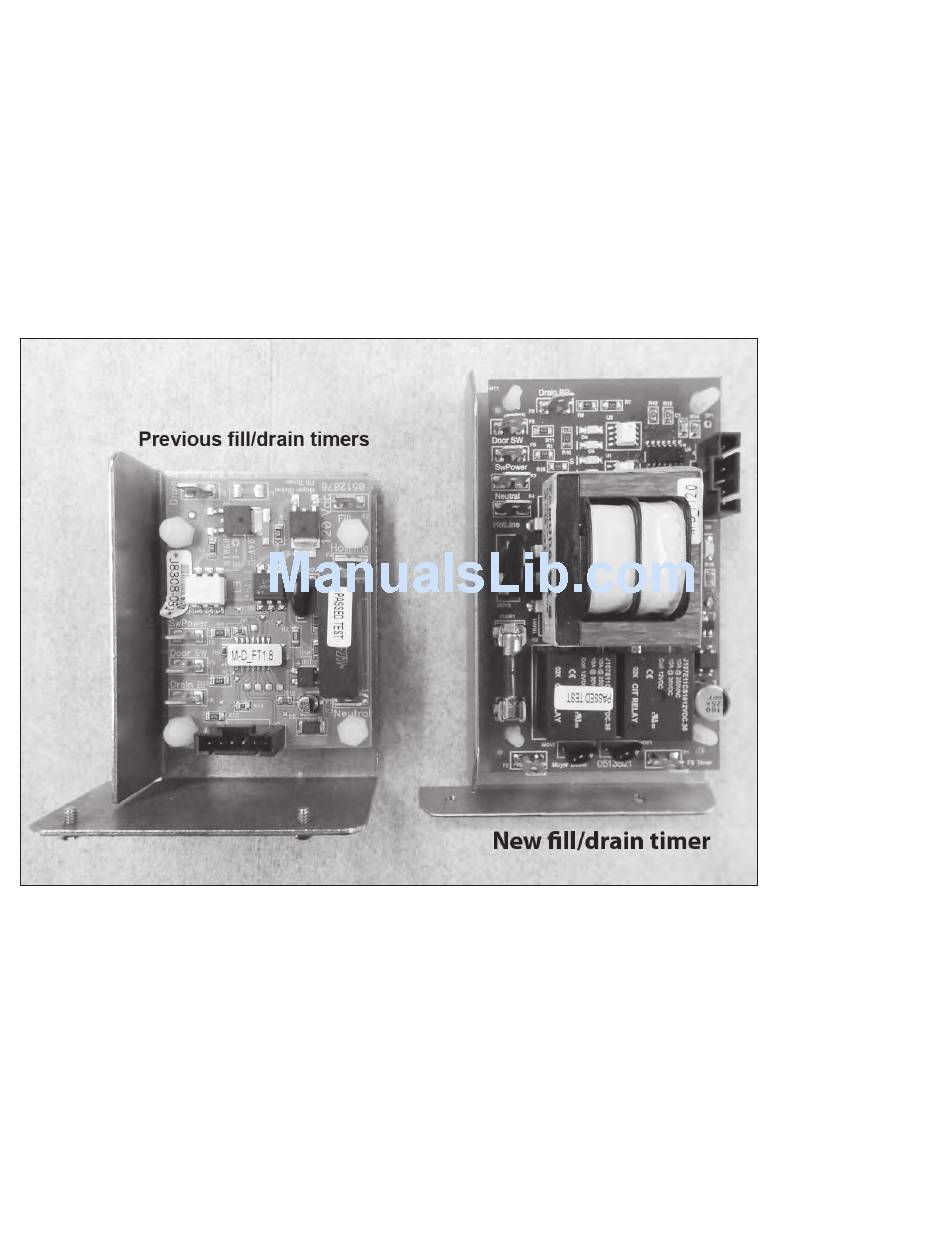

All S/N's have a new fill/drain timer, P/N 2103.43. This new timer is slightly
larger than previous timers but it still mounts in the same location as previous timers.
The only function of the fill/drain timer is to fill the machine at the beginning of the day and to drain the
machine at the end of the day. Normal wash and final rinse cycles are controlled by the mechanical
cam timer assembly.
Refer to the illustrations below and on the following pages for installation instructions.
