CMA Dishmachines UC65e Service Replacement Parts

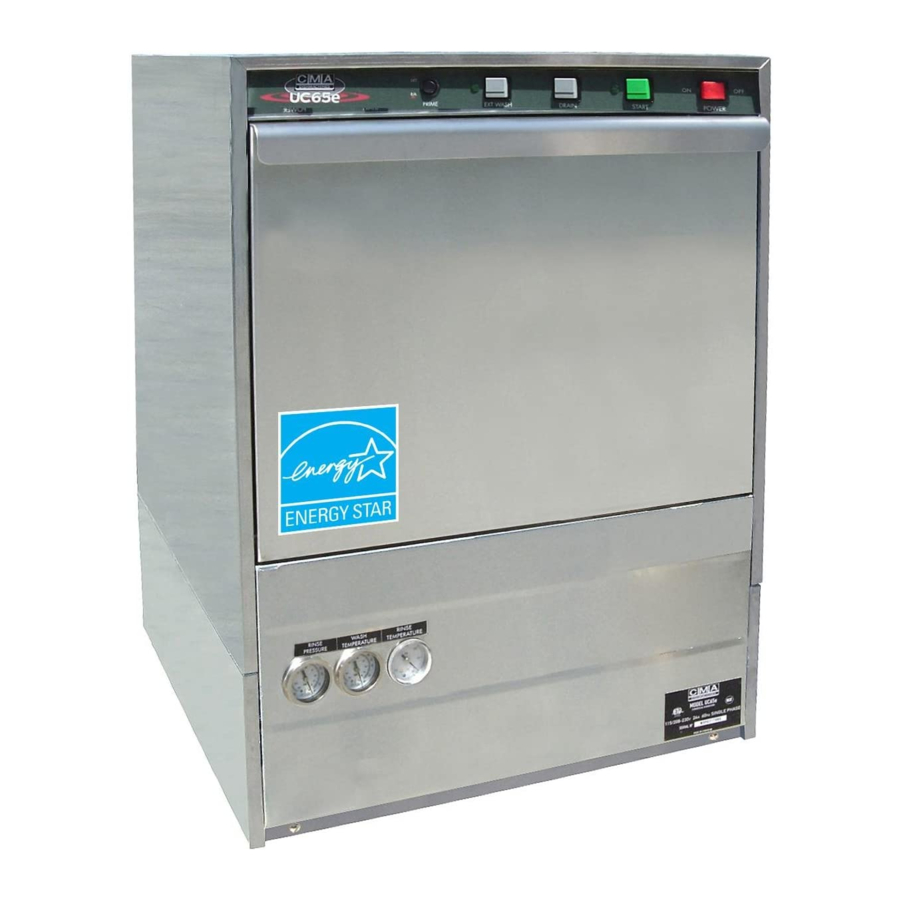

Undercounter high temperature dishwasher
Hide thumbs Also See for UC65e:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
CMA Dishmachines
12700 Knott Avenue
Garden Grove, CA 92841
Toll Free: 1 (800) 854-6417
Fax:
1 (714) 895-2141
placement Parts
Service Re
UC65e
CMA Dishmachines
12700 Knott Avenue
Garden Grove, CA 92841
Toll Free:
1- (800) 854-6417
Fax:
1- (714) 895-2141
Undercounter
High Temperature
Dishwasher
Models:
UC65e
Issue Date: 6.25.13
Manual P/N
For machines beginning with S/N W090217876 and above
Machine Serial No.
0512865 rev. C
Printed in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC65e and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines UC65e

Summary of Contents for CMA Dishmachines UC65e

  • Page 1 CMA Dishmachines 12700 Knott Avenue Garden Grove, CA 92841 Toll Free: 1- (800) 854-6417 Fax: 1- (714) 895-2141 placement Parts Service Re Undercounter High Temperature Dishwasher Models: UC65e UC65e Machine Serial No. Issue Date: 6.25.13 Manual P/N 0512865 rev. C...
  • Page 2 For future reference, record your dishwasher information in the box below. Model Number__________________________ Serial Number_______________________ Voltage________________Hertz_____________ Phase__________________ Service Agent __________________________________ Tel:______________________ Parts Distributor _________________________________ Tel:______________________ National Service Department CMA Dishmachines 12700 Knott Avenue Garden Grove, CA 92841 Toll-free: 1 (800) 854-6417 Fax: 1 (714) 895-2141 ATTENTION: The model no., serial no., voltage, Hz...
  • Page 3 We reserve the right to make changes to these instructions without notice and without incurring any liability by making the changes.. • Equipment owners may request a revised manual, at no charge, by calling CMA Dishmachines at 1 (800) 854-6417. Revision Revised Serial Number...
  • Page 4 Model Description Model Description UC65e High temperature hot water sanitizing dishwasher with built-in 40°F/22°C rise booster heater. 208-240VAC/60/1...
  • Page 5 Table of Contents Table of Contents Model UC65e Undercounter Dishwasher Revision History........................i Model Descriptions ......................ii ............... Service Replacement Parts...

  • Page 6: Table Of Contents

    Service Replacement Parts Service Replacement Parts Illustrations Page Wash Pump/Motor Assembly ..........................Booster Assembly ..............................Electrical Panel and Timer Assembly ........................Control Panel Assembly ............................Upper Final Rinse Piping Assembly ........................Wash and Rinse Spray Arm Assemblies ........................ Drain Pump and Lower Hose Assemblies ......................Wash Tank Heater and Drain Assemblies ......................

  • Page 7: Wash Pump/Motor Assembly

    Wash Pump/Motor Assembly...
  • Page 8 Wash Pump/Motor Assembly Item Part Description Qty. 2103.01 SCREW, M4, PHIL, PAN HD. 2103.02 IMPELLER HOUSING COVER 2103.03 NUT, M6 (left-hand threads) 0501501 WASHER, LOCK, 1/4" 2103.05 WASHER, PLAIN, M6 2103.06 IMPELLER 2103.07 SEAL 2103.30 GASKET, PUMP 2103.09 BACKPLATE, PUMP 2103.08 NUT, M4 2103.10...

  • Page 9: Booster Assembly

    Booster Assembly...
  • Page 10 Booster Assembly Item Part Description Qty. 2103.12 HEATER, BOOSTER 4kW, 208V, 40°F RISE (Does not include gasket) 2103.13 HEATER, BOOSTER 6kW, 208V, 70°F RISE (Does not include gasket) 2103.14 GASKET, BOOSTER HEATER 2103.15 THERMOSTAT, CONTROL 195°F (Prior to S/N W120631743) 109069 THERMOSTAT, CONTROL 110-195°F (Beginning with S/N W120631743)

  • Page 11: Electrical Panel And Timer Assembly

    Electrical Panel and Timer Assembly Item 10, Timer Assembly includes: Items 12 and 13...
  • Page 12 Electrical Panel and Timer Assembly Item Part Description Qty. 2103.29 THERMOSTAT, WASH TANK 2103.15 THERMOSTAT, CONTROL 195°F (Prior to S/N W120631743) 109069 THERMOSTAT, CONTROL 110-195°F (Beginning with S/N W120631743) 0313481 BRACKET, THERMOSTAT (Use with Item 3 only) 2103.31 SWITCH, 3-POSITION, TOGGLE 2103.34 SCREW, NIBS RH 6-32 X 3/16"...

  • Page 13: Control Panel Assembly

    Control Panel Assembly...
  • Page 14 Control Panel Assembly Item Part Description Qty. 2103.42 PANEL, FACIA, UC65e 2103.44 LABEL, FACIA, UC65e 2103.50 SWITCH, ON-OFF 2103.51 CONTACT, MOMENTARY, N.O. 2103.52 HOUSING, SWITCH 2103.53 BUTTON, SWITCH (GREEN) 2103.54 BUTTON, SWITCH (GREY) 2103.55 LIGHT, INDICATOR LED, 125VAC (GREEN) 2103.56 CONTACT, SWITCH (EXTENDED WASH) 2103.57...

  • Page 15: Upper Final Rinse Piping Assembly

    Upper Final Rinse Piping Assembly...
  • Page 16 Upper Final Rinse Piping Assembly Item Part Description Qty. 2103.60 HOSE, RUBBER 1/2ID X .84OD 2103.21 CLAMP, SS GEAR-MIN. 5/16-MAX.7/8 2103.62 FITT COMP 1/4OD X 1/8MPT ELL J (Prior to S/N W120631743) 2103.26 PLUG, 1/8 HEX COUNTERSUNK (Beginning with S/N W120631743) 0513110 MANIFOLD, RINSE 2103.65 INJECTOR FITTING 2103.66...

  • Page 17: Wash And Rinse Spray Arm Assemblies

    Wash and Rinse Spray Arm Assemblies...
  • Page 18 Wash and Rinse Spray Arm Assemblies Item Part Description Qty. 2103.75 WASHER, 17/64 id X 9/16" OD SST 2103.76 NUT, HEX 1/40-20 NYLON INSERT SST 2103.77 HUB, UPPER WASH ARM 2103.78 WASHER, PACKING 2103.79 SCREW, RETAINING 2103.80 CLAMP, HOSE GEAR 1-1/2" SST 0512120 HOSE, UPPER WASH ARM 2103.82...

  • Page 19: Drain Pump And Lower Hose Assemblies

    Drain Pump and Lower Hose Assembly From Final Rinse Manifold To upper washarm hub...
  • Page 20 Drain Pump and Lower Hose Assembly Item Part Description Qty. 02104.00 HOSE, FILL 1/2" X 7' C/W 3/4" FNPS 2103.16 BOLT, HEX FLANGE, 1/4-20 X 3/8" SST 2103.18 HOSE, BOOSTER FILL, 1/2" X 1' 2103.17 CLAMP, HOSE GEAR-TYPE 5/16" 2104.04 CLAMP, HOSE GEAR-TYPE, 1", SST 2104.05 HOSE, DRAIN PUMP SUCTION...

  • Page 21: Wash Tank Heater And Drain Assemblies

    Wash Tank Heater and Drain Assembly...
  • Page 22 Wash Tank Heater and Drain Assembly Item Part Description Qty. 2104.17 GASKET, DOOR 2104.18 HEATER, WASH TANK, 2KW, 240VAC 8103.04 WASHER, SPLIT LOCK 1/4" SST 2103.67 NUT, HEX 1/4-20 SST 2104.21 O-RING 2104.22 ADAPTER, THERMOSTAT 2103.28 BUSHING, THERMOSTAT 2103.29 THERMOSTAT, WASH TANK 2104.25 ADAPTER, THERMOMETER 2103.25...

  • Page 23: Fill Solenoid Valve Assembly

    Fill Solenoid Valve Assembly...
  • Page 24 VALVE, SOLENOID, DEMA 1/2" 115VAC/60/1 (Includes Items 1a) 03604.30 KIT, REPAIR SOLENOID VALVE, DEMA 1/2" 03604.50 FITTING, FLOW DISC, DEMA 03604.10 WASHER, FLOW, DEMA 2103.73 FITTING, BARB HOSE 2104.45 BRACKET, VALVE, UC65E 2103.16 BOLT, HEX FLANGE 1/4-20 X 3/8" SST...

  • Page 25: Detergent Pump Assembly

    Detergent Pump Assembly...
  • Page 26 Detergent Pump Assembly Item Part Description Qty. 2104.47 STRAINER 2104.48 TUBE,1/2IDX11-7/8LG. STIFFENER 2104.49 LABEL, DETERGENT 2104.37 HOSE, 1/4ID X 3/8OD PVC 2104.51 TIE, NYLON 4" 2104.52 ELBOW, 1/4 HOSE BARB 00435.10 TUBE, SQUEEZE PUMP 00911.00 SCREW 00418.00 COVER, PUMP 00419.00 ASSEMBLY, ROLLER 00423.00 ROLLER...

  • Page 27: Rinse-Aid Pump Assembly

    Rinse-Aid Pump Assembly...
  • Page 28 Rinse-Aid Pump Assembly Item Part Description Qty. 2104.47 STRAINER 2104.48 TUBE,1/2ID X 11-7/8LG. STIFFENER 2104.49 LABEL, RINSE AID 2104.50 TUBING, 1/8" OD X 1/16 ID" 2104.51 TIE, CABLE 4" 00836.00 TUBE, SQUEEZE PUMP 00911.00 SCREW 00418.00 COVER, PUMP 00419.00 ASSEMBLY, ROLLER 00423.00 ROLLER 00422.00...

  • Page 29: Panel Assembly

    Panel Assembly...
  • Page 30 LABEL, GUAGE 2104.63 GAUGE, PRESSURE 0-60PSI 2103.25 THERMOMETER, 2" DIAL, 7' CAPILLARY 2104.65 SCREW, 1/4-20 X 5/8" TRUSS HD. PHIL. SST 2104.66 PANEL, FRONT UC65e 2104.67 FOOT, ADJUSTING 2104.68 NUT, KEPS, 10-32 SST 2104.69 WRAP, OUTER PANEL 2104.70 CLAMP, DOUBLE CONDUIT 2103.39...

  • Page 31: Door Assembly

    Door Assembly...
  • Page 32 Door Assembly Item Part Description Qty. 0713141 DOOR WELDED ASSY 2104.76 ARM, DOOR SPRING 2104.77 SPRING, DOOR 2104.78 ACTUATOR, DOOR SWITCH 2103.41 SCREW, 8-32 X 3/16" PHIL. SST 0512953 SEAL, DOOR DRIP, RH 0512954 SEAL, DOOR DRIP, LH...
  • Page 33 Dish Racks, Line Strainer, PRV...
  • Page 34 Dish Racks, Line Strainer, PRV Item Part Description Qty. 2104.80 DISH RACK, FLAT-BOTTOM 2104.81 DISH RACK, PEG 2104.82 STRAINER, LINE 1/2" BRONZE (OPTIONAL) 2104.83 VALVE, PRESSURE REGULATING (PRV)
