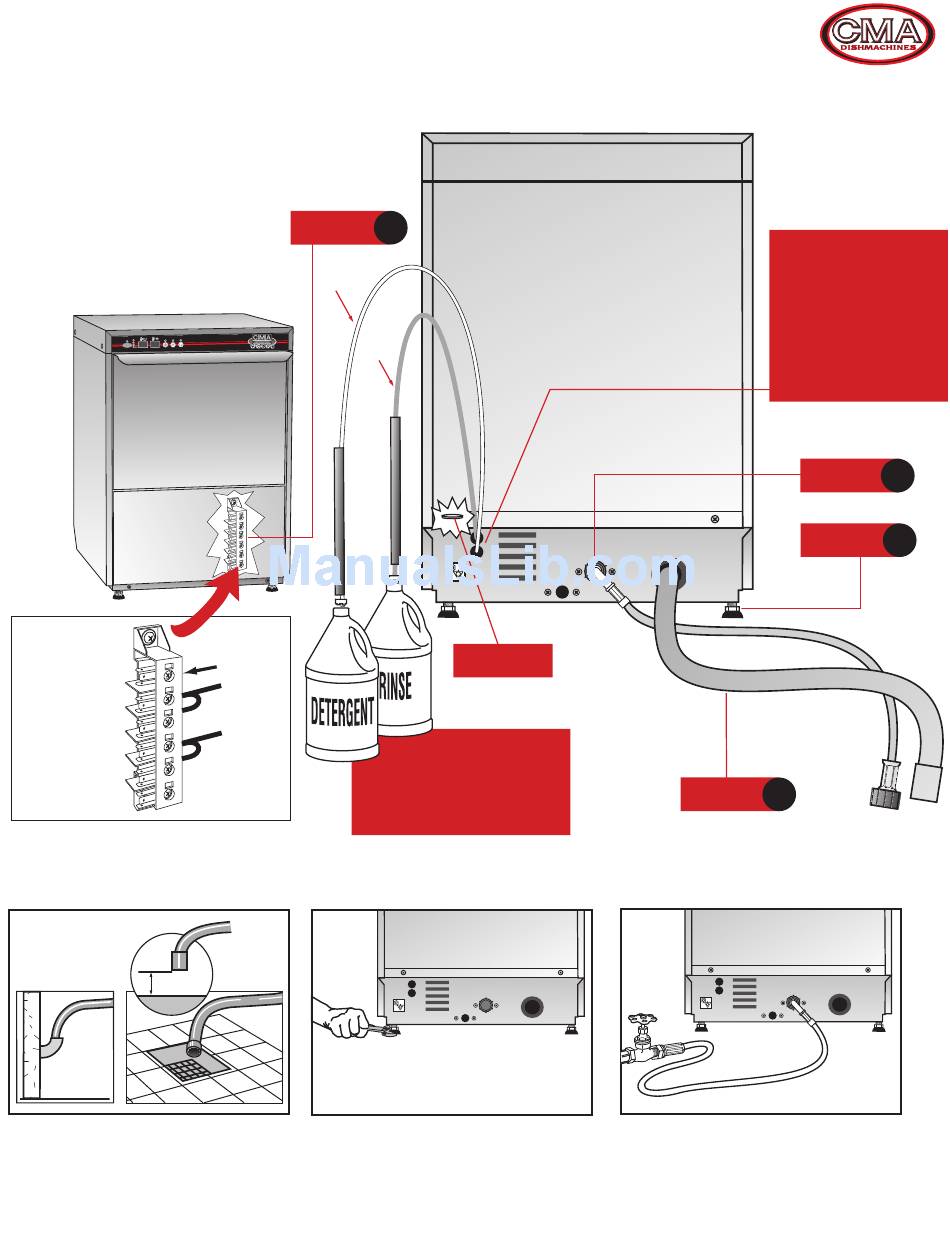

CMA Dishmachines UC60e Quick Setup Instructions

UC60e
Quick Setup
Instructions
WARNING: Electrical and plumbing
connections need to be made by a
qualified service person who will
comply with all available Federal, State
and Local Health, Electrical,Plumbing
and Safety codes.
1
2 00
00
START 3
STEP
1
208/230V
Connect Main power lines L-1 & L-2, and Ground to the
proper terminals, located on electrical block inside the
front panel. After connecting main power, make sure all
terminals, "used" and "unused" on the block, are tight.
STEP
2
1"AIR GAP
WALL DRAIN
Connect the drain hose to wall or floor drain. The
floor drain must have a 1-inch air gap between
drain hose and floor drain.
PN: 10130.27
ELECTRICAL
BLOCK
CLEAR
TUBE
GREEN
TUBE
GROUND
L-1
L-2
STEP
3
FLOOR DRAIN
Level dishmachine by adjusting "leveling legs".
Dishmachine must be level, front and back, to
ensure proper performance and prevent door leaks.
1
EQUI P
ELECTRICAL
INLET
TO PRIME CHEMICAL PUMPS
ALLOW THE DISHWASHER TO
RUN 3 TO 4 CYCLES WITH THE
CHEMICAL LINES IN THE
CONTAINERS.
EQUI P
THE GREEN AND CLEAR
CHEMICAL FEED LINES ARE
SHIPPED INSIDE THE BACK
OF THE DISHWASHER.
REMOVE THE FILTER AND
FEED THE LINES THROUGH
THE RUBBER PROTECTIVE
GROMMETS AT THE BOTTOM
REAR LEFT-HAND CORNER
OF THE DISHWASHER.
2
DRAIN
STEP
4
EQUI P
Connect dishmachine to hot water source,
recommended 140°F.
800-854-6417
4
1/2" WATER
INLET
LEVELING 3
LEGS
3-2016
