Service Parts Installation - Pressure Gauge Piping Change
Beginning with S/N W120631743, the pressure gauge tubing has been relocated
from the top right rear corner of the machine to the booster located on the base
of the machine. This change improves the operation of the final rinse pressure gauge.

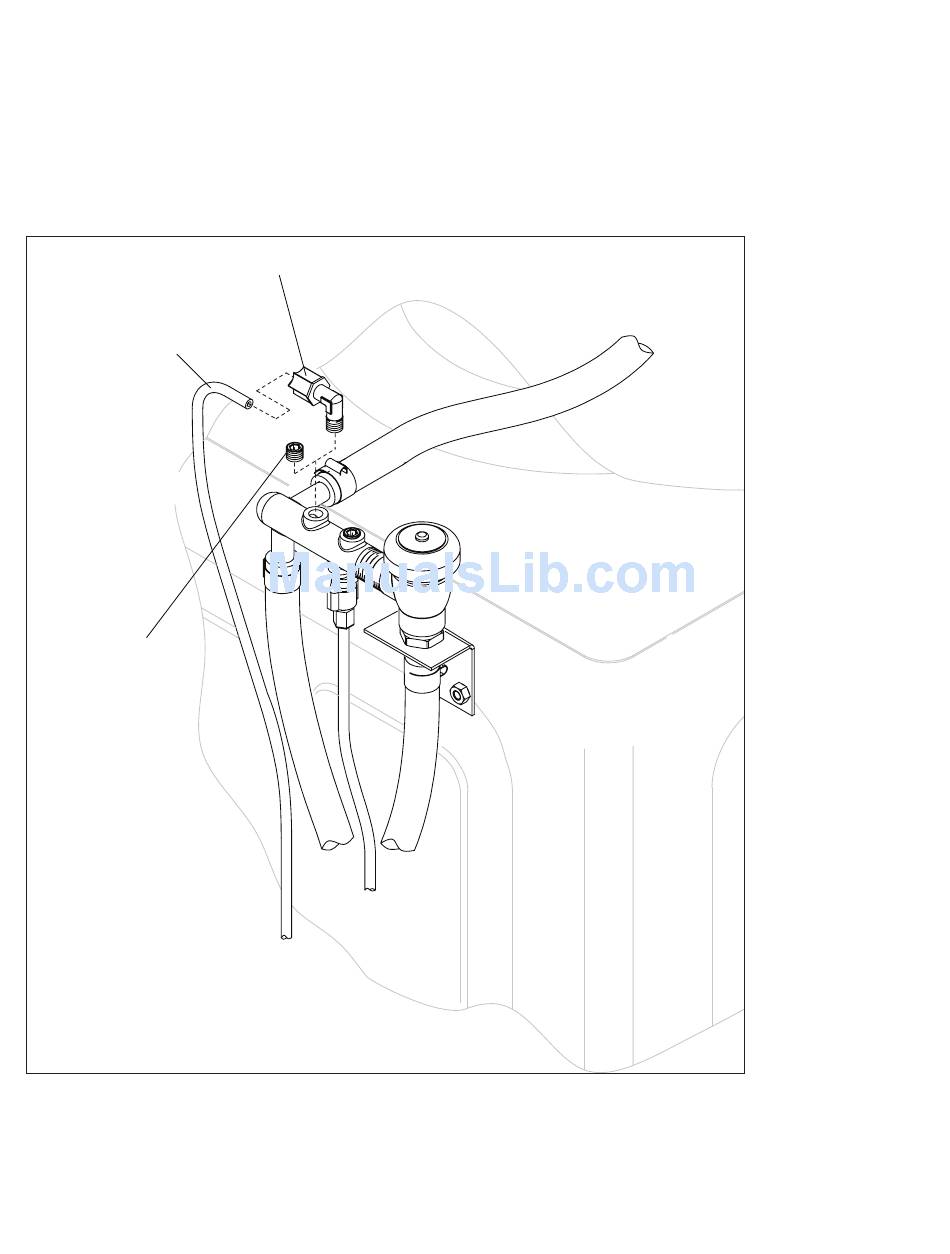

Refer to the illustrations below and on the next page for installation instructions.
Remove this connector.
Move this hose
to front of
machine near
pressure gauge.
Install this plug
where the connector
was removed.
56
Parts list is located on
pages 30-31.
