Initial Start-Up

Filling the Booster
VERIFY THE CORRECT VOLTAGE IS SUPPLIED TO THE MACHINE
Note:
The dishwasher contains a built-in booster heater that was drained prior to shipment
and must be filled with water before operating the dishwasher.

Booster Fill Switch

The booster heater is filled using the Booster Fill Switch. It is located behind the lower front access panel
and on the left-side of the bracket that holds the chemical dispensing pumps (see the photos below).
Fill the booster heater:
1. Make sure that the dishwasher power switch is OFF.
2. Remove the lower front access panel.
3. Locate the booster fill switch. It is in the left-center of the electrical component panel.
4. Make sure the Booster Fill Switch is in the middle position, (OFF).
5. Turn the water supply and the main power supply on.
DO NOT TURN THE DISHWASHER POWER SWITCH ON.

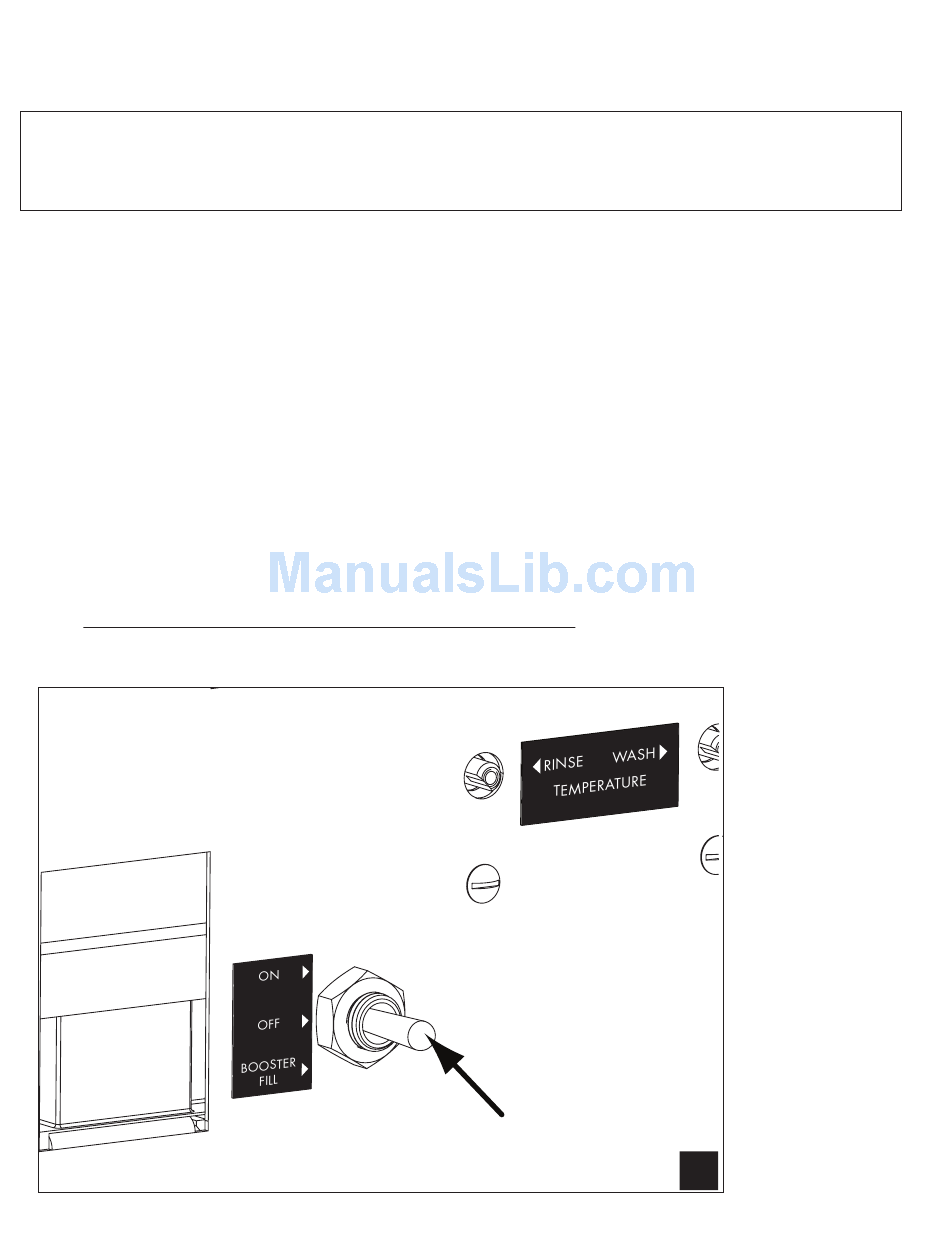

A) Identify the booster fill switch.
6
THE CORRECT SUPPLY VOLTAGE IS 115/208-240VAC/60/1.
(Refer to the diagram on page 3.)
ATTENTION
Booster Fill Switch
A
