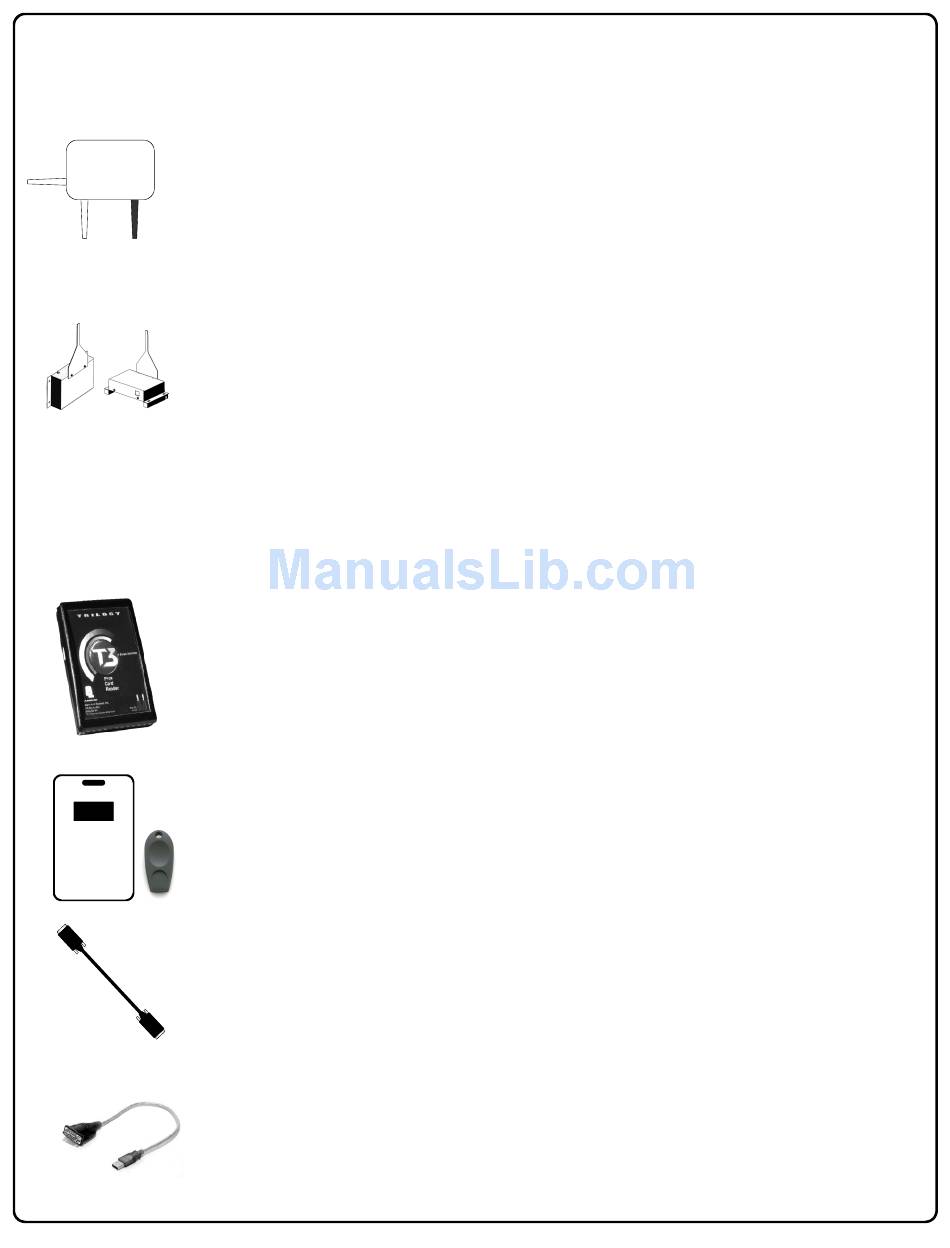

Supported Products

AL-IM SERIES WI-FI Gateway Module
The NETWORXPANEL contains a radio that transmits and receives data--via a private wireless signal--to
an intermediate device called a Gateway module. In turn, this Interface Module is connected (either
wirelessly or wired) to a computer network such as a LAN or corporate Intranet. A Windows PC connected
to this network can control and program all NETWORXPANEL control panels by the use of the DL-Window
software (see OI237 and OI352). With access rights to the software, one computer--or several--can control
the software and consequently can control the devices in the system. Several Gateway device models are
available:
• "Wireless/Wired" AL-IM80211 Hardwired/Wireless Gateway Interface Module. Supplied with its own
class 2 transformer to supply power and supports connection to a network either using 802.11 or a
standard Ethernet cable.
proprietary radio connection to the NETWORXPANEL and the other for 802.11 network transmissions.
Ensure adequate 802.11 coverage in the area where the "Wireless/Wired" Gateway is mounted.
Supports up to 63 Networx Locks. Ceiling- or wall-mountable.
• "Wired" AL-IME Hardwired Gateway Interface Module, supports up to 63 Networx Locks, connects
directly to a network using a standard RJ-45 Ethernet cable. This model has one antenna used to
transmit to the NETWORXPANEL via an Alarm Lock proprietary radio connection.. Ceiling- or wall-
mountable. Powered with Class 2, 6VAC transformer (supplied).
• "Power over Ethernet" AL-IMEPOE Hardwired Gateway Interface Module + POE (Power Over
Ethernet), supports up to 63 Networx Locks, connects directly to a network using a standard RJ-45
Ethernet cable and POE. This model has one antenna used to transmit to the NETWORXPANEL via
an Alarm Lock proprietary radio connection. Ceiling- or wall-mountable.
• Gateway "Plenum Rated POE" AL-IMEPOEP - Same as above "AL-IMEPOE", with added enclosure
protections and installation hardware for mounting above "drop-ceiling" tiles or other locations subject
to air pressure changes (HVAC air-filled spaces, etc.).
Proximity Card Reader/Enroller (AL-PRE)
An AL-PRE is used to quickly enroll multiple proximity cards and keyfobs into DL-Windows without the
need to manually type proximity data. Use the supplied 9-pin DB9 to DB9 serial cable (see below for de-
scription) to connect the AL-PRE to your computer's serial COM port. Compatible with most HID Prox-
® ®
Cards and ProxKey keyfobs (37 bits or less). For NETPDK models with integral proximity readers only.
® ®
ProxCard / ProxKey Keyfob
Compatible with most HID ProxCards
with integral proximity readers only.
® ®
Note: ProxCard and ProxKey are trademarks of the HID
DB9 to DB9 Serial Cable
Enroll proximity cards and keyfobs quickly by using the AL-PRE to DL-Windows by connecting one end
of this 9-pin male DB9 to female DB9 serial cable to the AL-PRE and the other end to your computer's
serial COM port. If your computer does not have a serial COM port (DB-9 male) available, use the USB
to RS-232 Cable described below.
USB to RS-232 Cable
If your computer does not have a serial COM port (DB-9 male) available, you can plug your AL-PCI2 cable
into a special USB to RS-232 cable. Order part MX1130 for the USB to RS-232 cable only.
