345 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ
© ALARM LOCK 2018
H I D
HID CORPORATION
NETPDK

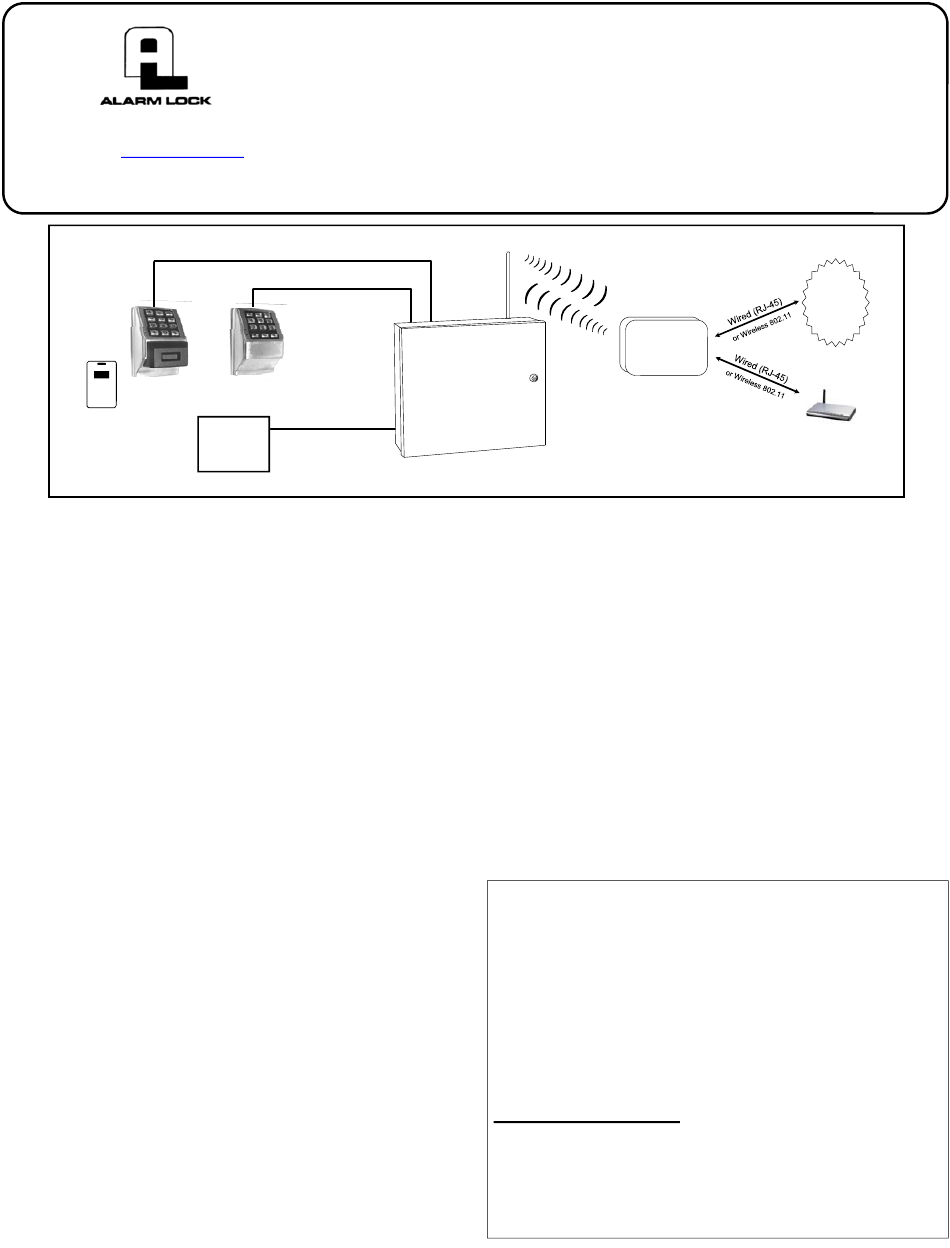

NETDK and/or NETPDK keypads (and/or Wiegand devices) wired to a dedicated NETWORXPANEL control panel

GENERAL DESCRIPTION

The NETDK keypad and NETPDK (keypad with proximity
card reader) are secured single-door or double-door digital
keypads for use within the wireless Networx
These keypads are wired to the dedicated NETWORXPAN-
EL control panel and provide controlled access to a door by
releasing a locking device (such as a magnetic lock or elec-
tric door strike) when a proper user code or proximity cre-
dential is presented.
The NETWORXPANEL is capable of controlling two doors
using up to two of any combination NETDK or NETPDK key-
pads or two Wiegand devices.
equipped with two relays that can be independently as-
signed to either or both keypads. Thus the NETWORXPAN-
EL can be configured to allow a user to pass in both direc-
tions--or in only one direction--through a controlled door.
For example, a door can be configured to allow everyone to
exit, but only a select few to enter. Log entries indicate the
specific keypad used. For more information about the Net-
worx system, see OI352.
For the purposes of this manual, the word
Note:
"keypad" refers to either the NETPDK model keypad or the
NETDK model keypad.

FEATURES

The NETWORXPANEL dedicated control panel contains:
● Circuit board with onboard flash memory;
● 12V power supply, with transformer and rechargeable
back-up battery;
● Inputs supporting two of any combination of NETDK or
NETPDK keypads, PLUS up to two Wiegand devices;
● Special "Two-Door Mode" allows two keypads and/or two
NETWORXPANEL Installation Instructions
Wireless Networx
Symbol: NSSC
NETDK
Wire up to
2 Wiegand
Devices
In addition, the panel is
NETWORXPANEL
INSTALLATION INSTRUCTIONS
NETWORXPANEL
Wiegand devices to separately control two doors, with
one keypad is designated as the "primary" keypad con-
trolling door number 1, and the other as the "secondary"
system.
keypad controlling door number 2;
● Two Form-C relays;
● Inputs for door position contact to indicate the status of
the door, open or closed;
● Inputs for a remote release button or sensor;
● Onboard bi-directional Networx radio;
● Wiegand interface supports Wiegand device data, red
LED, green LED, and sounder.
GENERAL DESCRIPTION .......................................................................... 1
FEATURES ................................................................................................. 1
SPECIFICATIONS ..................................................................................... 1
WIEGAND DATA FORMATS SUPPORTED............................................... 2
LED AND BUTTON DESCRIPTIONS ......................................................... 2
TERMINAL DESCRIPTIONS ...................................................................... 2
PLAN YOUR INSTALLATION ..................................................................... 3
TYPICAL INSTALLATIONS ........................................................................ 4
INSTALLATION STEPS .............................................................................. 5
WIRING TWO KEYPADS TO THE NETWORXPANEL .............................. 6
"TWO DOOR MODE" .................................................................................. 6
FIRST TIME POWER UP .................................................... 7
POWER RE-APPLIED ................................................................................ 8
ERASE ALL PROGRAMMING .................................................................... 8
ENROLLING WIEGAND SWIPE CARDS ................................................... 9
BASIC WIRING EXAMPLES ..................................................................... 10
WIRING DIAGRAM ................................................................................... 12
WARRANTY .............................................................................................. 12
Control Panel
GATEWAY

TABLE OF CONTENTS

WI1856DLF 1/18
Existing
Corporate
Ethernet
Network
Router
1
