345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
© ALARM LOCK 2008
CONGRATULATIONS!

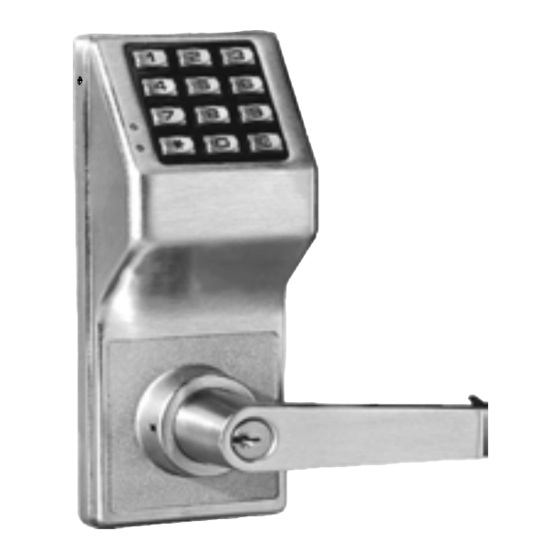

Your new Alarm Lock Trilogy electronic digital lock is a rugged
double-sided entry lock of advanced design with several program-
mable features. Three security levels are provided: Master (can
perform ALL functions), Manager (can perform MOST functions
plus entry), and Basic User (entry only).
The lock includes 100 User Codes (consisting of Managers and
Basic Users), plus three "one-time entry" Service Codes. The
Manager/Basic User Codes are organized similar to a grid--ten
banks of ten Access Codes.
Take the time to read through this guide to familiarize
yourself with the features and operations of the lock, and
its quick and easy programming procedures.
FEATURES
•
1 Master Code (all functions including entry)
•
10 Manager Codes (perform SOME programming
functions plus entry)
•
90 Basic User Access Codes (Entry Only)
•
3 Service Codes ("One-Time Entry" Codes)
•
Two User Disable Modes:
•
All User Codes Disabled Except Master Code
•
All User Codes in a Bank Disabled Except Manager
Codes
•
30-Second Keypad Anti-Tamper Lockout
(Keypad Lockout After 3 Unsuccessful User Code
Entries)
•
Programmable Relay Functions
(Relay may be keypad programmed to energize on any
keypress 0-9 or on unlock).
•
Locks may be pre-programmed prior to installation.
Once installed, locks may immediately be put into use.
•
Clearing all user codes only requires a simple two step
procedure (see "Erase All Programming" on page 11).
© ALARM LOCK 2008
Trilogy
DL5200 Programming
Instructions
DL5200
SECONDARY SIDE
QUICK LOOKUP
Wiring ............................................................... 2
Quick Start ...................................................... 2
Testing Codes .................................................. 3
Change Existing Master Code ...................... 7
Add/Change Manager Codes ....................... 7
Add/Change User Codes ............................. 7
Deleting Codes ............................................. 7
Disable/Enable Users ................................... 7
Disable/Enable All ........................................ 8
Code Location Function ............................... 8
Next Free Code Address Locator ................. 8
Add/Delete Service Codes .......................... 9
Enable/Disable Passage Mode .................... 9
Disable/Enable Groups ................................ 9
Disable/Enable Users in Bank .................... 10
Keypress Sound Options ............................ 10
Audible and LED Indications .......................... 11
Battery Replacement ..................................... 11
Erase All Programming .................................. 11
Limited Warranty ............................................ 12
OI345 10/08
DL5200
PRIMARY SIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trilogy DL5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Alarm Lock Trilogy DL5200

Summary of Contents for Alarm Lock Trilogy DL5200

  • Page 1: Table Of Contents

    © ALARM LOCK 2008 OI345 10/08 CONGRATULATIONS! Your new Alarm Lock Trilogy electronic digital lock is a rugged double-sided entry lock of advanced design with several program- mable features. Three security levels are provided: Master (can perform ALL functions), Manager (can perform MOST functions plus entry), and Basic User (entry only).

  • Page 2: Wiring

    An external 7.5 VDC Power Source, capable of at push button switch to the two white wires. Press least 100mA, must be used for operation without for one second to unlock the DL5200. batteries in the lock. Use an external UL-Listed power supply provided with backup battery power...

  • Page 3: Testing Codes

    KEYPAD ANTI-TAMPER LOCKOUT - If 3 invalid User Access Codes are entered in succession, the lock will turn off for approximately 30 seconds to prevent tampering. The DL5200 will emit 2 beeps with a Red LED flash warning at the end of the anti-tamper period.

  • Page 4: Manager & User Location Worksheet

    The DL5200 lock provides three "security levels": Master (can perform ALL functions), Manager (can perform SOME program- ming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the DL5200 lock: one Master Code, 10 Manager and 90 User Access Codes, and three "one-time entry" Service Codes. Where the Access Code is located will determine its security level.

  • Page 5: Manager & User Location Example

    User Access Codes allow access only; Manager Codes allow more: Manager Codes have the ability to program and delete User Access Codes within that Manager's Bank (column). The DL5200 lock can hold up to 10 Manager Codes, one for each Bank (locations (00), (10), (20), (30), (40), (50), (60), (70), (80), (90)), and are all found at the top row of the grid be- low.

  • Page 6: Programming Worksheet: Functions

    Programming Worksheet: Functions Directions: The Factory Master Code ("1-2-3-4-5") must first be reprogrammed as a new Master Code before any other programming can take place. All new Access Codes must have the same number of digits as the new Master Code. Choose new Access Codes and write them in spaces provided (in pencil) before programming the lock.

  • Page 7: Change Existing Master Code

    Once the number of digits is selected, it cannot be changed unless all programming is erased and the Factory Default settings are re-loaded (power must be removed and re-applied as per the "Erase All Programming" procedure found on page 11. Required only if DL5200 is locked.

  • Page 8: Disable/Enable All

    5. To signify the end of the Code Location function, the lock will flash both the GREEN and RED LED's and will emit a low tone. If no free address is found, then the lock will emit a programming error tone sequence. No LED flashes/sounder beeps represent the number zero. Required only if DL5200 is locked.

  • Page 9: Add/Delete Service Codes

    Banks outside of that Manager's Bank cannot be programmed. Disable Groups __ __ __ __ __ __ ; 211 ; Master Code** Enable Groups __ __ __ __ __ __ ; 210 ; Master Code** Required only if DL5200 is locked.

  • Page 10: Disable/Enable Users In Bank

    ; 8 4 Master/Manager Code** Bank Number Keypress Sound Options The DL5200 is capable of emitting 1 of 4 possible keypress sounds: • High Frequency Keypad Feedback + LED • "Click!" Keypad Feedback + LED • LED Only High Freq KP Keypress Sound + LED __ __ __ __ __ __ ;...

  • Page 11: Audible And Led Indications

    When a key is pressed, a beep will sound and a Red LED will flash. Other indications are: ▪ Access Granted: 1 beep and a Green LED flash. (When Pass Time ends, the DL5200 locks with a beep and a Red LED flash).

  • Page 12: Limited Warranty

    ALARM LOCK will, In no event shall ALARM LOCK be liable for an within said period, at its option, repair or replace any amount in excess of ALARM LOCK's original selling...
