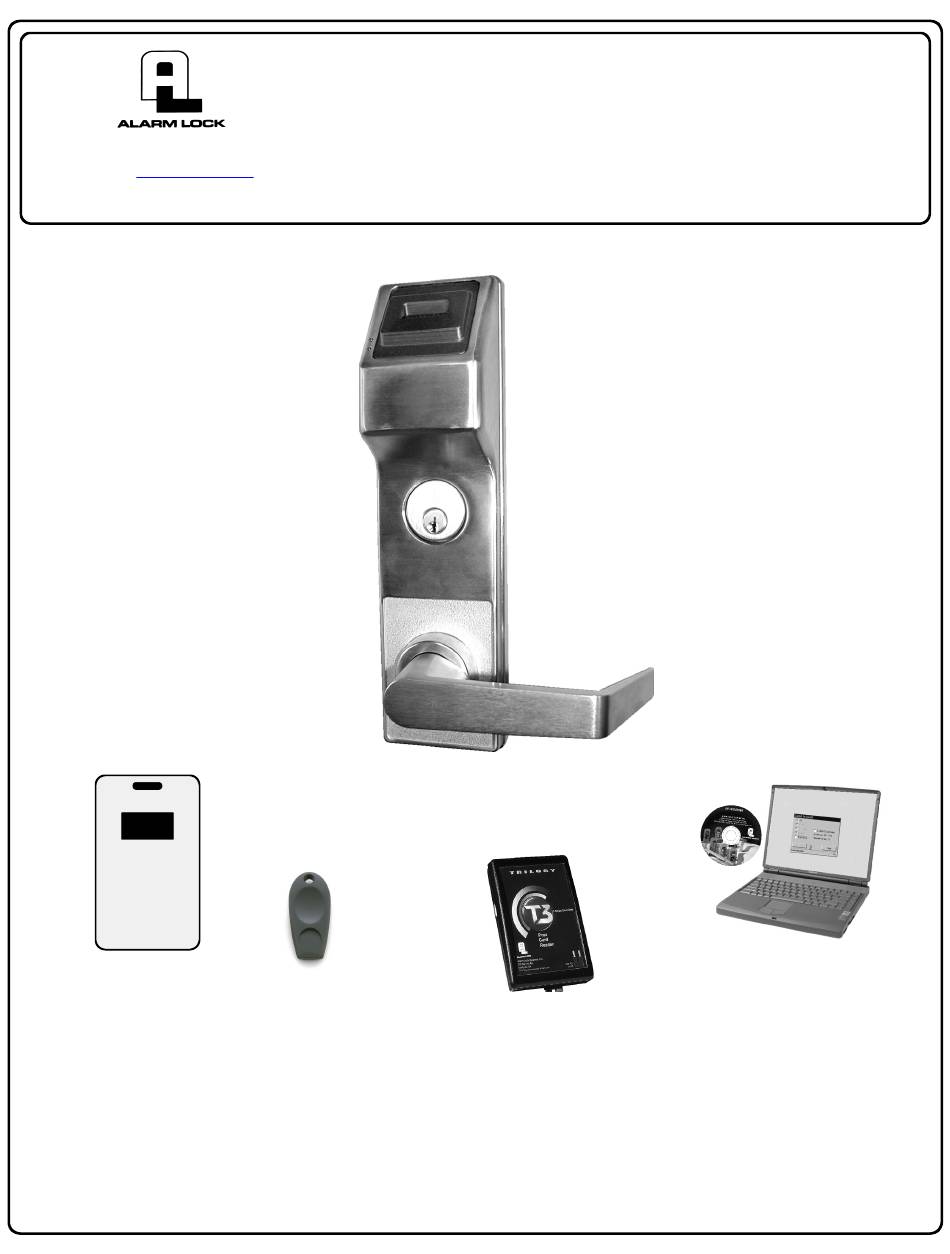

PL6600 & ETPLNRX
H I D
HID CORPORATION
H I D
DL-WINDOWS
PROGRAMMING SOFTWARE
®
PROXCARD
®
PROXKEY
KEYFOB
®
AL-PRE PROXCARD
READER / ENROLLER
PL Wireless Trilogy Series
Network Access Control System
with ProxCard
Access
®
1
Advertisement
Table of Contents
Related Manuals for Alarm Lock Wireless Trilogy Networx PL Series
Summary of Contents for Alarm Lock Wireless Trilogy Networx PL Series
- Page 1 For Technical Service 1-800-645-9440 or visit us at http://tech.napcosecurity.com/ (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2013 © ALARM LOCK 2013 WI2059 03/13 PL6600 & ETPLNRX H I D HID CORPORATION...
-
Page 2: Table Of Contents
PL6600 & ETPLNRX WIRELESS LOCKS PL-S LARM IRELESS RILOGY ERIES TAND LONE CCESS ONTROL YSTEM IS A TATE ICROPROCESSOR ASED OMPUTER ETWORK ROGRAMMABLE ROXIMITY ECURITY PL6600 & ETPLNRX The PL6600 and ETPLNRX security locks are designed to allow all features to be programmed through its radio link from a DL-Windows-equipped computer. -
Page 3: Wireless Pl Series Lock Features
• Guard Tour Card (see page 7) Computer Programming • Full programming allowed from a PC using Alarm Lock's DL-Windows Software. For a description of all features, see the DL-Windows User's Guide, OI237 or the Wireless Network Setup & DL-Windows Configuration Instructions, OI352. -
Page 4: Supported Products
• "Wired" AL-IME Hardwired Gateway Interface Module, supports up to 63 Networx Locks, connects directly to a network using a standard RJ-45 Ethernet cable. This model has one antenna used to transmit to the PL6600 / ETPLNRX via an Alarm Lock proprietary radio connection.. Ceiling- or wall- AL-IMEPOEP mountable. -
Page 5: Lock Design Overview
-- and what will you do if someone causes a security breach by losing their key? The answer lies in the advantage of "firmware". Firmware exists inside your Alarm Lock™ series lock, and can be changed ("programmed") to suit your changing requirements. No more metal keys to distribute...instead, distribute a... -
Page 6: Terminology Used In This Manual
Terminology Used in this Manual Before reading this section, you may wish to first read access ONLY during specific business hours (unlock at 9AM, lock at noon for lunch, unlock at 1PM, and lock the "Lock Design Overview" on page 5 for the basics. For a description of all features, see the DL-Windows again at 5PM--every weekday). - Page 7 Terminology Used in this Manual (cont'd) ply a numbered list from 1 through 5000. Each entry in only. Once used, User 300's proximity card becomes the list is represented by a User Number, and proximity disabled. card data is assigned to ("programmed into") each For example, you wish to allow one-time access to a "location"...
-
Page 8: Wiring
For models with a replacable battery pack, use four (4) C-size 1.5 volt alkaline batteries. For models with a sealed battery pack, contact your Alarm Lock dealer for a replacement battery pack. Always replace weak batteries as soon as possible. -
Page 9: Erase All Programming
Erase All Programming Restore the "out of box" factory condition. 1. At the back of the lock, remove the screw at the bottom of the lock housing and remove the cover. 2. Disconnect the battery pack connector. 3. With battery power disconnected, short the two white wires (Remote Input wires) together for 10 seconds to ensure discharge of all capacitors. -
Page 10: Dl-Windows Programmable Features Screen
DL-Windows Programmable Functions "Features" Screen - Options tab You can program the quences of accidentally selecting this option can cause PL6600 / ETPLNRX to a security breach! perform certain functions when various events oc- One Time Entry for Group 3 Users cur. - Page 11 DL-Windows Programmable Functions "Features" Screen - Relay tab while that proximity card is disabled. Provides an alert that a disabled proximity card entry attempt has been detected. Authorized Entry Activates relay anytime a User presents a valid proximity card and is granted access. Scheduled (Group 1 Activated) Activates relay if the PL6600 / ETPLNRX has been programmed for "Scheduled Relay Activation (Group 1...
- Page 12 DL-Windows Programmable Functions "Features" Screen - Remote tab Remote Toggles Passage Mode When enabled, momentarily shorting the two white Remote Input wires will toggle Passage Mode ("Passage Mode" allows passage through the door without the need for a valid proximity card to be pre- sented).
-
Page 13: User Card Record Sheet
User Card Record Sheet Page # ______ NAME OF DOOR: DEPARTMENT: EMBOSSED NUMBER ON CARD USER NAME (LAST, FIRST) DATE ACTIVATED COMMENTS... -
Page 14: Glossary
Glossary • GROUP 1 ENABLES GROUP 4 USERS = A proximity ACCESS = Entry into a restricted area. AUDIT TRAIL = A date/time stamped log of previous lock card (previously assigned to Group 1) presented to the events. lock during a predefined schedule allows access to Group BURGLARY CONTROL PANEL = Provides local alarm and 4 Users. - Page 15 NOTES...
-
Page 16: Limited Warranty
In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the prod- uct, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product.
