  • Page 1: Programming Instructions

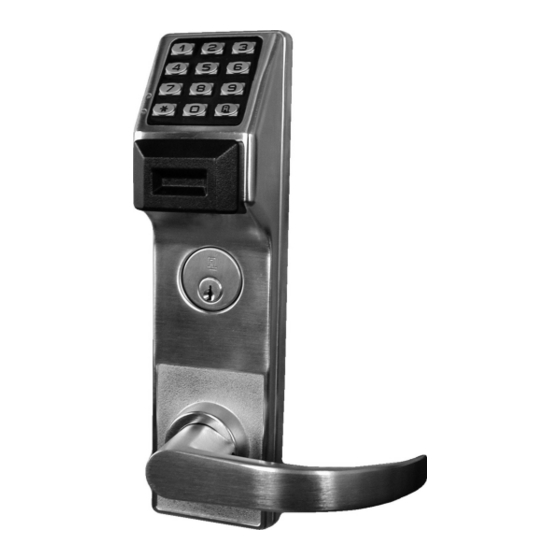

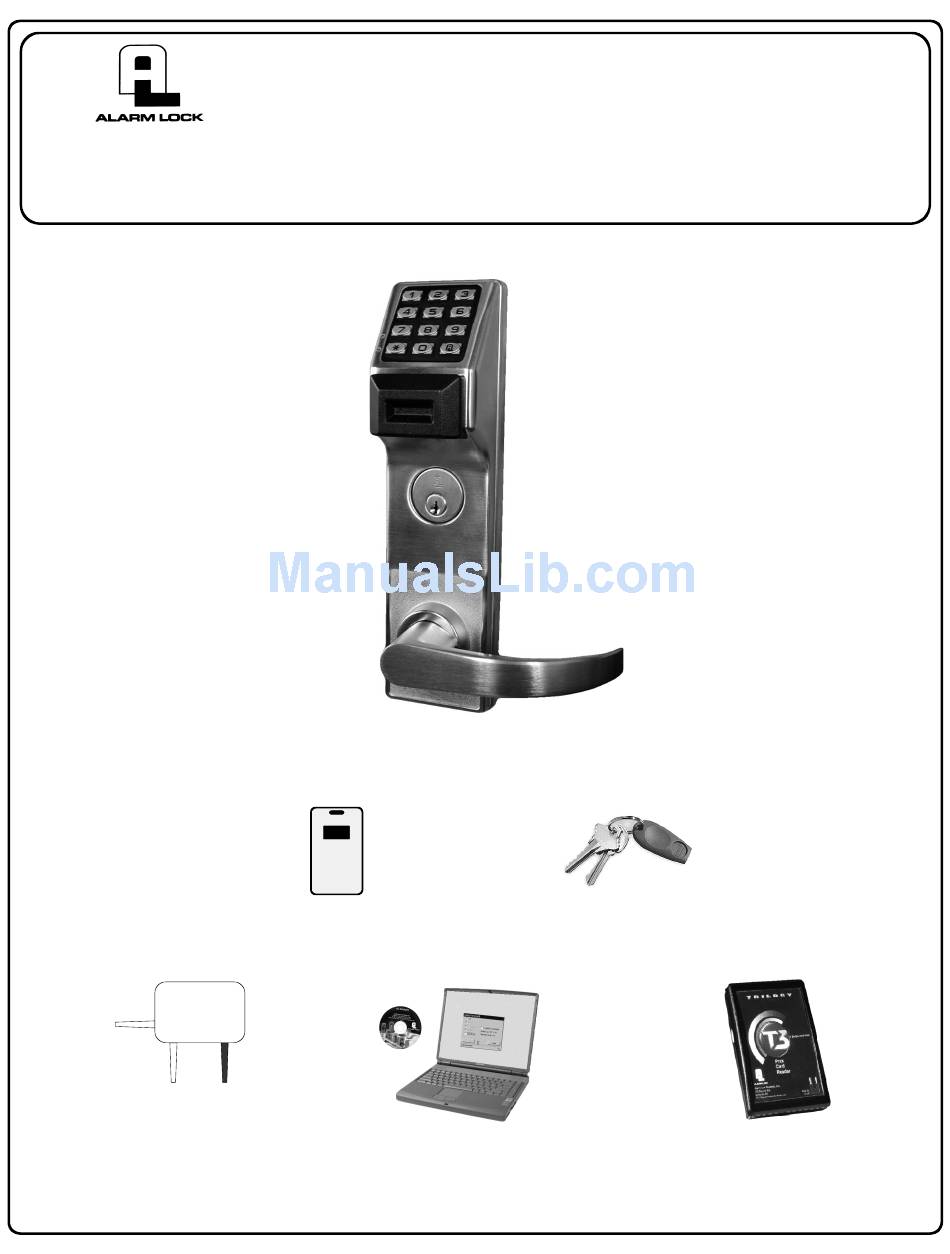

    Trilogy PDL6500 & ETPDLN 345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK Programming Instructions For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2011 WI1835A 09/11 PDL6500 & ETPDLN H I D...
  • Page 2: Table Of Contents

    OCKS PDL6500 & ETPDLN The PDL6500 and ETPDLN mortise locks are designed to allow all features to be programmed either at the keypad or through its radio link to a DL-Windows equipped computer. In addition, Audit Log Data may be transmitted through the radio link back to the DL-Windows computer.
  • Page 3: Lock Features

    • Guard Tour Code (see page 7) • Emergency Commands (see page 7) Keypad and Computer Programming • All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL-Windows Software (see page 7) ®...
  • Page 4: Supported Products

    (either wirelessly or wired) to a computer network such as a LAN or corporate Intranet. A Windows PC connected to this network can control and program all PDL6500 / ETPDLN locks by the use of the DL-Window software (see OI237 and OI352). With access rights to the software, one...
  • Page 5: Lock Design Overview

    Preparing to Program User Codes The PDL6500 / ETPDLN keypad contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL" but- ton (;). You can use the PDL6500 / ETPDLN keypad to program your system, or you can use a computer program called DL- Windows that can be configured to program your system wirelessly.
  • Page 6: Terminology Used In This Manual

    Level is sometimes referred to by their “User Type”. itself. The Lock Program is essentially a computer database file that For example, PDL6500 and ETPDLN locks can hold up to 5000 maintains feature settings, schedules, audit trails, etc. Using DL- Users in its programming memory, and each User is associated with Windows, a Lock Program (called a "Lock Profile"...
  • Page 7 "AL-PCI" cable was used to physically con- Windows is that it allows you to set up all lock programming in ad- nect the lock to a PC running DL-Windows. With the PDL6500 vance (on your computer), and then later send the information to and ETPDLN locks no longer requiring a wired connection, the locks at your convenience.
  • Page 8: Programming Levels

    Type”. no longer requiring (or allowing) the use of this AL-IR1 For example, PDL6500 and ETPDLN locks can hold up to printer, Print Only Users are also no longer required. Al- 5000 Users in its programming memory, and each User is as- though the attributes of User Numbers 10 and 11 have sociated with a User Number (see definition of "User Number"...
  • Page 9: Conventions Used In This Manual

    All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence. LED and Sounder Indicators The PDL6500 and ETPDLN locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feedback is as follows:...
  • Page 10: Wiring And Power Up

    Time. For models with a replacable battery pack, use four (4) C-size 1.5 volt alkaline batteries. For models with a FIRST TIME sealed battery pack, contact your Alarm Lock dealer for a • When applying power to the lock for the first time, replacement battery pack.
  • Page 11: Quick Start

    Quick Start First Time Start Up 1. Unpack the lock. 2. With the batteries disconnected, hold down the ; key for 10 seconds and release. 3. Connect the batteries and listen for 3 beeps. Within 5 seconds of hearing the 3 beeps, press and hold ; until beeping starts.
  • Page 12 Quick Start (cont’d) Delete a User Code 1. Enter Program Mode (if not in already). 2. Press ; 2 ; User Number The sounder beeps for 10 seconds with green (and then red) LED flashes. At this point the lock expects a presentation of a proximity card;...
  • Page 13: Exit Program Mode

    3. Lock will beep continuously. Do not present ANY card during this step. Wait until lock stops beeping, about 10 seconds. 4. Press ; to end. Exit Program Mode Hold Down any key for 3 seconds. Program Mode exit is confirmed by several beeps. You are now in normal operation. Re-enter Program Mode If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;.
  • Page 14: Programming Functions Overview

    Programming Functions--Overview See page 21 Function 1 Change Master Code See page 15 Function 48 Enable Passage Mode See page 21 Function 49 Disable Passage Mode Function 2 Add/Delete/Change User Codes See page 15 Return Lock to Normal Passage Function 50 See page 21 Function 3 User Disable (By User Number)
  • Page 15: Programming Functions

    User Code, you can control access to the lock by adding or deleting User Codes. See "Terminology Used in this Manual" on page 6 for more information. Lock Defaults for PDL6500 and ETPDLN Locks Users added will default to a Group Association and a Programming Level ability as follows:...
  • Page 16 Programming Functions (cont'd) USERS (Continued) User Enable/Disable (By User Number) • User Number must be between 2 and 5000. NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User Number and their associated User Code.
  • Page 17 Programming Functions (cont'd) CLEAR FUNCTIONS 12. Clear All Schedules and Timeout Functions ; 1 2 ; 0 0 0 : Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions 5, 25 through 34 and Function 47.
  • Page 18 Programming Functions (cont'd) NOTE: Clear All Timeout Functions by entering Function 13. GROUPS Group Enable/Disable with Timeout (Enter Timeout, XXX Hours) (Functions 25-34 are enabled through the keypad only) • Hours must be between 001-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours. NOTE: Only 4 Timeout Functions are allowed at any one time.
  • Page 19 Programming Functions (cont'd) CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero. •...
  • Page 20 Programming Functions (cont'd) CLOCK ADJUST Clock Adjust Number of seconds to adjust (speed up/slow down) the clock each day must be be- tween 0-55 seconds. Note: Repeated use of these Functions are not "cumulative" (this means, for exam- Clock Accuracy ple, if the clock has already been set to speed up 10 seconds per day, and then is The internal oscillator is factory calibrated to an accu- found to need an additional 10 seconds, then program 20 seconds using Function 43).
  • Page 21 Programming Functions (cont'd) PERMANENT PASSAGE MODE Passage Mode Enable/Disable - Schedule will not Override • Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function 49. • Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46.
  • Page 22 Programming Functions (cont'd) 55 - 59. Reserved LOCKOUT 60. Number of Attempts Before Lockout • Number of attempts before lockout must be 1-9 attempts. • The number of attempts is reduced by half every time the keypad is locked out without a successful code entry (default is 6 attempts).
  • Page 23: System Options

    Programming Functions (cont'd) SYSTEM FEATURES [ _ _ ] ; 6 7 67. Add System Features (Event Number) • Relay Features (12-23. Reserved) Use Function 67 to program one or more lock events and the Relay will energize when the programmed event(s) listed below oc- curs.
  • Page 24: Enter Key

    Programming Functions (cont'd) ENTER KEY Enter Key • When this function is enabled, the User must press after any valid User Code entry. Therefore, this Function allows User Codes to be subsets of other User Codes. Examples: 1 2 3 : can be a valid user code; 1 2 3 4 : a valid user code within the same lock.
  • Page 25 Programming Functions (cont'd) QUICK SCHEDULES Quick Schedules - Enable Group For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their User Codes into the keypad to unlock the lock.
  • Page 26 Programming Functions (cont'd) SCHEDULES GROUP 1 ACTIVATED Scheduled Relay Activation (Group 1 Activated) Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window, the relay will be activated for 2 seconds. This relay can be used with a Control Panel that has a key switch disarm option. For additional information, see "Group 1 Activated Features"...
  • Page 27 Programming Functions (cont'd) Scheduled Group 4 Enable (Group 1 Activated) Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this window, Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For additional in- formation, see "Group 1 Activated Features"...
  • Page 28: Groups And Scheduled Group 1 Examples

    The following examples detail the more advanced features of the PDL series locks. Although all features and device functions can be programmed using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock security lock.
  • Page 29 Groups and Scheduled Group 1 Examples (cont'd.) Functions 90/91: Use Function 90 and 91 (see page 26) to create a window of time where if any Group 1 User Code is entered within the programmed window, a Relay will be activated for 2 seconds. The Relay can be configured to disarm a burglary control panel. See page 26. 1.
  • Page 30: Programming Record Sheet

    Default Values are shown in parentheses. Function Function Name Programming Number(s) 43/44 Clock Adjust 0-55 Seconds 52/53/54 Pass Time (3 sec) 10 sec 15 sec Set Lockout Attempts 1-9 Attempts Set Lockout Time 1-60 seconds 64/65 Remote Input Momentary (Enable) Disable Ambush Code 00-99...
  • Page 31: User Code Record Sheet

    User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 32 User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 33: Schedule Record Sheet

    Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)
  • Page 34 Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)
  • Page 35: Glossary

    Glossary set at the factory; in other words, it is the lock's original fac- ACCESS = Entry into a restricted area. tory condition when the lock was first taken out of its box. AMBUSH = A special Code entered at the keypad when the The default settings are permanently encoded within the User is forced to unlock a security device.
  • Page 36: Alarm Lock Limited Warranty

    24 months following the date of manufacture. In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK will, within said period, at its option, repair or replace...
