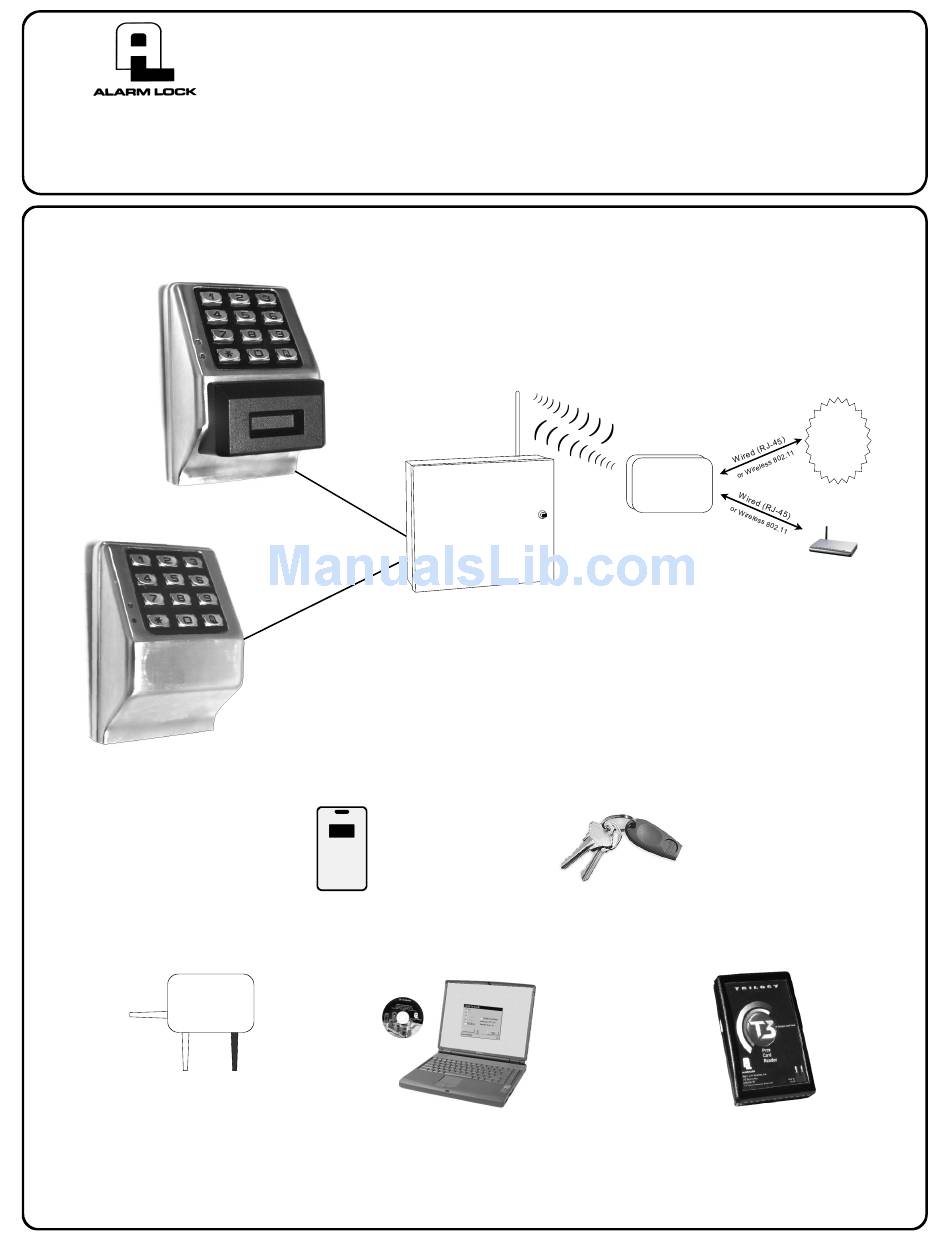

Trilogy
NETWORXPANEL

Programming Instructions

NETWORXPANEL
H I D
HID CORPORATION
PROXIMITY
CARD
DL-WINDOWS PROGRAMMING
SOFTWARE
GATEWAY
PROXIMITY KEYFOB
AL-PRE PROXIMITY CARD
READER / ENROLLER
WI1855B 3/12
Existing
Corporate
Ethernet
Network
Router
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETWORXPANEL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alarm Lock NETWORXPANEL

Summary of Contents for Alarm Lock NETWORXPANEL

  • Page 1: Programming Instructions

    Trilogy NETWORXPANEL 345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK Programming Instructions For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2012 WI1855B 3/12 Existing Corporate Ethernet Network NETPDK GATEWAY Router NETWORXPANEL...

  • Page 2: Table Of Contents

    NETDK, the NETWORXPANEL will ignore the proximity data. Wiegand Devices The NETWORXPANEL inputs support two of any combination of NETDK or NETPDK keypads, PLUS up to two Wie- gand devices. In most cases, features may also be programmed using Wiegand devices that are equipped with their own keypads;...

  • Page 3: Features

    • Emergency Commands (see page 7) Keypad and Computer Programming • All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL-Windows Software (see page 7) ® ® *The NETDK does not have a proximity reader; therefore proximity cards and/or fobs can be used with the NETPDK model only. ProxCards...

  • Page 4: Supported Products

    LAN or corporate Intranet. A Windows PC connected to this network can control and program all NETWORXPANEL control panels by the use of the DL-Window software (see OI237 and OI352). With access rights to the software, one computer--or several--can control the software and consequently can control the devices in the system.

  • Page 5: General Overview

    The Master Code is basically a secret 6-digit "passcode" that allows you to enter Program Mode. But since all NETWORXPANEL control panels are identical and leave the factory with the same Master Code, this factory Master Code is therefore not very secret--and should be changed to your own personal Master Code.

  • Page 6: Terminology Used In This Manual

    Level is sometimes referred to by their “User Type”. keypad to make changes to the programming or you can use DL- For example, the NETWORXPANEL can hold up to 5000 Users in Windows (defined below) to create a Lock Profile on your computer,...
  • Page 7 50 (by using keypad Function 35). (See page 16 for time Features or Users are uploaded from DL-Windows to the some Group function examples). NETWORXPANEL, the User 300 User Code is re-enabled for ALL keypads in the DL-Windows Account. What is DL-Windows?

  • Page 8: Programming Levels

    Type”. ers are also no longer allowed/required. Although the at- For example, the NETWORXPANEL can hold up to 5000 Us- tributes of User Numbers 10 and 11 have been changed to ers in its programming memory, and each User is associated replicate those of "Basic Users", to ensure compatibility...

  • Page 9: Conventions Used In This Manual

    NETWORXPANEL Low Battery "Status" screen Keypad Identification Feature when two keypads NETDK or NETPDK set to primary 1 RED are wired to the NETWORXPANEL NETDK or NETPDK set to Keypad Identification Feature when two keypads 2 RED secondary are wired to the NETWORXPANEL...

  • Page 10: Quick Start

    WI1856. Once the NETWORXPANEL, keypad(s) and/or Wiegand devices, locking devices, and other items such as exit buttons and door position contacts are installed, wired and powered, the NETWORXPANEL can be programmed through a NETDK / NETPDK key- pad.
  • Page 11 Quick Start (cont’d) Set the Time 1. Enter Program Mode (if not in already. If you just finished the above procedure, you are still in Program Mode). 2. Press ; 39 ; [ ] :. (Use 24-hour military format, where PM adds 12 hours). HHMM (For example - 2:30pm - press ;...

  • Page 12: Testing The Codes Entered

    10 seconds, waiting for the User to enter their User Code and present their card. Note: If two keypads are used in one system (wired to one NETWORXPANEL control panel), the programming of "High Security Access" is supported ONLY if both keypads installed are NETPDK model keypads.
  • Page 13 Programming Functions--Overview See page 20 Function 48 Enable Passage Mode Function 1 Change Master Code See page 14 See page 20 Function 49 Disable Passage Mode See page 14 Function 2 Add/Delete/Change User Codes Return to Normal Passage Mode Function 50 See page 20 Schedule Function 3...

  • Page 14: Programming Functions

    User Code, you can control access by adding or deleting User Codes. See "Terminology Used in this Manual" on page 6 for more information. Programming Level Defaults for the NETWORXPANEL Users added will default to a Group Association and a Programming Level ability as follows:...
  • Page 15 (including a DL-Windows data transfer) will re-enable User Codes. User Codes must be re-enabled with Function 7. Note: Does not change the User enable/disable status. Note: If the NETWORXPANEL is currently in Passage Mode ("door unlocked") and Function 6 is programmed, the NETWORXPANEL will remain in Passage Mode.
  • Page 16 Programming Functions (cont'd) CLEAR FUNCTIONS 12. Clear All Schedules and Timeout Functions ; 1 2 ; 0 0 0 : Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Func- tions 5, 25 through 34 and Function 47.
  • Page 17 (User Number) (Groups) As per the chart on page 8, the NETWORXPANEL default programming from the factory associates certain User Num- bers with certain Groups. To override these default Group associations, Function 35 manually associates (or disassoci- ates) a selected User with a selected Group (Groups not selected are then disassociated from the User). Function 35 is helpful when the number of Users you wish to add to a Group outgrows the number of User Numbers defaulted to a Group (50);...
  • Page 18 Programming Functions (cont'd) CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero. •...
  • Page 19 • Function 45 allows passage through the door without the need for a User Code. Disable Passage Mode with Function 46. • Programmed Schedules will override the state of the NETWORXPANEL when Functions 45 and 46 are used. If it is re- quired that programmed schedules do not override Passage Mode, enable/disable Passage Mode using Functions 48/49.
  • Page 20 50. Return to Normal Passage Mode Schedule (This Function enabled through keypad only) (The NETWORXPANEL will enable or disable Passage Mode depending on the current schedule). Use Function 50 to "undo" Func- tions 48 and/or 49, and therefore return the NETWORXPANEL to all pre-existing scheduled functions.
  • Page 21 Remote Input • Wire a Normally Open Contact to NETWORXPANEL terminals T26 & T27. Momentarily close switch to unlock door to allow pas- sage. Enter the functions below to Disable/Enable the Remote Input. NOTE: The Remote Input is enabled by default.

  • Page 22: System Options

    Auxiliary Relay Features (14-23 Reserved) Use Function 67 to program one or more events and the Auxiliary Relay (NETWORXPANEL terminals T16-T18 shown below) will energize for two seconds (unless otherwise specified) when the programmed event or events listed below occurs. Note: For information about the Remote Input, see page 21 (Function 65).

  • Page 23: Enter Key

    Programming Functions (cont'd) 68. Delete All Relay Features ; 68 ; 0 0 0 : 68. Door Ajar Time [ _ _ _ ] ; 68 (Seconds) Function 68 has two functions: • Delete all Relay Features added by Function 67: Enter ; 6 8 ; 0 0 0 :. •...
  • Page 24 Programming Functions (cont'd) QUICK SCHEDULES Quick Schedules - Enable Group For your convenience, your system comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their User Codes into the keypad to "unlock"...
  • Page 25 Alarm Control Panel will always Panel disarm an alarm system. Arming should be performed by other means (such as Alarm Panel Key- NETWORXPANEL pad/Schedule). Aux Relay Terminals 2. Use a qualified electrical/alarm Burglary Alarm Control Panel with Switched Input for Disarming...
  • Page 26 When using a NETWORXPANEL without the DL-Windows RF link, it is highly recommended to enter this feature to disable all ra- dio access to the NETWORXPANEL. If enrollment in a wireless system should be desired later, simply restart the NETWORX-...

  • Page 27: Groups And Scheduled Group 1 Examples

    The following examples detail the more advanced features of the system. Although all features and device functions can be programmed using the keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your NETWORXPANEL. For more information, contact your Alarm Lock security professional.
  • Page 28 Groups and Scheduled Group 1 Examples (cont'd.) Functions 90/91: Use Function 90 and 91 (see page 25) to create a window of time where if any Group 1 User Code is entered within the programmed window, the AUX Relay will be activated for 2 seconds. The Relay can be configured to disarm a Burglary Alarm control panel (see page 25).

  • Page 29: Ambush Code

    Default Values are shown in parentheses. Function Num- Function Name Programming ber(s) 0-55 Clock Adjust 43/44 Seconds Pass Time 52/53/54 (3 sec) 10 sec 15 sec Set Keypad Lockout 1-9 Attempts Attempts 1-60 seconds Set Keypad Lockout Time Remote Input Momentary 64/65 (Enable) Disable...
  • Page 30 User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 31 User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 32 Day(s) Up to 500 scheduled functions can be programmed. For Function Number Time Function Name Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week •...
  • Page 33 Day(s) Up to 500 scheduled functions can be programmed. For Function Number Time Function Name Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week •...

  • Page 34: Glossary

    The integral NETWORX- fied by the NETWORXPANEL as a User Code. PANEL relay output used for Ambush can provide a silent alarm and call-for-help.
  • Page 35 Only specific Users PANEL = A Group 1 USER CODE entry can dis- can program a NETWORXPANEL manually, by en- arm a Burglary Alarm control panel during a pre- tering their USER CODE, followed by the ; key.

  • Page 36: Alarm Lock Limited Warranty

    In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK's original selling price of the prod- uct, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product.
