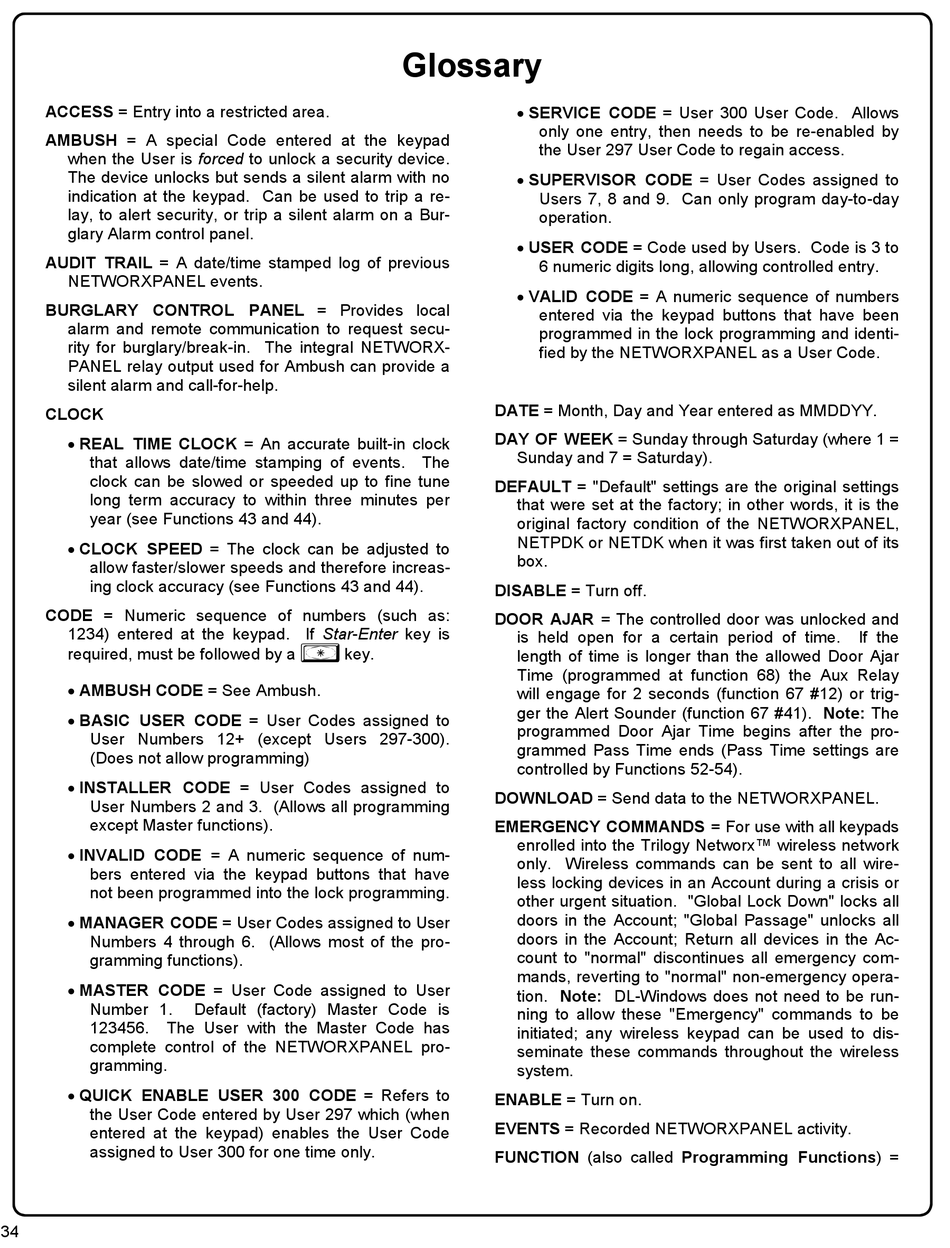

Glossary - Alarm Lock NETWORXPANEL Programming Instructions Manual

ACCESS = Entry into a restricted area.
AMBUSH = A special Code entered at the keypad
when the User is forced to unlock a security device.
The device unlocks but sends a silent alarm with no
indication at the keypad. Can be used to trip a re-
lay, to alert security, or trip a silent alarm on a Bur-
glary Alarm control panel.
AUDIT TRAIL = A date/time stamped log of previous
NETWORXPANEL events.
BURGLARY CONTROL PANEL = Provides local
alarm and remote communication to request secu-
rity for burglary/break-in. The integral NETWORX-
PANEL relay output used for Ambush can provide a
silent alarm and call-for-help.
CLOCK
• REAL TIME CLOCK = An accurate built-in clock
that allows date/time stamping of events. The
clock can be slowed or speeded up to fine tune
long term accuracy to within three minutes per
year (see Functions 43 and 44).
• CLOCK SPEED = The clock can be adjusted to
allow faster/slower speeds and therefore increas-
ing clock accuracy (see Functions 43 and 44).
CODE = Numeric sequence of numbers (such as:
1234) entered at the keypad. If Star-Enter key is
required, must be followed by a : key.
• AMBUSH CODE = See Ambush.
• BASIC USER CODE = User Codes assigned to
User Numbers 12+ (except Users 297-300).
(Does not allow programming)
• INSTALLER CODE = User Codes assigned to
User Numbers 2 and 3. (Allows all programming
except Master functions).
• INVALID CODE = A numeric sequence of num-
bers entered via the keypad buttons that have
not been programmed into the lock programming.
• MANAGER CODE = User Codes assigned to User
Numbers 4 through 6. (Allows most of the pro-
gramming functions).
• MASTER CODE = User Code assigned to User
Number 1.
123456. The User with the Master Code has
complete control of the NETWORXPANEL pro-
gramming.
• QUICK ENABLE USER 300 CODE = Refers to
the User Code entered by User 297 which (when
entered at the keypad) enables the User Code
assigned to User 300 for one time only.
34
Default (factory) Master Code is

Glossary

• SERVICE CODE = User 300 User Code. Allows
only one entry, then needs to be re-enabled by
the User 297 User Code to regain access.
• SUPERVISOR CODE = User Codes assigned to
Users 7, 8 and 9. Can only program day-to-day
operation.
• USER CODE = Code used by Users. Code is 3 to
6 numeric digits long, allowing controlled entry.
• VALID CODE = A numeric sequence of numbers
entered via the keypad buttons that have been
programmed in the lock programming and identi-
fied by the NETWORXPANEL as a User Code.
DATE = Month, Day and Year entered as MMDDYY.
DAY OF WEEK = Sunday through Saturday (where 1 =
Sunday and 7 = Saturday).
DEFAULT = "Default" settings are the original settings
that were set at the factory; in other words, it is the
original factory condition of the NETWORXPANEL,
NETPDK or NETDK when it was first taken out of its
box.
DISABLE = Turn off.
DOOR AJAR = The controlled door was unlocked and
is held open for a certain period of time.
length of time is longer than the allowed Door Ajar
Time (programmed at function 68) the Aux Relay
will engage for 2 seconds (function 67 #12) or trig-
ger the Alert Sounder (function 67 #41). Note: The
programmed Door Ajar Time begins after the pro-
grammed Pass Time ends (Pass Time settings are
controlled by Functions 52-54).
DOWNLOAD = Send data to the NETWORXPANEL.
EMERGENCY COMMANDS = For use with all keypads
enrolled into the Trilogy Networx™ wireless network
only. Wireless commands can be sent to all wire-
less locking devices in an Account during a crisis or
other urgent situation. "Global Lock Down" locks all
doors in the Account; "Global Passage" unlocks all
doors in the Account; Return all devices in the Ac-
count to "normal" discontinues all emergency com-
mands, reverting to "normal" non-emergency opera-
tion. Note: DL-Windows does not need to be run-
ning to allow these "Emergency" commands to be
initiated; any wireless keypad can be used to dis-
seminate these commands throughout the wireless
system.
ENABLE = Turn on.
EVENTS = Recorded NETWORXPANEL activity.
FUNCTION (also called Programming Functions) =
If the
