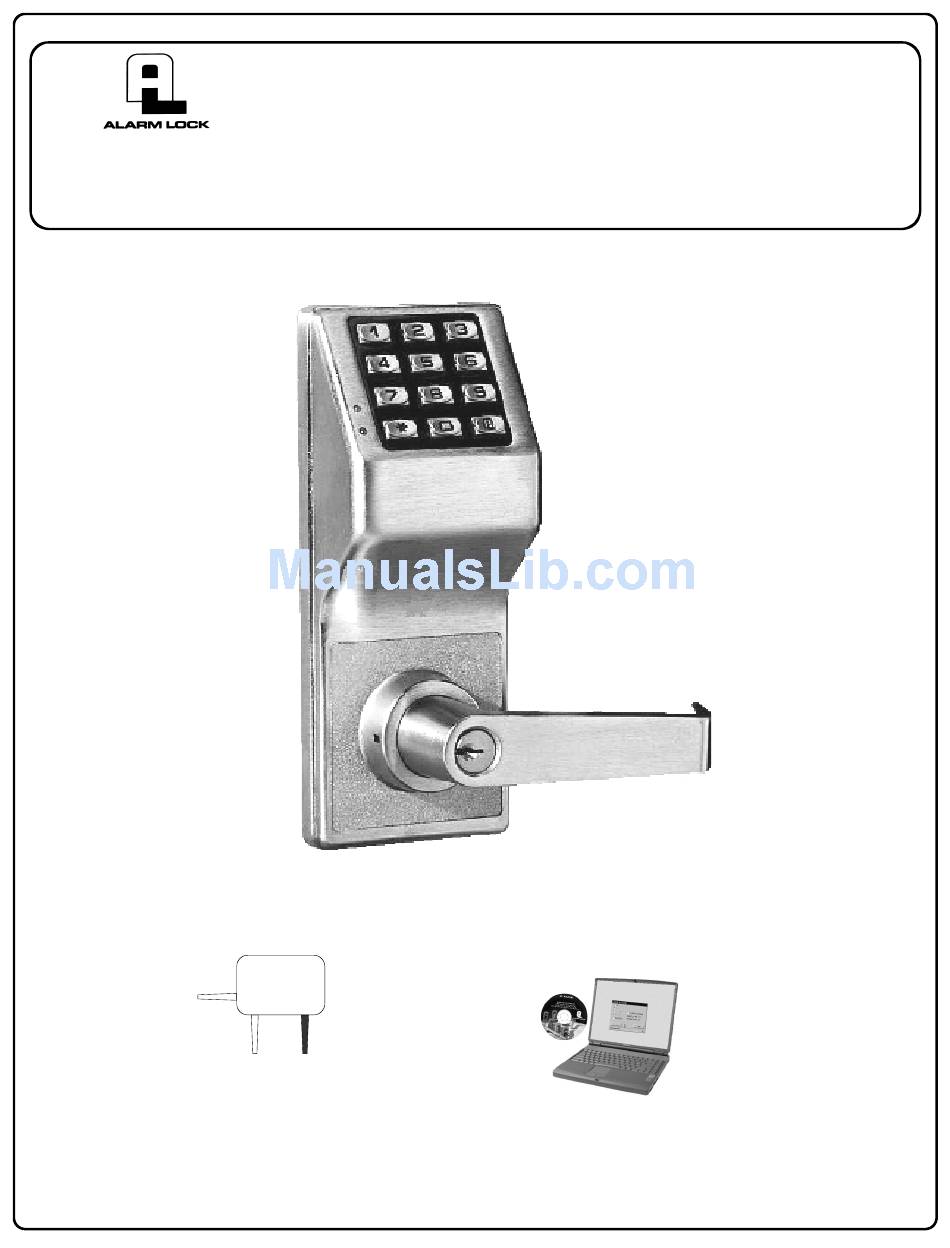

Wireless Trilogy
®
DL6100
345 Bayview Avenue
Amityville, New York 11701

Programming Instructions

For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ
Symbol: NSSC
© ALARM LOCK 2011
WI1820A 3/11
DL6100
AL-IM SERIES
GATEWAY MODULE
DL-WINDOWS PROGRAMMING
AL-IM80211
SOFTWARE
AL-IME
AL-IMEPOE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Trilogy DL6100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Lock Wireless Trilogy DL6100

  • Page 1: Programming Instructions

    DL6100 345 Bayview Avenue Amityville, New York 11701 Programming Instructions For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2011 WI1820A 3/11 DL6100 AL-IM SERIES GATEWAY MODULE DL-WINDOWS PROGRAMMING AL-IM80211 SOFTWARE...
  • Page 2: Table Of Contents

    OCKS DL6100 The DL6100 is designed to allow all features to be programmed either at the key- pad or through its radio link to a DL-Windows equipped computer. In addition, Au- dit Log Data may be transmitted through the radio link back to the DL-Windows computer.
  • Page 3: Lock Features

    • Guard Tour Code (see page 7) • Emergency Commands (see page 7) Keypad and Computer Programming • All programming may be performed manually from the keypad, or from a PC using Alarm Lock's DL- Windows Software (see page 7)
  • Page 4: Supported Products

    (either wirelessly or wired) to a computer network such as a LAN or corporate Intranet. A Windows PC connected to this network can control and program all DL6100 locks by the use of the DL-Window software (see OI237 and OI352). With access rights to the software, one...
  • Page 5: Lock Design Overview

    Preparing to Program User Codes The DL6100 keypad contains 12 buttons, numbers 1 through 9 plus zero, a star button (:) and a special "AL" button (;). You can use the DL6100 keypad to program your system, or you can use a computer program called DL-Windows that can be configured to program your system wirelessly.
  • Page 6: Terminology Used In This Manual

    It is these times (for example, “every Tuesday at use of User Numbers 10 and 11 with the DL6100 lock is not 5PM”) that are referred to as TimeZones. TimeZones can be cre- recommended.
  • Page 7 ™ Networx 6100 series door locks and a computer network. See use of User 298 with the DL6100 lock is not recommended. OI237 for more information. Note: User 298 is not an access code (it is a "non-pass" code) and therefore does not allow passage through the door.
  • Page 8: Programming Levels

    Type”. longer requiring (or allowing) the use of this AL-IR1 printer, For example, DL6100 Series locks can hold up to 5000 Users Print Only Users are also no longer required. Although the in its programming memory, and each User is associated with attributes of User Numbers 10 and 11 have been changed a User Number (see definition of "User Number"...
  • Page 9: Conventions Used In This Manual

    All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence. LED and Sounder Indicators The DL6100 Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feedback is as follows:...
  • Page 10: Wiring And Power Up

    (4) C-size 1.5 volt alkaline batteries. For models with a sealed battery pack, contact FIRST TIME your Alarm Lock dealer for a replacement battery pack. • When applying power to the lock for the first time, Always replace weak batteries as soon as possible.
  • Page 11: Quick Start

    Quick Start First Time Start Up 1. Unpack the lock. 2. With the batteries disconnected, hold down the ; key for 10 seconds and release. 3. Connect the batteries and listen for 3 beeps. Within 5 seconds of hearing the 3 beeps, press and hold ; until beeping starts.
  • Page 12: Exit Program Mode

    If you wish to re-enter Program Mode, key-in your new 6-digit Master Code, and press ;. You are now ready to mount and install your DL6100 series lock and give out your User Codes. Before installation, it is sug- gested you test and verify that all User Codes entered are active (see below).
  • Page 13: Testing The Codes Entered

    Testing the Codes Entered Verifying Basic Keypad User Codes Test a valid User Code: VALID CODE - The Green LED will flash momentarily and the sounder will beep a few times after a valid code is entered. INVALID CODE - The RED LED will flash several times and the sounder will beep several times after an invalid code is entered. Use Function 2 to re-program the code.
  • Page 14: Programming Functions Overview

    Programming Functions--Overview Function 1 Change Master Code See page 15 Function 48 Enable Passage Mode See page 21 Function 49 Disable Passage Mode See page 21 See page 15 Function 2 Add/Delete/Change User Codes Function 50 Return Lock to Normal Passage See page 21 See page 16 Function 3...
  • Page 15: Programming Functions

    User Code, you can control access to the lock by adding or deleting User Codes. See "Terminology Used in this Manual" on page 6 for more information. Lock Defaults for DL6100 Users added will default to a Group Association and a Programming Level ability as follows:...
  • Page 16 Programming Functions (cont'd) USERS (Continued) User Enable/Disable (By User Number) • User Number must be between 2 and 5000. NOTE: Will Enable/Disable Users even if the User is associated with an enabled Group. Use Feature 3 to disable a specific User Number and their associated User Code.
  • Page 17 Programming Functions (cont'd) CLEAR FUNCTIONS 12. Clear All Schedules and Timeout Functions ; 1 2 ; 0 0 0 : Function 12 clears all programmed Schedules and all Timeout Functions. (To clear All Timeout Functions only, see Function 13 below). Function 12 will clear all of the following: All Schedule Functions 72 through 93, Timeout Functions 5, 25 through 34 and Function 47.
  • Page 18 Programming Functions (cont'd) NOTE: Clear All Timeout Functions by entering Function 13. GROUPS Group Enable/Disable with Timeout (Enter Timeout, XXX Hours) (Functions 25-34 are enabled through the keypad only) • Hours must be between 001-999. Enter the functions below to Enable/Disable Groups for the amount of time entered in hours. NOTE: Only 4 Timeout Functions are allowed at any one time.
  • Page 19 Programming Functions (cont'd) CLOCK SETTINGS 38. Set Date [ _ _ _ _ _ _ ] ; 3 8 (Date) • Use Month Day Year format - MMDDYY - Single digit months and days are entered with a preceding zero. •...
  • Page 20 Programming Functions (cont'd) CLOCK ADJUST Clock Adjust Number of seconds to adjust (speed up/slow down) the clock each day must be be- tween 0-55 seconds. Note: Repeated use of these Functions are not "cumulative" (this means, for exam- Clock Accuracy ple, if the clock has already been set to speed up 10 seconds per day, and then is The internal oscillator is factory calibrated to an accu- found to need an additional 10 seconds, then program 20 seconds using Function 43).
  • Page 21 Programming Functions (cont'd) PERMANENT PASSAGE MODE Passage Mode Enable/Disable - Schedule will not Override • Function 48 allows passage through the door without the need for a User Code. Re-Lock using Function 49. • Programmed Schedules will not override the state of the lock using functions 48 and 49. If it is required that programmed schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46.
  • Page 22 Programming Functions (cont'd) 55 - 59. Reserved LOCKOUT 60. Number of Attempts Before Lockout • Number of attempts before lockout must be 1-9 attempts. • The number of attempts is reduced by half every time the keypad is locked out without a successful code entry (default is 6 attempts).
  • Page 23: System Options

    Programming Functions (cont'd) SYSTEM FEATURES [ _ _ ] ; 6 7 67. Add System Features (Event Number) • Relay Features (12-23. Reserved) Use Function 67 to program one or more lock events and the Relay will energize when the programmed event(s) listed below oc- curs.
  • Page 24: Enter Key

    Programming Functions (cont'd) ENTER KEY Enter Key • When this function is enabled, the User must press after any valid User Code entry. Therefore, this Function allows User Codes to be subsets of other User Codes. Examples: 1 2 3 : can be a valid user code; 1 2 3 4 : a valid user code within the same lock.
  • Page 25 Programming Functions (cont'd) QUICK SCHEDULES Quick Schedules - Enable Group For your convenience, your lock comes pre-programmed with Quick Schedules, which, when programmed, enable Groups for popular blocks of time. Group members will be enabled during the blocks of time defined below, but will still need to enter their User Codes into the keypad to unlock the lock.
  • Page 26 Programming Functions (cont'd) SCHEDULES GROUP 1 ACTIVATED Scheduled Relay Activation (Group 1 Activated) Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window, the relay will be activated for 2 seconds. This relay can be used with a Control Panel that has a key switch disarm option. For additional information, see "Group 1 Activated Features"...
  • Page 27 Programming Functions (cont'd) Scheduled Group 4 Enable (Group 1 Activated) Functions 92 and 93 allow you to set up a window of time where if any Group 1 User Code is entered within this window, Group 4 members will be enabled. (Group 4 members will still need to enter their User Codes to enter). For additional in- formation, see "Group 1 Activated Features"...
  • Page 28: Groups And Scheduled Group 1 Examples

    Groups and Scheduled Group 1 Examples The following examples detail the more advanced features of the DL6100 series locks. Although all features and device functions can be pro- grammed using the lock keypad, when programming becomes more complex you may find it easier to use DL-Windows software to program your Alarm Lock security lock.
  • Page 29 Groups and Scheduled Group 1 Examples (cont'd.) Functions 90/91: Use Function 90 and 91 (see page 26) to create a window of time where if any Group 1 User Code is entered within the programmed window, the internal Relay will be activated for 2 seconds. The Relay can be configured to disarm a burglary control panel. See page 26.
  • Page 30: Programming Record Sheet

    Default Values are shown in parentheses. Function Function Name Programming Number(s) 43/44 Clock Adjust 0-55 Seconds 52/53/54 Pass Time (3 sec) 10 sec 15 sec Set Lockout Attempts 1-9 Attempts Set Lockout Time 1-60 seconds 64/65 Remote Input Momentary (Enable) Disable Ambush Code 00-99...
  • Page 31: User Code Record Sheet

    User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 32 User Number User Code Group User Name (1-5000) (3-6 digits) Association Note: For a complete list of user codes, obtain a printout from the DL-WINDOWS software.
  • Page 33: Schedule Record Sheet

    Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)
  • Page 34 Day(s) Up to 500 scheduled functions can be programmed. For Day Enter : 1 = Sunday, 2 = Monday, 3 = Tuesday, 4 = Wednesday Function Number Time Function Name 5 = Thursday, 6 = Friday, 7 = Saturday, 8 = Monday through Friday, 9 = Saturday and Sunday, 0 = All days of the week Enter time of day in 24-hour format (00:00- 23:59)
  • Page 35: Glossary

    Account during a break-in. A DL6100 relay output used for Ambush can crisis or other urgent situation. "Global Lock Down" locks all provide a silent alarm and call-for-help.
  • Page 36: Warranty

    24 months following the date of manufacture. In no event shall ALARM LOCK be liable for an amount in excess of ALARM LOCK will, within said period, at its option, repair or replace...
