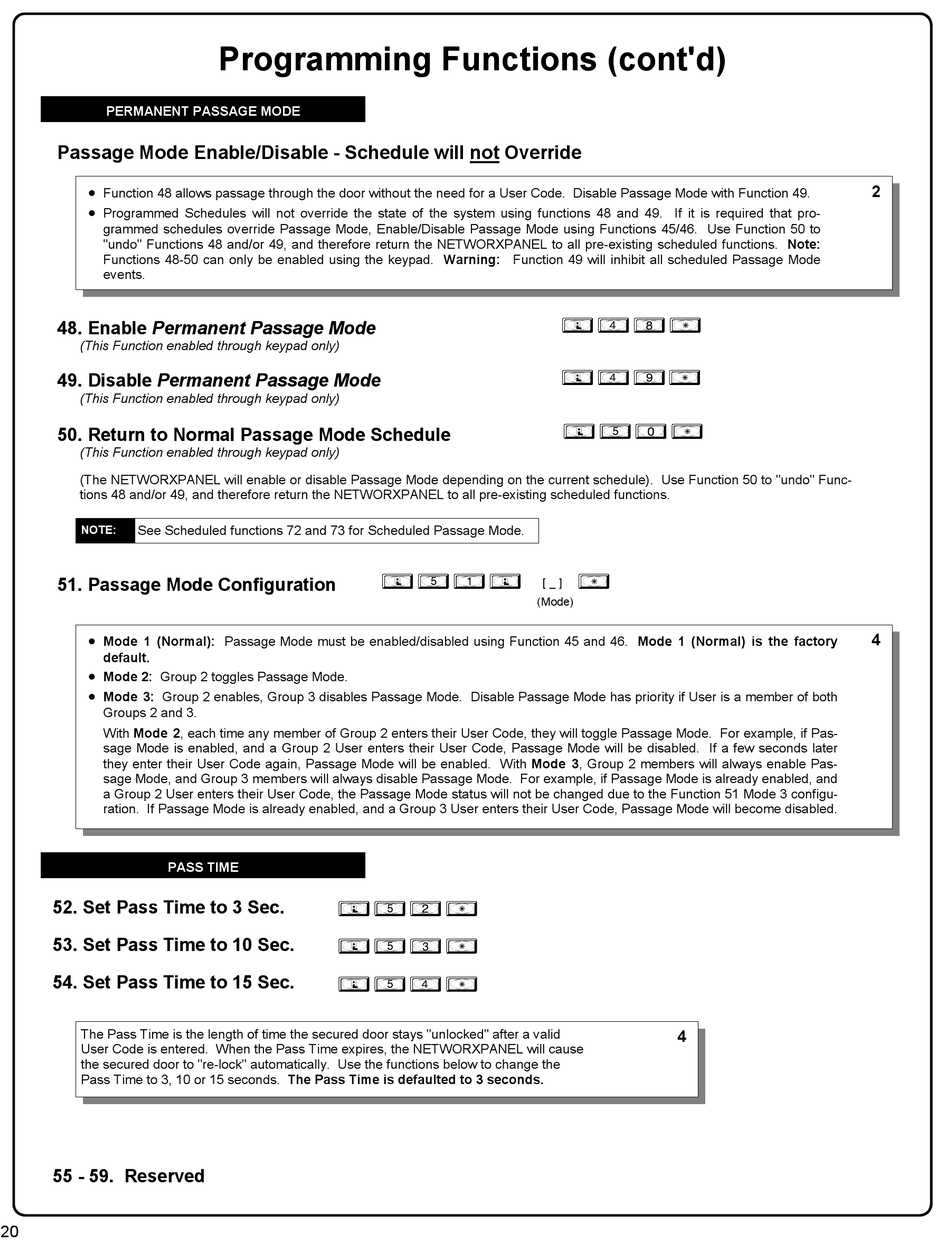

Alarm Lock NETWORXPANEL Programming Instructions Manual page 20

PERMANENT PASSAGE MODE
Passage Mode Enable/Disable - Schedule will not Override
•
Function 48 allows passage through the door without the need for a User Code. Disable Passage Mode with Function 49.
•
Programmed Schedules will not override the state of the system using functions 48 and 49. If it is required that pro-
grammed schedules override Passage Mode, Enable/Disable Passage Mode using Functions 45/46. Use Function 50 to
"undo" Functions 48 and/or 49, and therefore return the NETWORXPANEL to all pre-existing scheduled functions. Note:
Functions 48-50 can only be enabled using the keypad. Warning: Function 49 will inhibit all scheduled Passage Mode
events.
48. Enable Permanent Passage Mode
(This Function enabled through keypad only)
49. Disable Permanent Passage Mode
(This Function enabled through keypad only)
50. Return to Normal Passage Mode Schedule
(This Function enabled through keypad only)
(The NETWORXPANEL will enable or disable Passage Mode depending on the current schedule). Use Function 50 to "undo" Func-
tions 48 and/or 49, and therefore return the NETWORXPANEL to all pre-existing scheduled functions.
NOTE: See Scheduled functions 72 and 73 for Scheduled Passage Mode.
51. Passage Mode Configuration
•
Mode 1 (Normal): Passage Mode must be enabled/disabled using Function 45 and 46. Mode 1 (Normal) is the factory
default.
•
Mode 2: Group 2 toggles Passage Mode.
•
Mode 3: Group 2 enables, Group 3 disables Passage Mode. Disable Passage Mode has priority if User is a member of both
Groups 2 and 3.
With Mode 2, each time any member of Group 2 enters their User Code, they will toggle Passage Mode. For example, if Pas-
sage Mode is enabled, and a Group 2 User enters their User Code, Passage Mode will be disabled. If a few seconds later
they enter their User Code again, Passage Mode will be enabled. With Mode 3, Group 2 members will always enable Pas-
sage Mode, and Group 3 members will always disable Passage Mode. For example, if Passage Mode is already enabled, and
a Group 2 User enters their User Code, the Passage Mode status will not be changed due to the Function 51 Mode 3 configu-
ration. If Passage Mode is already enabled, and a Group 3 User enters their User Code, Passage Mode will become disabled.
PASS TIME
52. Set Pass Time to 3 Sec.
53. Set Pass Time to 10 Sec.
54. Set Pass Time to 15 Sec.
The Pass Time is the length of time the secured door stays "unlocked" after a valid
User Code is entered. When the Pass Time expires, the NETWORXPANEL will cause
the secured door to "re-lock" automatically. Use the functions below to change the
Pass Time to 3, 10 or 15 seconds. The Pass Time is defaulted to 3 seconds.
55 - 59. Reserved
20
Programming Functions (cont'd)
; 5 1 ;
; 5 2 :
; 5 3 :
; 5 4 :
; 4 8 :
; 4 9 :
; 5 0 :
:
[ _ ]
(Mode)
4
2
4
