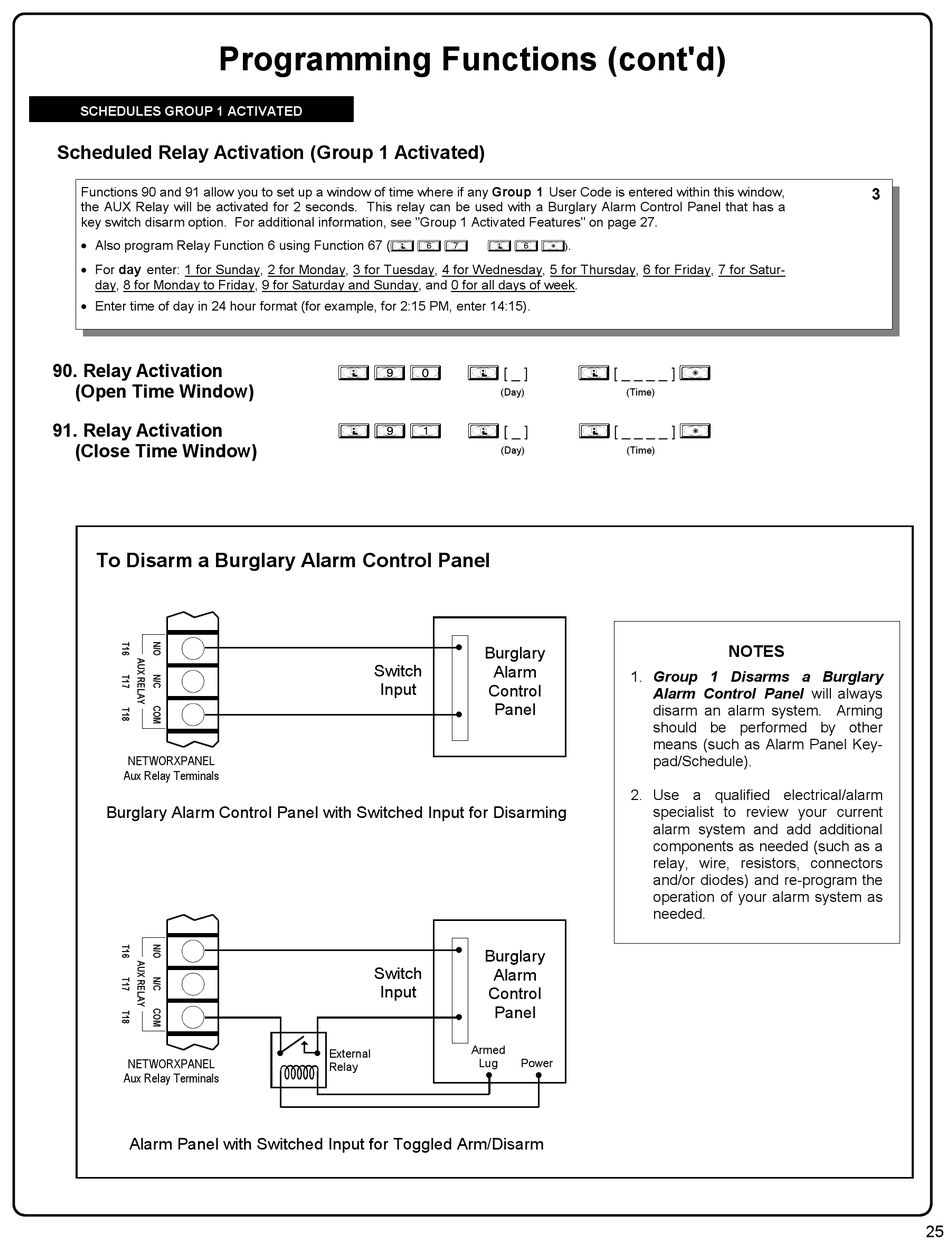

Alarm Lock NETWORXPANEL Programming Instructions Manual page 25

Programming Functions (cont'd)
SCHEDULES GROUP 1 ACTIVATED
Scheduled Relay Activation (Group 1 Activated)
Functions 90 and 91 allow you to set up a window of time where if any Group 1 User Code is entered within this window,
the AUX Relay will be activated for 2 seconds. This relay can be used with a Burglary Alarm Control Panel that has a
key switch disarm option. For additional information, see "Group 1 Activated Features" on page 27.
• Also program Relay Function 6 using Function 67 (
• For day enter: 1 for Sunday, 2 for Monday, 3 for Tuesday, 4 for Wednesday, 5 for Thursday, 6 for Friday, 7 for Satur-
day, 8 for Monday to Friday, 9 for Saturday and Sunday, and 0 for all days of week.
• Enter time of day in 24 hour format (for example, for 2:15 PM, enter 14:15).
90. Relay Activation
(Open Time Window)
91. Relay Activation
(Close Time Window)
To Disarm a Burglary Alarm Control Panel
NETWORXPANEL
Aux Relay Terminals
Burglary Alarm Control Panel with Switched Input for Disarming
NETWORXPANEL
Aux Relay Terminals
Alarm Panel with Switched Input for Toggled Arm/Disarm
; 6 7 ; 6 :).
; 9 0 ; [ _ ]
(Day)
; 9 1 ; [ _ ]
(Day)
Burglary
Switch
Alarm
Input
Control
Panel
Burglary
Switch
Alarm
Input
Control
Panel
Armed
External
Lug
Relay
; [ _ _ _ _ ] :
(Time)
; [ _ _ _ _ ] :
(Time)
1. Group 1 Disarms a Burglary
Alarm Control Panel will always
disarm an alarm system. Arming
should be performed by other
means (such as Alarm Panel Key-
pad/Schedule).
2. Use a qualified electrical/alarm
specialist to review your current
alarm system and add additional
components as needed (such as a
relay, wire, resistors, connectors
and/or diodes) and re-program the
operation of your alarm system as
needed.
Power
3
NOTES
25
