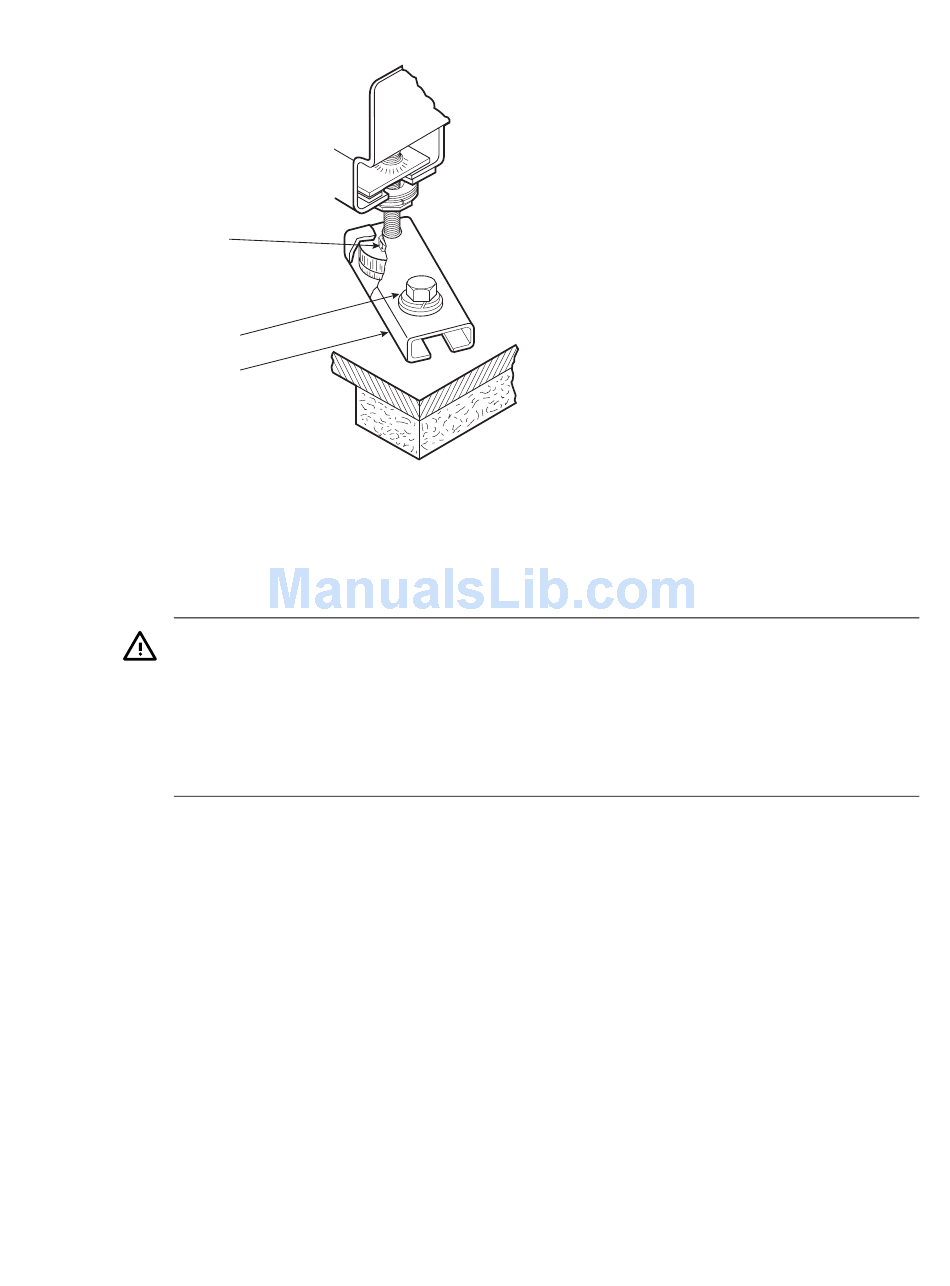

Figure 2-3 Shipping Bolt and Bracket
Leveler
Shipping
Bolt
Shipping
Bracket
6. Loosen the leveler locking nuts, and screw the four rack levelers all the way up into the rack
(see Step 3 in Figure
7. Carefully roll the rack off the pallet and down the ramps to the floor (see Step 4 in
Warning!
The levelers must be raised fully for the rack to roll easily down the unloading ramps (see
Step 3 in Figure 2-4). Failure to do so might result in personal injury as a result of the rack
tipping off the pallet or ramp. The rear face of some of the HP Cluster Platform racks come
off the pallet first. Pay attention to the placement of the wheels so that the rack does not slip
off the ramps. The wheels on the rear of the rack swivel, and the wheels on the front are
stationary.
8. Level the system using the four leveling feet at the bottom four corners of the rack. Lower
the leveling feet until the caster in each corner is free to rotate. The feet, not the casters,
support the weight of the rack.
Figure 2-4 shows how to dismount the HP 10000 Series Rack from a pallet.
HPTC-0007
2-4).
2.3 Removing a Rack from a Pallet
Figure 2-4).
