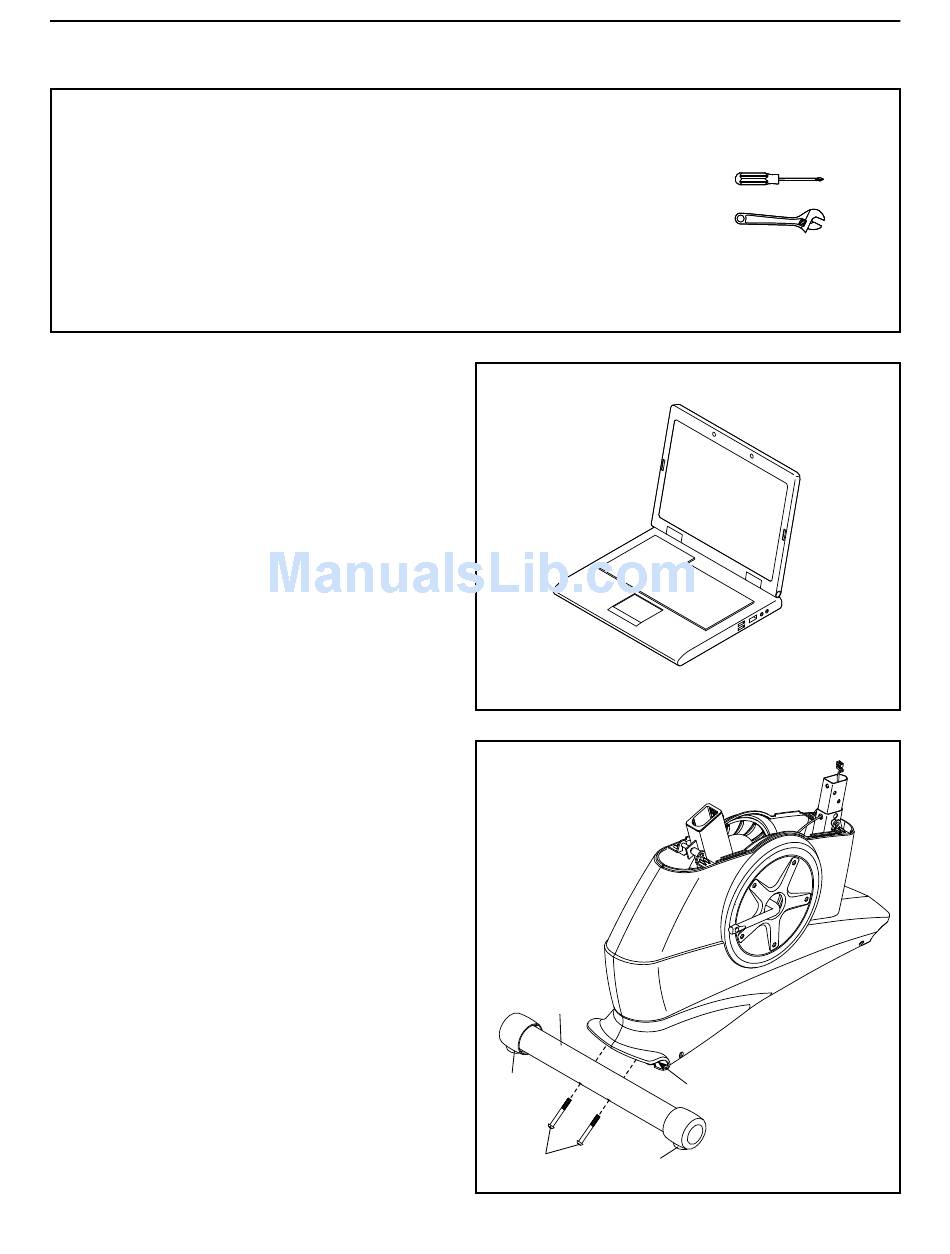

ASSEMBLY

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• To identify small parts, see page 5.
1. Go to www.iconsupport.eu on your computer
and register your product.
• a ctivates your warranty
• s aves you time if you ever need to contact
Customer Service
• a llows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.
2. If necessary, remove and discard the shipping
supports and the shipping screws attached to
the frame of the exercise bike.
Identify the Rear Stabilizer (14), which has a
Leveling Foot (43) near each end.
Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Rear Stabilizer (14) to the Frame (1)
with two M10 x 75mm Screws (36).
Remove the packing material.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
14
43
36 43
6
1
