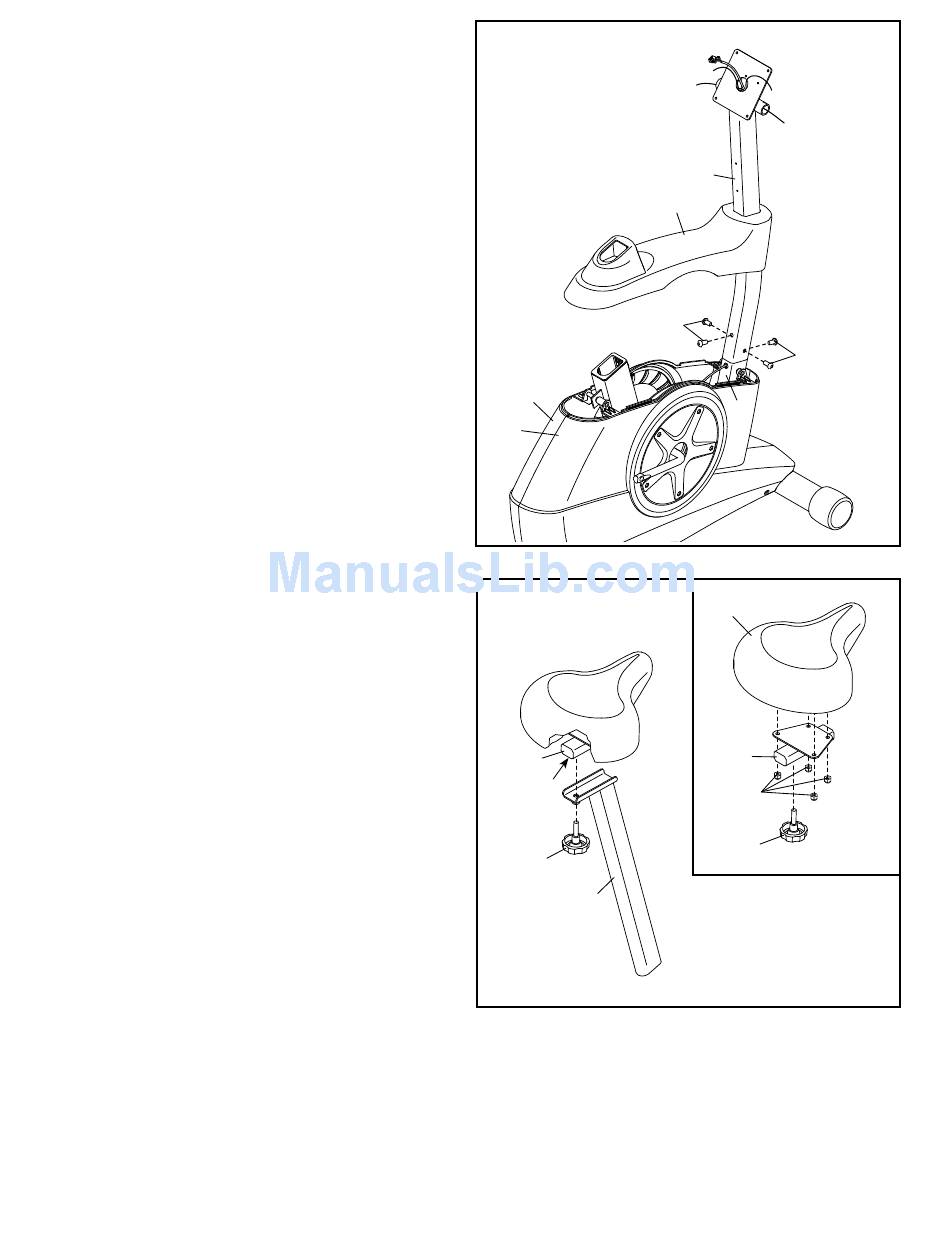

5. Tip: Avoid pinching the wires. Slide the
Upright (3) onto the Frame (1).
Attach the Upright (3) with four M8 x 18mm
Screws (35).
Slide the Top Shield (9) downward and press it
onto the Left and Right Shields (17, 18).
6. See the inset drawing. Remove the Seat Knob
(8) from the Seat Carriage (56). Next, attach
the Seat (12) to the Seat Carriage (56) with four
M8 Locknuts (37). Note: The Locknuts may be
preattached to the underside of the Seat.
Next, orient the Seat Carriage (56) and the Seat
Post (5) as shown. Set the Seat Carriage on the
Seat Post and hold it in place.
Insert the Seat Knob (8) upward into the Seat
Post (5), and tighten the Seat Knob into the
Carriage Clamp (57) inside the Seat Carriage (56).
5
Avoid pinching
the wires
17
18
6
56
57
8
5
8
3
9
35
35
1
12
56
37
8
