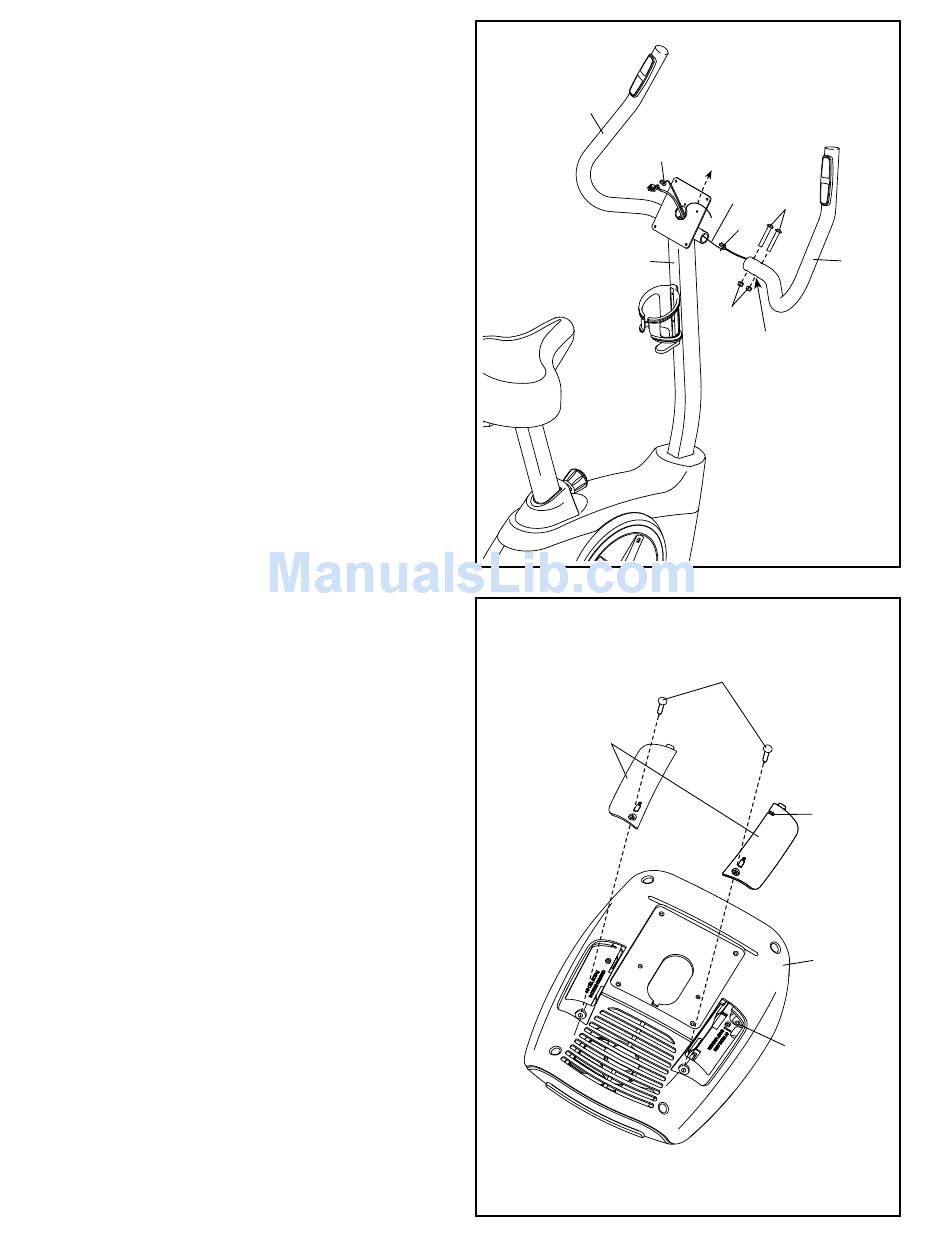

9. Identify the Right Handlebar (48) and orient it as
shown.
While a second person holds the Right
Handlebar (48) near the Upright (3), tie the indi-
cated wire tie to the Right Pulse Wire (42). Then,
pull the other end of the wire tie upward out of
the top of the Upright.
Tip: Avoid pinching the wire. Slide the Right
Handlebar (48) onto the Upright (3).
Attach the Right Handlebar (48) with two M8
x 38mm Bolts (53) and two M8 Locknuts (37).
Make sure that the Locknuts are in the hex-
agonal holes.
Attach the Left Handlebar (47) in the same
way.
10. The Console (6) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the screws and the
battery covers, insert batteries into the battery
compartments, and then reattach the battery
covers. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartments.
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied regulated
power adapter. Plug one end of the power
adapter into the receptacle inside the indicated
battery compartment; route the power adapter
through the notch in the battery cover. Then,
plug the other end into an outlet installed in
accordance with all local codes and ordinances.
