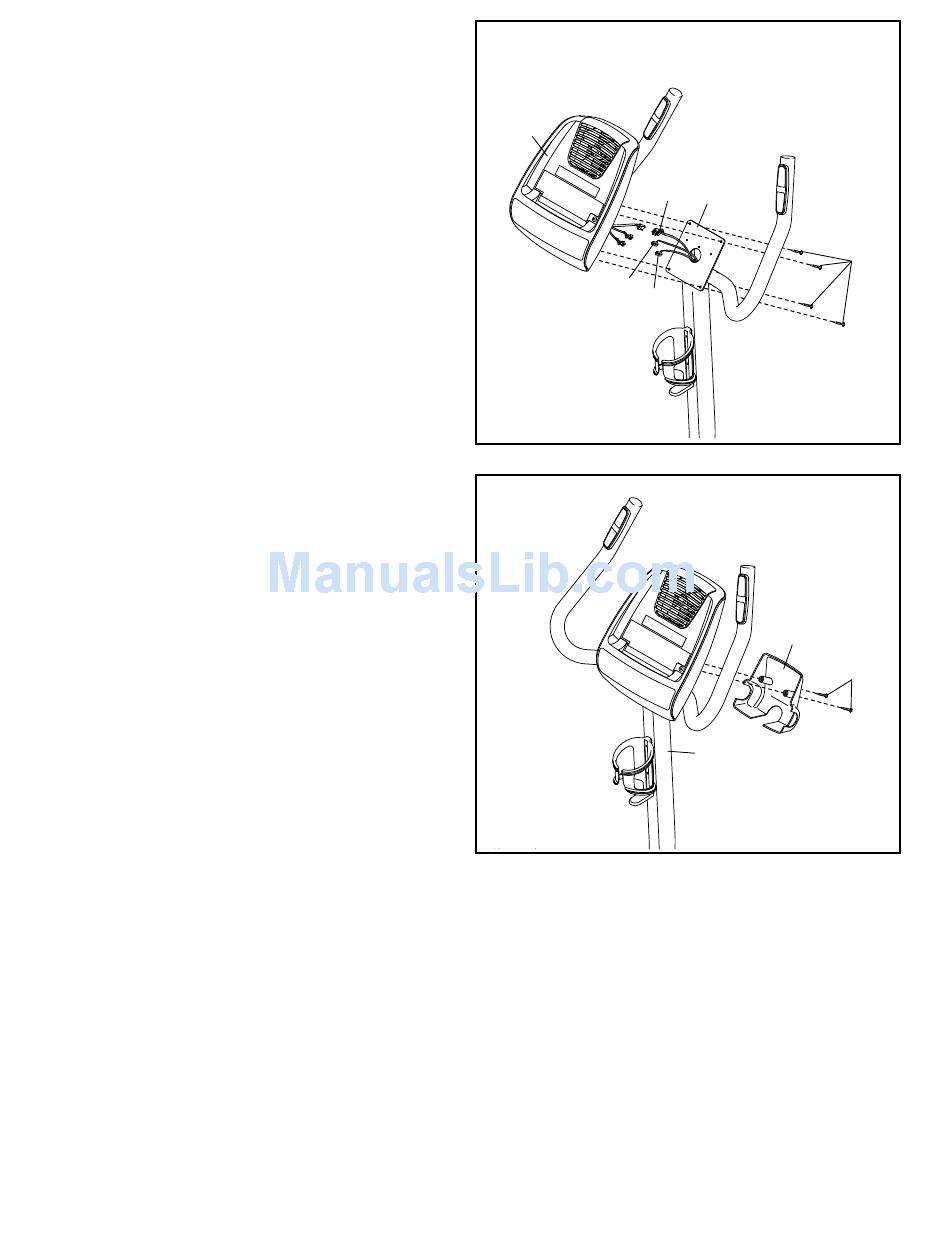

11. While a second person holds the Console (6)
near the Upright (3), connect the wires on the
Console to the Upper Wire (32) and to the Right
and Left Pulse Wires (42, 28).
Insert the excess wire into the Upright (3) or into
the Console (6).
Tip: Avoid pinching the wires. Attach the
Console (6) to the Upright (3) with four M4 x
16mm Screws (40).
12. Attach the Handlebar Cover (19) to the Upright
(3) with two M4 x 16mm Screws (40).
11
6
42
28
12
11
Avoid pinching
the wire
32
3
19
3
40
40
