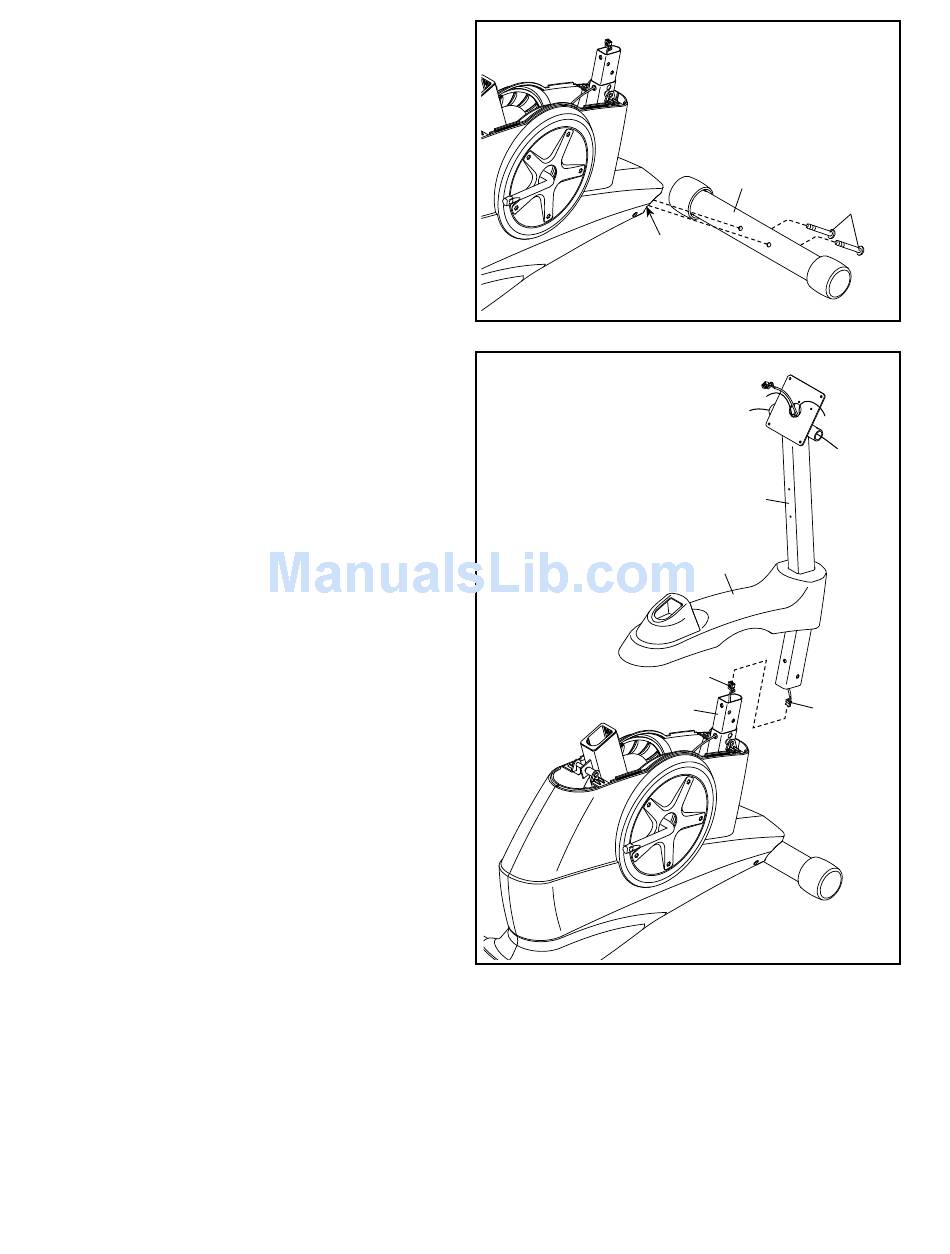

3. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 75mm Screws (36).
Remove the packing material.
4. Orient the Upright (3) and the Top Shield (9) as
shown.
Have a second person hold the Upright (3) and
the Top Shield (9) near the Frame (1) until you
complete step 4.
Connect the Upper Wire (32) to the Lower Wire
(31). Then, pull the excess Upper Wire out of the
top of the Upright (3).
3
4
7
2
1
3
9
31
1 32
36
