Getting Started
3.2

Connecting the Printer

Refer to Figure 4 below for proper connections.
3.2.1

Printer Power

The printers use a universal auto-sensing internal power supply that operates in the 100-
240 VAC; 50-60 Hertz range. The three-prong female end of the power cord plugs into the
mating connector located on the back of the printer. The Model 226 printer's AC power
connection is the same internally but rotated 90
Note: Verify that the printer's ON/OFF switch is switched to OFF before plugging the power
cord into an electrical outlet.
3.2.2

Communication Interfaces

The printers may be interfaced to PC's, mini-computers, main frames, and special purpose
machines. This printer offers standard serial RS-232 and 10BASE-T Ethernet.
10BASE-T Ethernet
8
° counter clockwise externally.
Auxiliary Port - only available
on the Model 426

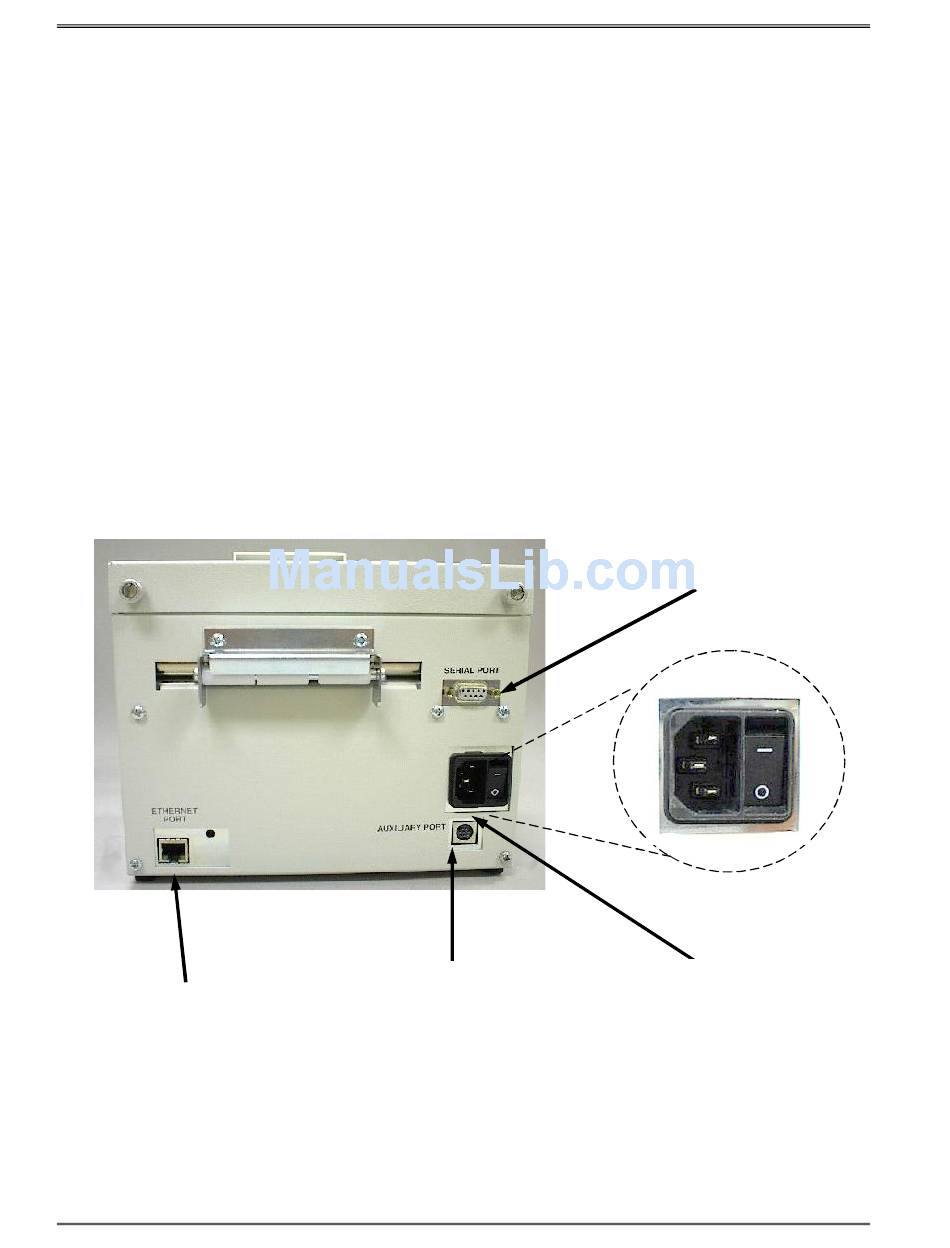

Figure 4 Connecting the Printer
Chapter 3
RS-232 Serial Port
AC Power Connection
226/426 User's Guide
