1.4

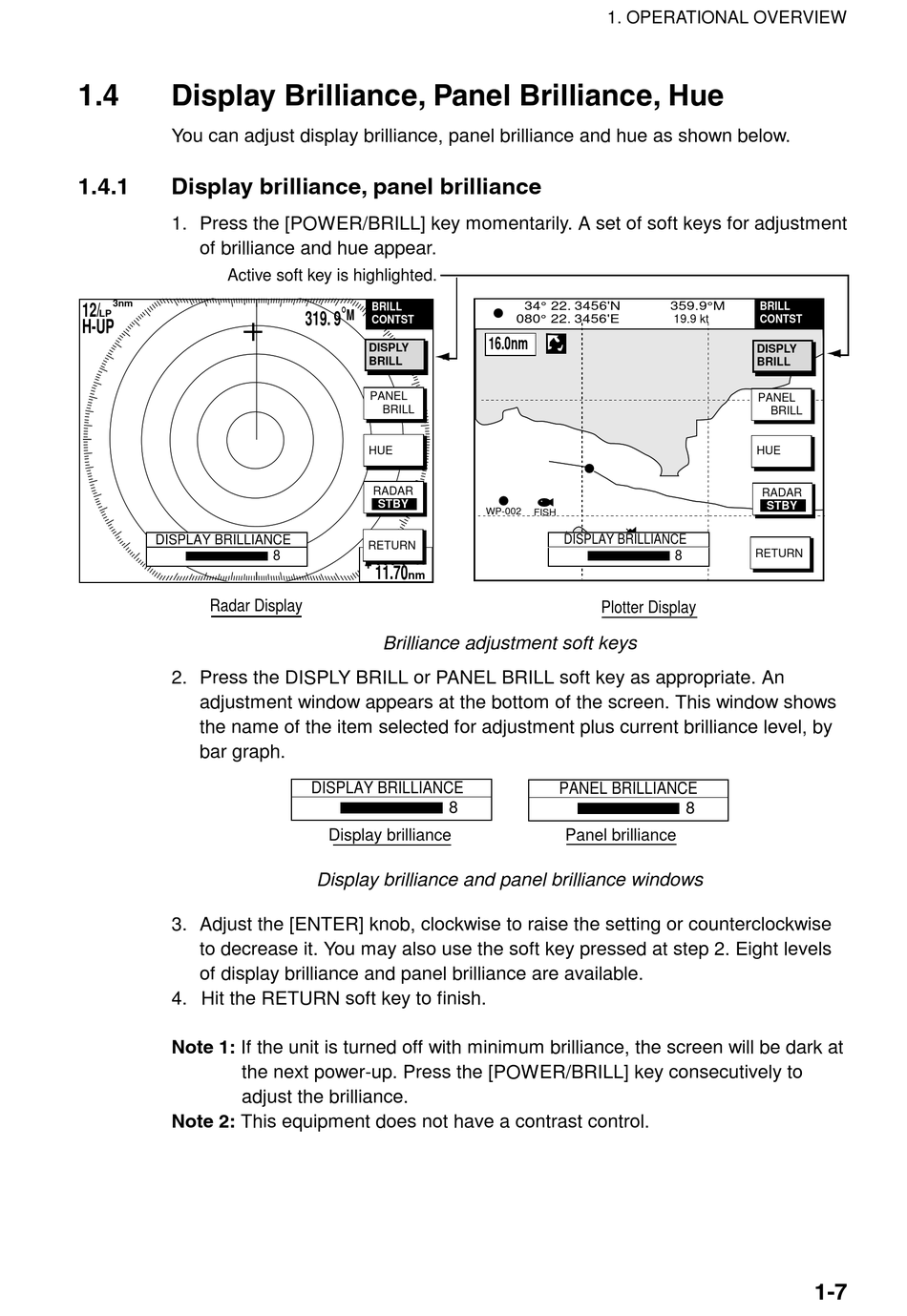

Display Brilliance, Panel Brilliance, Hue

You can adjust display brilliance, panel brilliance and hue as shown below.
1.4.1

Display brilliance, panel brilliance

1. Press the [POWER/BRILL] key momentarily. A set of soft keys for adjustment
of brilliance and hue appear.
Active soft key is highlighted.
3nm
12/
LP
H-UP
DISPLAY BRILLIANCE
Radar Display
2. Press the DISPLY BRILL or PANEL BRILL soft key as appropriate. An
adjustment window appears at the bottom of the screen. This window shows
the name of the item selected for adjustment plus current brilliance level, by
bar graph.
3. Adjust the [ENTER] knob, clockwise to raise the setting or counterclockwise
to decrease it. You may also use the soft key pressed at step 2. Eight levels
of display brilliance and panel brilliance are available.
4. Hit the RETURN soft key to finish.
Note 1: If the unit is turned off with minimum brilliance, the screen will be dark at
the next power-up. Press the [POWER/BRILL] key consecutively to
adjust the brilliance.
Note 2: This equipment does not have a contrast control.
BRILL
M
319. 9
CONTST
DISPLY
BRILL
PANEL
BRILL
HUE
RADAR
STBY
RETURN
8 359.9 ˚R
+
11.70
nm
Brilliance adjustment soft keys
DISPLAY BRILLIANCE
Display brilliance
Display brilliance and panel brilliance windows
1. OPERATIONAL OVERVIEW
34 22. 3456'N
080 22. 3456'E
16.0nm
WP-002
FISH
DISPLAY BRILLIANCE
BRIDGE
Plotter Display
PANEL BRILLIANCE
8
Panel brilliance
BRILL
359.9 M TRIP NU
19.9 kt CONTST 99.9 nm
DISPLY
BRILL
PANEL
BRILL
HUE
RADAR
STBY
RETURN
8
8
1-7
