MARINE RADAR MODEL1823C-BB
MARINE RADAR MODEL1833C-BB
MARINE RADAR MODEL1933C-BB
MARINE RADAR MODEL1943C-BB
MARINE RADAR MODEL1953C-BB
COLOR VIDEO PLOTTER GD-1900C-BB
PRINTED IN JAPAN

Advertisement

Table of Contents
loading

Related Manuals for Furuno NAVNET 1823C-BB

Summary of Contents for Furuno NAVNET 1823C-BB

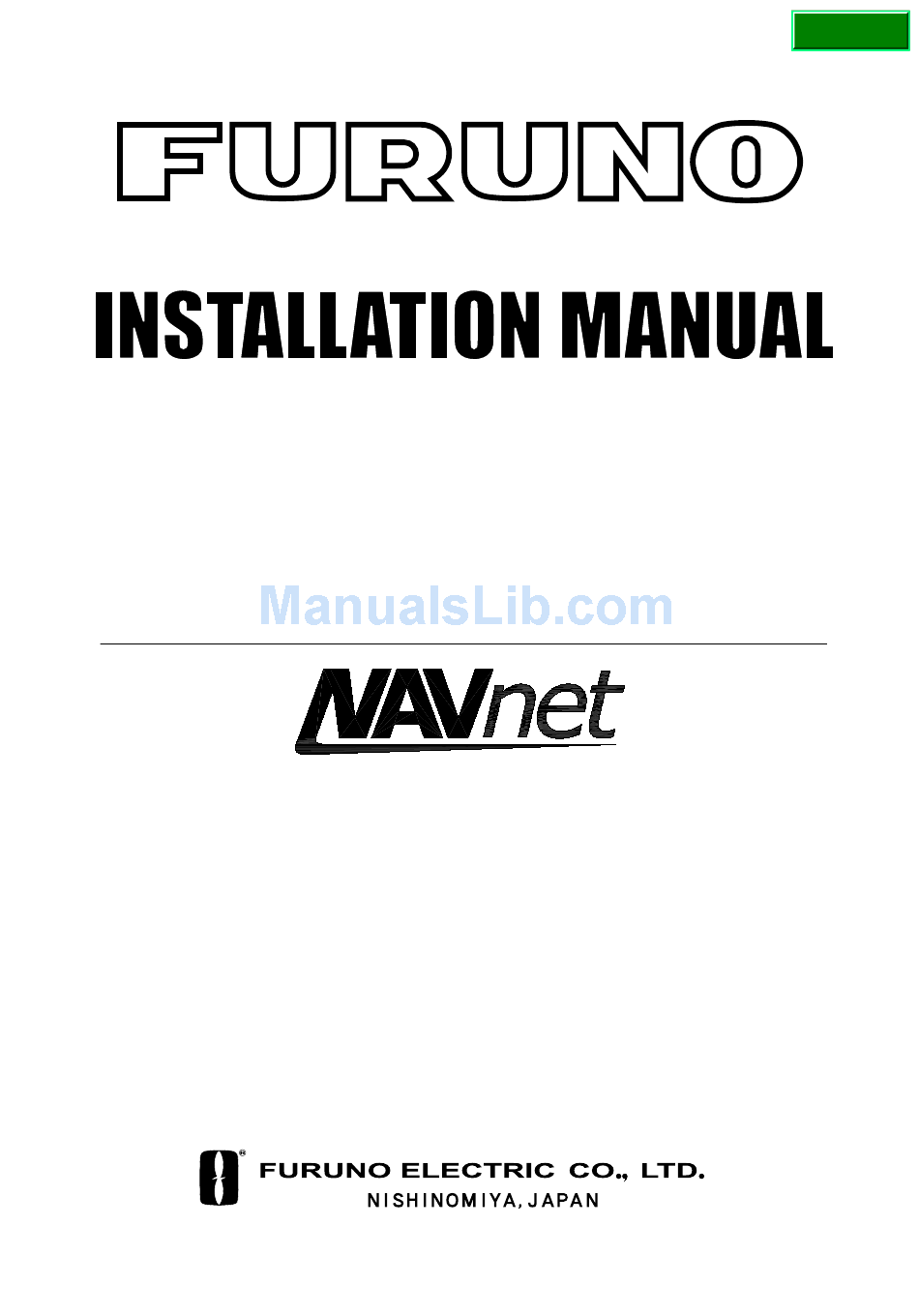

  • Page 1 Back MARINE RADAR MODEL1823C-BB MARINE RADAR MODEL1833C-BB MARINE RADAR MODEL1933C-BB MARINE RADAR MODEL1943C-BB MARINE RADAR MODEL1953C-BB COLOR VIDEO PLOTTER GD-1900C-BB PRINTED IN JAPAN...
  • Page 2 9-52 Ashihara-cho, 9-52 Ashihara-cho, Nishinomiya 662-8580, JAPAN Nishinomiya 662-8580, JAPAN Telephone : 0798-65-2111 Telephone : 0798-65-2111 0798-65-4200 0798-65-4200 All rights reserved. All rights reserved. Printed in Japan Printed in Japan Pub. No. IME-35320-D Pub. No. IME-35320-D ( ( AKMU AKMU ) ) M1803C-BB_GD1900C-BB M1803C-BB_GD1900C-BB The paper used in this manual is elemental chlorine free.
  • Page 3 Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible - Ask your FURUNO representative or dealer to provide this feature. MODEL MODEL 1823C-BB...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS EQUIPMENT LISTS ... iii SYSTEM CONFIGURATIONS... v 1. MOUNTING ... 1-1 1.1 Mounting the Control Unit...1-1 1.2 Mounting the Processor Unit ...1-4 1.3 Mounting the Antenna Unit of MODEL1823C-BB ...1-5 1.4 Mounting the Antenna Unit of MODEL1833C-BB ...1-13 1.5 Mounting the Antenna Unit of MODEL1933C-BB/1943C-BB/1953C-BB ...1-18 1.6 Mounting the Power Supply Unit of MODEL1953C-BB ...1-27 1.7 Mounting the Memory Card Interface Unit ...1-28...

  • Page 5: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Control unit RCU-017 Processor unit RPU-014 RSB-0094-0075 RSB-0071-057 XN10A-RSB-0070-064 XN10A-RSB-0073-064 Antenna unit XN12A-RSB-0070-059 XN12A-RSB-0073-059 XN12A-RSB-0072-060 XN12A-RSB-0073-060 XN13A-RSB-0072-060 Power supply unit PSU-005 Memory card CU-200-NAVBB-5 interface unit CU-200-NAVBB-10 CP03-26000 CP03-26100 CP03-25900 CP03-25401 CP03-16901 CP03-21800 CP03-21810 CP03-21820 Installation materials CP03-21830...
  • Page 6 Optional supply Name Type PR-62 Rectifier RU-3423 External buzzer XH3-BZ-L970 MJ-A6SPF0014-010 MJ-A6SPF0014-050 MJ-A6SPF0014-100 MJ-A6SPF0014-200 MJ-A6SPF0014-300 MJ-A6SPF0012-050 MJ-A6SPF0012-100 MJ-A6SPF0003-050 MJ-A6SPF0009-100 Cable assy. MJ-A6SPF0007-100 MJ-A7SPF0007-050 MJ-A6SRMD/TM11AP8-005 3COX-2P-6C 5M 3COX-2P-6C 10M MJ-B24LPF0010-100 MJ-B24LPF0010-200 MJ-B24LPF0010-300 ARP kit ARP-11 Mounting OP03-92 bracket (1) Mounting OP03-93 bracket (2) Chart card RAM card...

  • Page 7: System Configurations

    SYSTEM CONFIGURATIONS All NavNet products incorporate a "network circuit board" to integrate each NavNet product on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is assigned an IP address to enable transfer of images between other NavNet products. For example, video plotter pictures can be transferred to a radar and vice versa.
  • Page 8 Single-unit NavNet system (GD-1900C-BB) Control unit RCU-017 SAVE SAVE HIDE HIDE CLEAR CLEAR SHOW SHOW RANGE RANGE ALARM ALARM DISP DISP MENU MENU GAIN GAIN YZ& YZ& POWER POWER PUSH TO ENTER PUSH TO ENTER Memory card interface unit CU-200 Other NavNet system (Model 1833C-BB, etc.)
  • Page 9 Three-or-more-unit NavNet system Radar Antenna Unit Radar Antenna Unit GPS Receiver GP-310B/320B GPS Receiver GP-310B/320B RADAR RADAR PLOTTER PLOTTER Radar data Plotter data Sounder data Sounder data Facsimile data Network Sounder Facsimile Network Sounder ETR-6/10N Receiver ETR-6/10N ETR-30N FAX-30 ETR-30N (option) (option) (option)
  • Page 10 Two-unit NavNet system Radar Antenna Unit Radar Antenna Unit GPS Receiver GP-310B/320B GPS Receiver GP-310B/320B RADAR RADAR PLOTTER PLOTTER Radar, plotter data Radar, plotter data Two-unit NavNet system viii...

  • Page 11: Mounting

    MOUNTING Mounting the Control Unit The control unit can be installed on a desktop or flush mounted in a console or panel. For flush mounting, the optional flush mount kit is required. When selecting a mounting location for the control unit keep the following in mind: Keep the control unit out of direct sunlight.
  • Page 12 Mounting procedure Flush mounting Follow the procedure below to mount the control unit on a panel with accessories FP03-10001. 1. Prepare a cutout in the mounting location, referring to the outline drawing at the end of this manual. 2. Set the control unit to the cutout. 3.
  • Page 13 Desktop mounting Use the optional desktop mount kit FP03-09901 (Code number 008-443-540). Name Hanger fixture Hanger fixture Tapping screw Hex bolt 1. Fix the hanger fixture 19-023-1062 on a desktop with four tapping screws (5x20). 2. Fix the hanger fixture 19-023-1061 to the rear panel of the control unit with four M4x10 (supplied as accessories).

  • Page 14: Mounting The Processor Unit

    Mounting the Processor Unit The unit can be mounted on the deck, a desktop or on a bulkhead. Select a mounting location considering the points below. Locate the unit out of direct sunlight. Select a location where temperature and humidity are moderate and stable. Consider the length of the cable connected among the processor unit, antenna unit (or power supply unit) and control unit.

  • Page 15: Mounting The Antenna Unit Of Model1823C-Bb

    Mounting the Antenna Unit of MODEL1823C-BB Mounting considerations When selecting a mounting location for the antenna unit keep in mind the following points. Install the antenna unit on the hardtop, radar arch or on a mast on an appropriate platform. (For sailboats, a mounting bracket is optionally available.) It should be placed where there is a good all-round view with, as far as possible, no part of the ship’s superstructure or rigging intercepting the scanning beam.
  • Page 16 Mounting the antenna unit of MODEL1823C-BB 1. Remove mounting hardware at the bottom of the antenna unit; four each of hex. bolts (M10X20), spring washers and flat washers. Save mounting hardware to use it to fix the antenna unit to the mounting platform later on. Cable entry Antenna unit, showing location of mounting hardware 2.
  • Page 17 Remove and discard the packing material. 4. The mounting base is fitted with a snap holder, which may be used to hang the cover after removal. Use the hole next to screw hole inside the cover to hang it. Unfasten the snap assy. with the string attached at the holder in the mounting base. Unwind the string.
  • Page 18 5. Unfasten the rotation detector cable from the cable clamps. 6. Unfasten 16 screws ( core case and core case cover. Cable clamps Shield plate Pan head screws M4x8 9 pcs. Caution: Be careful not to pinch the rotation detector cable when remounting the shield plate.
  • Page 19 7. Pass the antenna cable with connector through the cable gland, gasket and cable entrance of the antenna unit, and then tighten cable gland. Note 1: Be sure the shrink tube on the antenna cable does not contact the gasket. Note 2: Pinch the gasket tightly and insert it into the cable entrance.
  • Page 20 9. Attach connectors of the antenna cable to the locations shown in the figure below, and then fasten a pan head screw M4x10 to fix shield cable and core case (removed at step J810 J809 (13 pin) (4 pin) J801 (9 pin) Antenna unit, connector location and fixing the shield cable w/core case 10.
  • Page 21 12. Pass the cable from the rotation detector through two cable clamps. Cable clamps Cable tie (Another should be inside.) Antenna unit, clamping the rotation detector cable 13. Follow the instructions on the label inside the mounting base to secure the snap assy. 14.
  • Page 22 M8 x 20 Mounting plate M8 x 20 Bracket (1) Fixing plate Support plate (2) Bracket (2) Support plate (1) M8 x 20 M4 x 12 (A) Assembling the mounting bracket M10 x 25 (supplied with antenna unit) (B) Fastening antenna to mounting bracket How to assemble and mount the optional mounting bracket 1-12...

  • Page 23: Mounting The Antenna Unit Of Model1833C-Bb

    Mounting the Antenna Unit of MODEL1833C-BB Mounting considerations See the mounting considerations for the MODEL1823C-BB on page 1-5. The compass safe distance of 0.90 meters (standard compass) and 0.70 meters (steering compass) should be observed to prevent deviation of the magnetic compass. Mounting the antenna unit of MODEL1833C-BB 1.
  • Page 24 Effective thread length 25 mm Flat washer Spring washer How to fasten the radome base to the mounting platform Wiring and final preparation 4. Drill a hole of approx. 20 mm diameter through the deck or bulkhead to run the signal cable between the antenna unit and the processor unit.
  • Page 25 one of the screws of the cable clamping plate. 9. Attach three connectors of the signal cable to respective receptacles as shown below. J801 Cable entry to one of the screws of the cable clamping plate Signal cable, antenna unit side J802 MD-9208 J611...
  • Page 26 10. Attach the EMI core supplied as shown below. Cable entrance Cable clamping plate EMI core E04SS251512 (Above cable clamping plate) 11. Fix the shield cover. Do not pinch the cable. 12. Attach the radome cover, aligning triangle mark on radome cover with that on radome base.
  • Page 27 Mounting the optional mounting bracket A mounting bracket for fastening the antenna unit for the MODEL1833C-BB to a mast on a sailboat is optionally available. Mounting bracket 1 Type: OP03-92 Code No.: 008-445-070 Hex. bolt Hex. bolt Mounting plate Support plate (1) Support plate (2) Bracket (1) Bracket (2)

  • Page 28: Mounting The Antenna Unit Of Model1933C-Bb/1943C-Bb/1953C-Bb

    Mounting the Antenna Unit of MODEL1933C-BB/1943C-BB/1953C-BB Mounting considerations The antenna unit is generally installed either on top of the wheelhouse or on the radar mast on a suitable platform. Locate the antenna unit where there is a good all-round view. Any obstruction will cause shadow and blind sectors.
  • Page 29 Mounting the antenna unit of MODEL1933C-BB/1943C-BB/1953C-BB Referring to the outline drawing at the back of this manual, drill five holes in the mounting platform: four holes of 15 mm diameter for fixing the antenna unit and one hole of 25-30 mm diameter for the signal cable.
  • Page 30 Mounting the antenna unit The antenna unit can be mounted using the fixing holes on the outside (200 x 200 mm) or inside (140 x 150 mm) the antenna unit. Using outside fixing holes of the antenna housing Use the hex head bolts (supplied) to mount the antenna unit as below. 1.
  • Page 31 3. Insert four hex bolts (M12x60, supplied) and seal washers (Ф30, supplied) from the top of the antenna housing, as shown below. 4. Pass flat washers (M12, supplied), spring washers (M12, supplied) and nuts (M12, supplied) onto hex bolts. Fasten by tightening nuts. Do not fasten by tightening the hex bolts;...
  • Page 32 8. Coat ground terminal and ground point with silicone sealant as shown below. Ground wire Ground wire GROUND TERMINAL How to coat ground point and ground terminal with silicone sealant 1-22 Hex bolt Flat washer Flat washer Spring washer Hex nut Silicone sealant Hex nut...
  • Page 33 Using inside fixing holes of the antenna housing This method requires removal of the RF unit in the antenna unit to access inside fixing holes. Use hex head bolts, flat washers, spring washers and nuts (local supply) to mount the antenna unit, confirming length of bolts. 1.
  • Page 34 Connecting the signal cable Only the signal cable runs from the processor unit (1953C-BB: power supply unit) to the antenna unit. In order to minimize the chance of picking up electrical interference, avoid where possible routing the signal cable near other onboard electrical equipment. Also, avoid running the cable in parallel with power cables.
  • Page 35 Vinyl sheath within 4 cm Plate Flat washer How to fix signal cable in cable gland 6. Unfasten four screws shown in the figure below. 7. Pass the signal cable through the cable protector. Tubing CABLE GLAND Four screws Antenna unit chassis, cover opened Antenna unit chassis, cover opened Shield Bolt...
  • Page 36 8. Connect the signal cable to the RTB Board (03P9249 or 03P9250), referring to the interconnection diagram and the figure below. 9. Attach three EMI cores to the signal cable as shown below. Lead in cable here. EMI core RFC-13 10.

  • Page 37: Mounting The Power Supply Unit Of Model1953C-Bb

    Mounting the Power Supply Unit of MODEL1953C-BB A power supply unit is shipped with the M1953C-BB, because of its high power consumption. The power supply unit can be installed almost anywhere provided the location is dry, well-ventilated, sufficient maintenance space is provided and is installed within 5 m (cable length) from the processor unit.

  • Page 38: Mounting The Memory Card Interface Unit

    Mounting the Memory Card Interface Unit Flush mounting This unit can be flush-mounted in a panel with the standard installation materials. 1. Prepare a cutout in the mounting location, referring to the outline drawing at the end of this manual. 2.

  • Page 39: Wiring

    2. WIRING Standard Wiring All wirings are terminated at the rear of the processor unit. Antenna unit RSB-0094-0075 RSB-0071-057 Camera Processor Unit RPU-014 MONITOR POWER F.G. OUTPUT 12 VDC 3COX-2P-6C (5/10 m) NTSC/PAL RGB OUT External OPTION Buzzer CARD SLOT CAUTION The processor unit and power supply unit are shipped with...
  • Page 40 DJ-1 For MODEL1823C-BB/1833C-BB/1933C-BB/1943C-BB/1953C-BB, remove the waterproofing cap from the DJ-1 port on the processor unit and discard it. GD-1900C-BB: Do not remove the waterproofing cap. Wrap the connector nut and cap with vinyl tape as shown below. Waterproofing cap and connector nut, sectional view DATA1 to DATA3 Other equipment can be connected to DATA1-DATA3 as shown below.
  • Page 41 Other NavNet equipment should be connected to the NETWORK port, with the optional cable MJ-A6SPF0014. Available equipment are shown below. Radar MODEL1823C-BB/ 1833C-BB/1933C-BB/ 1943C-BB/1953C-BB GD-1900C-BB or other type of FURUNO NavNet radar. JUNCTION BOX Power supply DC/DC CONVERTER Type: Insulation Plotter Network sounder...

  • Page 42: Wiring Of Power Supply Unit (Model1953C-Bb Only)

    2.2 Wiring of Power Supply Unit (MODEL1953C-BB only) 1. Loosen three M4 screws to remove the cable clamp of the power supply unit PSU-005. 2. Loosen six M4 screws to remove the unit cover. 3. Attach the VL connector of power supply cable VL3P-VV-S2X2C-AA050 (supplied as installation material) to J1 on the POWER Board.
  • Page 43 Note: The power for the power supply unit and processor unit must be drawn from the same power switch on the ship’s power terminal board. Ship's power terminal board Replacement of the fuse The power supply unit is shipped with a 15 A fuse. Replace the 15 A fuse with a 7 A fuse (supplied) when the ship’s battery is 24 VDC.

  • Page 44: Connection Of Cu-200

    2.3 Connection of CU-200 1) Connection between one processor unit and one memory card IF unit Connect as shown in the figure below. 12 VDC Processor unit MJ-A3SPF0026-050/100 (5/10 m) OUTPUT 12VDC MJ-A6SPF/TM11AP8C050/100(5/10m) NETWORK 2) Connection between one memory card IF unit and multiple processor units Prepare optional cable MJ-A6SPF0014-010/050/100/200/300 (1, 5, 10, 20 or 30 m), and procure HUB and CAT5 STP cable locally.

  • Page 45: Adjustment

    3. ADJUSTMENT How to Access the Installation Menu Set up the equipment through the installation menu after completing the installation. To access the installation menu, follow the steps below. 1. With the display powered off, hold down the [MENU] key. Then, momentarily press the [POWER/TX] key while continuing to hold the [MENU] key down.

  • Page 46: Network Setup Menu

    NETWORK SETUP Menu Set up the NavNet network to communicate with other NavNet equipment. 1. Open the INSTALL SETUP menu. 2. Press the A: NETWORK SETUP soft key. IP ADDRESS HOST NAME RADAR SOURCE CHART SOURCE* SOUNDER SOURCE AUX SOURCE SUBNET MASK GATEWAY ADDRESS OFFSET PORT NUMBER...
  • Page 47 Item IP ADDRESS This address is assigned at the factory. Change the address (last three digits; 001 to 254) when like models are connected directly or through the hub. Do this change before connecting the equipment to the other equipment or hub in order to distinguish equipment. Do not set the same IP address in the network.

  • Page 48: Radar Setup Menu

    3.3 RADAR SETUP Menu After setting up the network, do the following in order to adjust the radar. Open the INSTALL SETUP menu, and then press the B: RADAR SETUP soft key to display the RADAR SETUP menu. When the message “RADAR DOES NOT TRANSMIT. TRANSMIT RADAR?”...
  • Page 49 ANTENNA TYPE Select the antenna type connected to your display unit. Default setting is “F”. Select the antenna type referring to the table shown below. After selecting type, press the [ENTER] knob. MODEL1823C-BB MODEL1833C-BB MODEL1933C-BB MODEL1943C-BB MODEL1953C-BB TUNING MODEL 1953C-BB: Go to “Tuning for 1953C-BB power supply unit”, and then “Antenna tuning”.
  • Page 50 Antenna tuning Initialize the tuning as follows. 1. Transmit the radar. 2. Open the RADAR SETUP menu, and then select TUNING by the trackball or [ENTER] knob. 3. Press the A: EDIT soft key to show the setting window. 4. Select ON. 5.
  • Page 51 4. Press the A: EDIT soft key to show the setting window. 5. Select ON and press the C: ENTER soft key to show the radar display. PUSH ENTER KNOB AFTER ADJUSTING SWEEP TIMING. 6. Rotate the [ENTER] knob to straighten the target selected at step 2, and then press the E: RETURN soft key to finish.
  • Page 52 HEADING ADJUSTMENT You have mounted the antenna unit facing straight ahead in the direction of the bow. Therefore, a small but conspicuous target dead ahead visually should appear on the heading line (zero degrees). In practice, you will probably observe some small error on the display because of the difficulty in achieving accurate initial positioning of the antenna unit.
  • Page 53 M. B. (Main Bang) SUPPRESSION Main bang (black hole), which appears at the display center on short ranges, can suppressed as follows. 1. Open the RADAR SETUP menu and select M.B. SUPPRESSION by trackball. 2. Press the A: EDIT soft key to show the setting window. 3.
  • Page 54 TRUE when connecting with a true heading compass. For your reference, when connecting with the FURUNO Satellite Compass SC-60/120 or Integrated Heading Sensor PG-1000, set the heading data as in the table shown below.

  • Page 55: Checking Magnetron Heater Voltage

    Navigation Data Source The NAV SOURCE SETTINGS menu mainly selects the source of nav data. For navigator other than the FURUNO GP-310B/320B, speed averaging and local time offset (to use local time instead of UTC time) are also available from this menu.
  • Page 56 2. Select POSITION SOURCE and then press the A: EDIT soft key to show the position source window. 3. Select FURUNO BB GPS, GP, LC or ALL as appropriate and press the C: ENTER soft key. FURUNO BB GPS: GPS Receiver GP-310B/320B...
  • Page 57 LOCAL TIME OFFSET GEODETIC DATUM POSITION SMOOTHING SPD/CSE SMOOTHING GPS SPEED AVERAGE LATITUDE OFFSET LONGITUDE OFFSET DISABLE SATELLITE LATITUDE LONGITUDE ANTENNA HEIGHT GPS FIX MODE COLD START e) Select LOCAL TIME OFFSET and press the A: EDIT soft key. f) Enter time difference between local time and UTC time. Use the A: + < - -> - soft key to switch from plus to minus and vice versa.
  • Page 58 Contents of GPS sensor settings menu Item Local Time Offset Allows the user to use local time (instead of UTC time). Enter time difference between local time and UTC time. Use the A:+ < - - > - soft key to switch from plus to minus and vice versa.
  • Page 59 Contents of GPS sensor settings menu (con’t.) Item Longitude Offset Offset for longitude. Use the A:W < - - > E soft key to switch coordinate. Disable Satellite Every GPS satellite is broadcasting abnormal satellite number (s) in its Almanac, which contains general orbital data about all GPS satellites, including those which are malfunctioning.

  • Page 60: Setting Up Data Ports

    3. Press the A: GPS/NMEA PORT soft key for DATA 1 port, or B: NMEA PORT soft key for DATA 2 port as appropriate. One of the following displays appears depending on your selection. FURUNO GPS SENSOR YES OUTPUT FORMAT LAT/LON FORMAT...
  • Page 61 7. Select sentence and press the A: ON/OFF soft key to show ON (output) or “- -“ (no output) as appropriate. 8. Press the E: RETURN soft key. 9. Press the [MENU] key to quit. Item FURUNO GPS Selects whether the GPS Receiver Sensor GP-310B/320B is connected to the DATA1 or DATA2 port or not.

  • Page 62: Remote System Setting

    3.7 Remote System Setting MODEL 1800C/1900C-BB series NavNet system can be used as a remote system for FAR/FR-2805, 2105 series, etc., by using optional cable assy MJ-B24LPF0008-100 (10 m), 200 (20 m) or 300 (30 m). To use the processor unit as a remote system, do the following: 1.

  • Page 63: Options

    4. OPTIONS External Buzzer Connection The optional external buzzer provides a louder alert when the alarm is violated. External buzzer Type: XH3-BZ-L970 Code no.: 000-146-422 1. Unfasten 11 screws and 9 connectors to remove the cover. 2. Use a knife to cut a “cross” in the rubber bushing on the rear cover. 3.

  • Page 64: Arp Kit Arp-11

    ARP Kit ARP-11 Necessary parts Name: ARP kit Type: ARP-11 Code no.: 008-523-050 Name ARP Board 18P9013 Pan head screw M3x6 C2700W Spacer* SQ15 Spring washer* M3 C5191W 1. Unfasten 11 screws and 9 connectors to remove the cover. 2. Disconnect P1361 and P1357 from the 19P1015 board and unfasten six screws to remove the 19P1015 board and shield plate.
  • Page 65 3. Mate P107 on the ARP Board to J112 on the 19P1001 board and fasten the ARP board with four screws. 4. Mount the shield plate and the19P1015 board and connect P1361 and P1357 to the 19P1015. 5. Reassemble the processor unit. 19P1001 board J112...
  • Page 66 This page is intentionally left blank.
  • Page 67 MODEL 1823C-BB MODEL 1833C-BB...
  • Page 70 M1933C-BB/1943C-BB...

  • Page 73: Packing Lists

    ＰＡＣＫＩＮＧ ＬＩＳＴ RCU-017-E-5-CS/RCU-017-E-10-CS N A M E ユニット UNIT 操作部 CONTROL UNIT その他部品 OTHER PARTS ﾊｰﾄﾞｶﾊﾞｰ HARD COVER 付属品 ACCESSORIES 付属品 ACCESSORIES 工事材料 INSTALLATION MATERIALS ｹｰﾌﾞﾙ組品MJ CABLE ASSY. ｹｰﾌﾞﾙ組品MJ CABLE ASSY. (*)印のｹ-ﾌﾞﾙ組品は選択出来ます。 (*) MARKED CABLES ARE SELECTABLE. （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） DESCRIPTION/CODE №...
  • Page 74 付属品表 付属品表 付属品表 付属品表 ACCESSORIES 番 号 名  称 NAME ﾌﾗｯｼｭﾏｳﾝﾄ金具 MOUNTING PLATE 蝶ﾅｯﾄ WING NUT +-ﾅﾍﾞｾﾑｽﾈｼﾞB WASHER HEAD SCREW 蝶ﾎﾞﾙﾄ WING SCREW （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 75 ＰＡＣＫＩＮＧ ＬＩＳＴ PSU-005 N A M E ユニット UNIT 空中線電源部 POWER SUPPLY UNIT 予備品 SPARE PARTS ﾋｭｰｽﾞ FUSE ﾋｭｰｽﾞ FUSE 工事材料 INSTALLATION MATERIALS +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ SELF-TAPPING SCREW その他工材 OTHER INSTALLATION MATERIALS ｹｰﾌﾞﾙ組品MJ CABLE ASSY. ｹｰﾌﾞﾙ組品 CABLE ASSY. （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） DESCRIPTION/CODE №...
  • Page 76 CU-200-NAVBB-* CU-200-NAVBB-* CU-200-NAVBB-* CU-200-NAVBB-* N A M E ユニット ユニット UNIT UNIT ユニット ユニット UNIT UNIT ﾒﾓﾘｰｶｰﾄﾞｲﾝﾀｰﾌｪｲｽ MEMORY CARD INTERFACE 工事材料 工事材料 工事材料 工事材料 INSTALLATION MATERIALS INSTALLATION MATERIALS INSTALLATION MATERIALS INSTALLATION MATERIALS 工事材料 INSTALLATION MATERIALS その他工材 その他工材 その他工材 その他工材 OTHER INSTALLATION MATERIALS OTHER INSTALLATION MATERIALS OTHER INSTALLATION MATERIALS OTHER INSTALLATION MATERIALS...
  • Page 77 CU-200 工事材料表 工事材料表 工事材料表 工事材料表 INSTALLATION MATERIALS 番 号 名  称 NAME ﾊﾞﾈ座金 SPPING WASHER ﾐｶﾞｷ平座金 FLAT WASHER 六角ﾅｯﾄ 一種 HEX.NUT 寸切ﾎﾞﾙﾄ THREADED ROD （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 78 CU-200 Desktop mount kit 付属品表 付属品表 付属品表 付属品表 ACCESSORIES 番 号 名  称 NAME ﾊﾝｶﾞｰ MOUNTING BRACKET +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ +TAPPING SCREW +-ﾅﾍﾞｾﾑｽﾈｼﾞA WASHER HEAD SCREW （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.） （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
  • Page 80 Y. Hatai...
  • Page 86 Y. Hatai...
  • Page 88 D-10...
  • Page 89 ハイ アカ BEARING HD SIG. シロ クロ VIDEO ドウジク TYPE MODEL 1933C-BB/1943C-BB E.MIYOSHI 名 称 船舶用レーダー TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM C3532-C01- F 19-023-5002- 4 FURUNO ELECTRIC CO., LTD. レーダー RADAR TRIG 2C-2V COAX. VIDEO...
  • Page 90 MODEL 1953C-BB E. MYOSHI 名 称 船舶用レーダー TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM C3533-C01- F 19-023-5000- 5 FURUNO ELECTRIC CO., LTD. 空中線部 ANTENNA UNIT RSB-0072(24rmp) RSB-0073(48rmp) J821(VH9P) J823(VH4P) J824(NH13P) J822(VH2P) 03P9250 RW-4747 レーダー RADAR キ ハイ...
  • Page 91 IV-2SQ. *1 TYPE K.MIYAZAWA GD-1900C-BB 名 称 ｶﾗｰﾋﾞﾃﾞｵﾌﾟﾛｯﾀ TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME COLOR VIDEO PLOTTER INTERCONNECTION DIAGRAM 19-023-5003- 2 FURUNO ELECTRIC CO., LTD. 操作部 CONTROL UNIT RCU-017 J506 RD_DT TD_DT DC_N PWR_SW +12V SHIELD は 署 名 無...
  • Page 92 MODEL 1823C-BB/1833C-BB K.MIYAZAWA 名 称 船舶用レーダー TAKAHASHI.T 相互結線図 Y. Hatai MASS NAME MARINE RADAR INTERCONNECTION DIAGRAM C3531-C01- D 19-023-5001- 2 FURUNO ELECTRIC CO., LTD. 空中線部 ANTENNA UNIT RSB-0094/RTR-075 (MODEL1823C-BB) J801(VH9P) J809(VH4P) J810(NH13P) 03P9328 レーダー RADAR TRIG 2C-2V COAX. VIDEO は...
