5

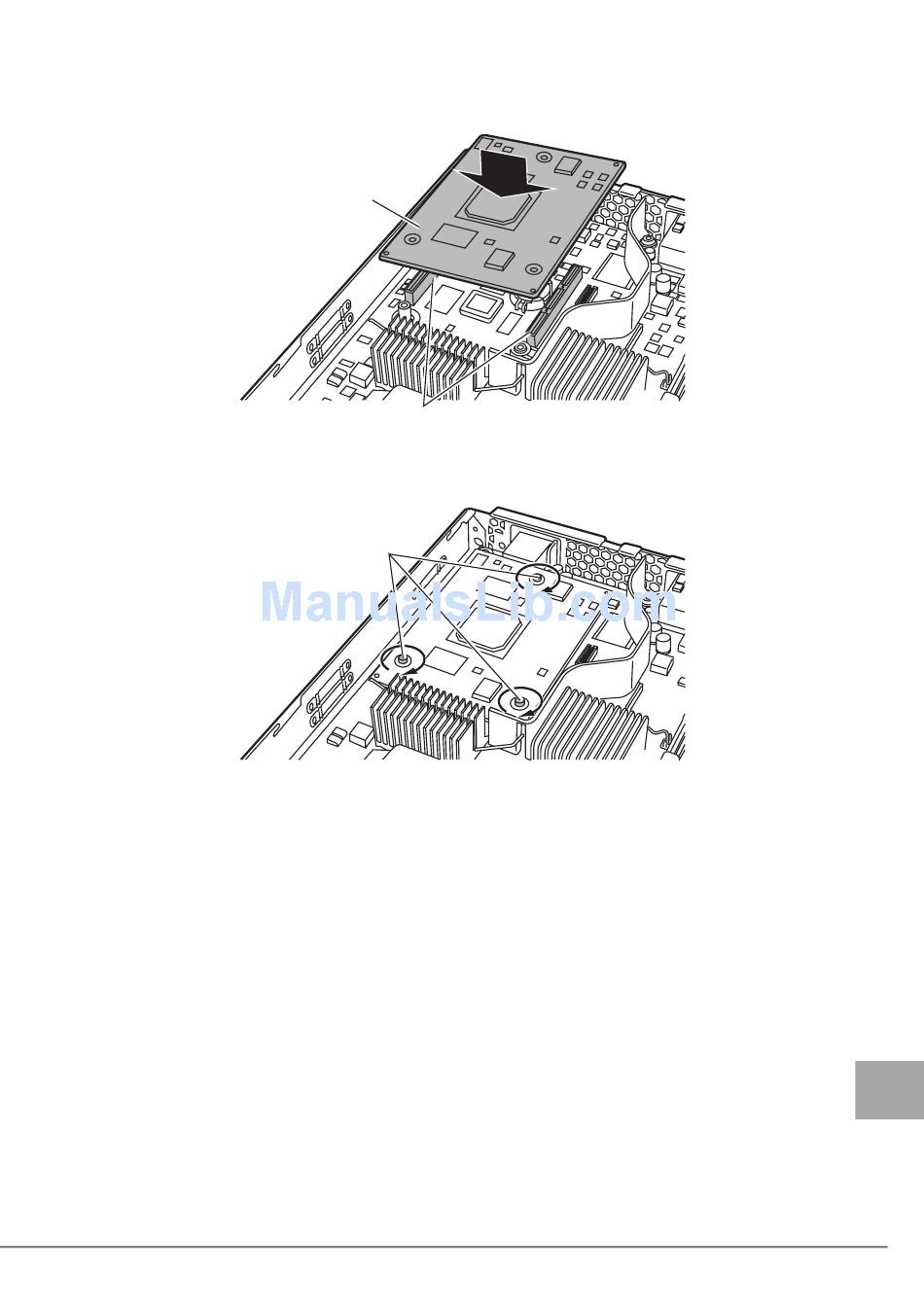

Install the 4Gbit/s FC I/O Module.
Make sure the 4Gbit/s FC I/O Module is securely on the slot.
4Gbit/s
FC I/O Module
6
Secure the 4Gbit/s FC I/O Module with the screws.
Secure the 4Gbit/s FC I/O Module with three screws included with this product.
7
Attach the top cover.
→
"7.2 Removing and Attaching the Top Cover" in "Server Blade User's Guide"
8
Install the server blade in the chassis.
→"4.2 Installing Server Blades" in "Blade Server System Unit Hardware Guide"
Expansion board slot
Screws
[Rear]
