QuickSpecs

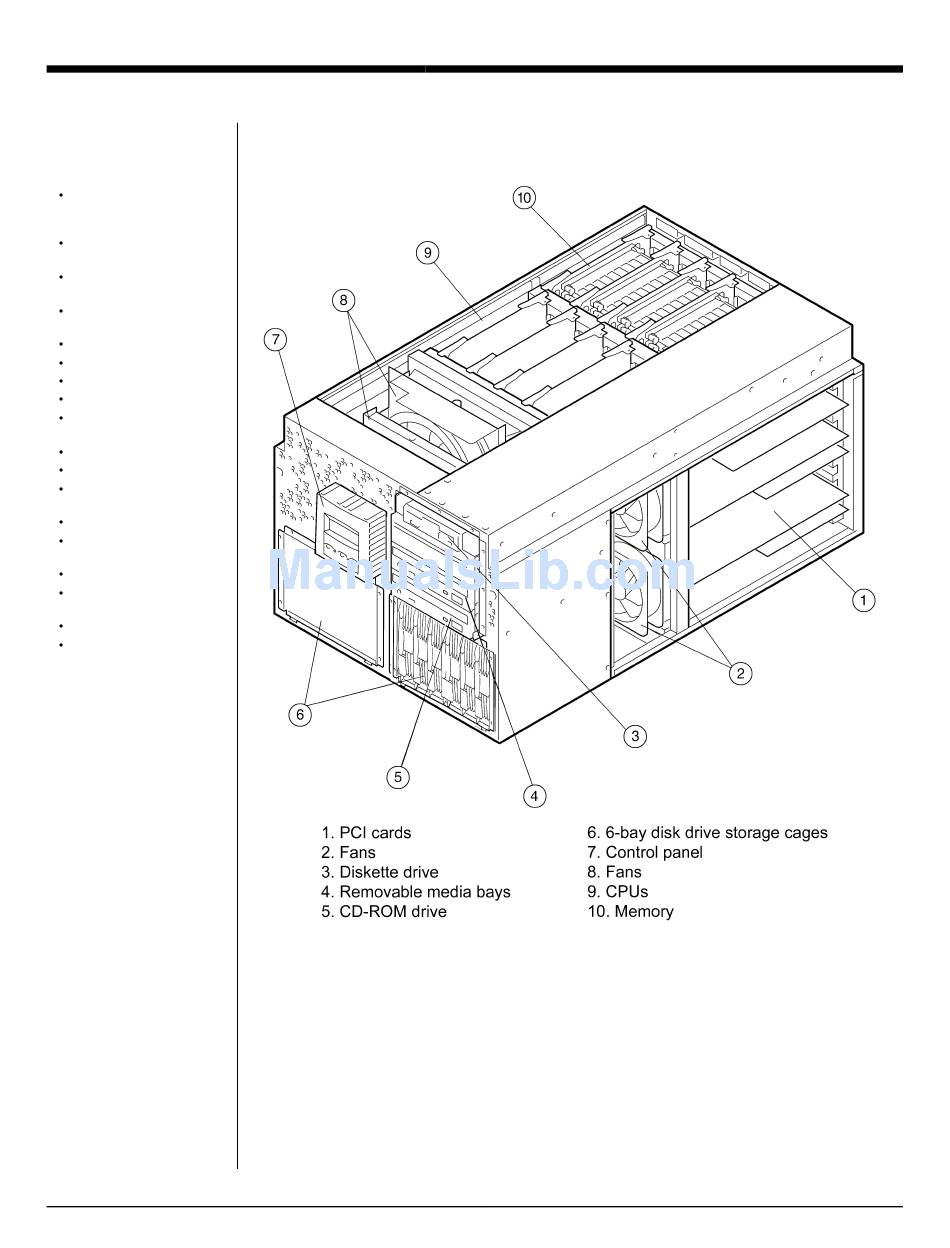

Overview
A t A G l a n c e
AlphaServer™/AlphaStation ™
ES40 Systems include:
Alpha 21264 68/833-MHz CPU
with 8-MB L2 Dual Data Rate
Cache
6-10 64-bit PCI I/O
expansion slots
512-MB, 1-GB, 2-GB, or 4-GB
memory options (AlphaServers)
512-MB memory option
(AlphaStations)
1.44-MB diskette drive
600-MB 48X IDE CD-ROM drive
Two 9-pin serial ports
One 25-pin parallel port
RMC dedicated serial port, 6-pin
MMJ connector
Dual USB ports
Keyboard and mouse port
Knockouts for two 68-pin
SCSI connections
Auto-sensing power supply
Integral remote system
management console
Customer documentation
Tru64™ UNIX™ or OpenVMS™
Factory Installed Software
90-day software warranty
Protected by HP Services,
including three-year hardware
warranty, on-site with 5 x 9 next
business day response
DA-10392
North America — Version 57 — March 18, 2003
Compaq AlphaServer ES40
Compaq AlphaStation ES40
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA-64CAA-DA - AlphaServer - ES40 Model 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compaq DA-64CAA-DA - AlphaServer - ES40 Model 2

Summary of Contents for Compaq DA-64CAA-DA - AlphaServer - ES40 Model 2

  • Page 1 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Overview A t A G l a n c e AlphaServer™/AlphaStation ™ ES40 Systems include: Alpha 21264 68/833-MHz CPU with 8-MB L2 Dual Data Rate Cache 6-10 64-bit PCI I/O expansion slots 512-MB, 1-GB, 2-GB, or 4-GB...

  • Page 2: Standard Features

    OS Support Server Extension license, Internet Express, and Secure Web Server AlphaStation ES40 Tru64 UNIX systems include pre-installed software, 2-user Base license and Compaq Open3D traditional license AlphaServer ES40 OpenVMS systems include pre-installed software, Base license with System Manager license and Enterprise Integration Server License Package for OpenVMS V3.1...
  • Page 3 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Systems/Options Step 1 Select system AlphaServer ES40 systems require the mandatory selection of the following items: Disk drive cage or StorageWorks™ shelf (Step 5) System disk drive (Step 5) System enclosures: Tower, Pedestal, or Rack Kit (Step 6)

  • Page 4: Step 3 Memory Optional

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Systems/Options Step 2 Additional CPU Modules Optional One CPU included, three additional CPUs are supported SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and Tru64 UNIX KN610-BB SMP license SMP upgrade, includes one 67/667-MHz CPU with 8-MB cache and OpenVMS...
  • Page 5 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 3 Memory Optional (continued) NOTE: Linux configurations with large memory require the installation of a patch. The patch to support greater than 2 GB of memory per system is located at: http://www.kernel.org/pub/linux/kernel/people/andrea/patches/v2.2/2.2.17...
  • Page 6 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 5 Disk Drive Cage or StorageWorks Shelf Mandatory Tower enclosure supports one system and two disk drive cages Pedestal enclosure supports one system and two disk drive cages, two Universal 42xx/43xx StorageWorks shelves or three BA36R...
  • Page 7 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 5 Disk Drive Cage or StorageWorks Shelf Mandatory (continued) Step 5c StorageWorks Model 4314R and Model 4354R Universal Drive Shelves StorageWorks Model 4314R and 4354R Ultra2 SCSI (LVD) single-bus and split- bus Universal drive shelves;...
  • Page 8 M-Series cabinets NOTE: Factory integration of an ES40 system drawer in a 9000 rackmount cabinet using rack kit, 3X-BA61R-RC, is not supported. Contact Custom Systems or Compaq Certified Integration Partner. Step 7 M-Series Cabinets M-Series cabinet enclosures support up to four systems, up to six StorageWorks shelves, and/or two BA370 enclosures;...
  • Page 9 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 7 M-Series Cabinets (continued) Cabinet Configuration Chart for AlphaServer ES40 (8U) with StorageWorks Shelves (4U) Cabinet Rack Kit Cabinet Cabinet Systems BA356 Shelves DS-SL13R 120V BA356/ Extender Height/Space Shelves DS-SL13R BA356...
  • Page 10 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 7 M-Series Cabinets (continued) Required selection of one cabinet extender for each H9A10 or H9A15 cabinet Rear Cabinet Extender Rear cabinet extender, top gun blue, for H9A10-MC/MD cabinets H9C10-TE Rear cabinet extender, top gun blue, for H9A15-MC/MD cabinets...
  • Page 11 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 8 Networking Adapters/Controllers Step 8a Networking Adapters/Controllers Mandatory Select mandatory Ethernet adapter Adapters require a minimum of Tru64 UNIX V4.0F or OpenVMS V7.2-2 Each adapter uses one PCI slot NOTE: Ethernet adapter is not required if 3X-DEPVZ-AA or KZPCM is selected as SCSI adapter for StorageWorks shelf.
  • Page 12 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 8 Networking Adapters/Controllers (continued) Step 8b – Networking Adapters/Controllers – Optional (continued) Maximum # Supported Tru64 UNIX OpenVMS Linux FDDI Single-port 100Mbps (MMF/duplex-SC) add-on daughter card for use with 4 per system...

  • Page 13: Configuring Information

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 8 Networking Adapters/Controllers (continued) Step 8c Multi-use Cables Maximum # Supported Tru64 UNIX OpenVMS Linux Ethernet, FDDI, ATM Multimode fiber optic (MMF) 62.5/125um duplex cable, with SC-to-ST connectors. BN34A-xx –xx = available lengths: (2E, 4E, 01, 03, 10, 20, 30) for 2.4, 4.5, 1, 3, 10, 20, 30 meters Multimode fiber optic (MMF) 62.5/125um duplex cable, with SC-to-SC...
  • Page 14 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 9 MEMORY CHANNEL Optional (continued) Configuring Information (continued) If nodes must be separated by a distance longer than standard copper cables allow the CCMFB option converts the output of the standard CCMAB controller or CCMLB line card to single-mode fiber optic cable.
  • Page 15 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 10 Storage Adapters/Controllers NOTE: Refer to the following chart when configuring adapters, shelves, and disks. AlphaServer ES40 Configuration Chart for Storage Adapters Storage Adapters Shelf Disk Drives Tru64 UNIX OpenVMS Linux...
  • Page 16 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 10 Storage Adapters/Controllers Maximum # Supported Tru64 UNIX OpenVMS Linux SCSI PCI 2-port PCI to Ultra3, 64-bit LVD SCSI adapter, uses one PCI slot; 3X-KZPEA-DB includes internal 68-pin and external 68-pin VHDCI connectors;...

  • Page 17: Multi-Function

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 10 Storage Adapters/Controllers Required if StorageWorks shelf is selected in Step 5 (continued) Maximum # Supported Tru64 UNIX OpenVMS Linux Multi-function PCI (32-bit, 33-MHz) multi-function (single-port 10/100 Ethernet 3X-DEPVZ-AA UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics) adapter. See Step 8.
  • Page 18 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 10 Storage Adapters/Controllers Required if StorageWorks shelf is selected in Step 5 (continued) Maximum # Supported Tru64 UNIX OpenVMS Linux BN37A-xx RAID (continued) VHDCI male-to-VHDCI male UltraSCSI cable; -xx = 02, 2E [2.5], 03, 05, 10, 20, 25 meters NOTE: Manufacturing may substitute BN37A-02 cable for specific cabinet configurations.
  • Page 19 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional Step 11a Tape Devices System includes embedded 1.44-MB diskette drive Tape Drives System includes embedded 5.25-inch half-height 600-MB 16X IDE CD-ROM drive Removable media slots provide support for up to two 5.25-inch half-height devices, or one 5.25-inch full-height removable media device;...
  • Page 20 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11a Tape Devices (continued) AIT Tape Libraries SSL2020 AIT tabletop library with one AIT 50-GB drive and 20 slots, LVD 175195-B21 SSL2020 AIT tabletop library with two AIT 50-GB drive and 20 slots, LVD...
  • Page 21 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11a Tape Devices (continued) Rackmount kit for H9Axx M-Series cabinets – required for mounting MSL5000 series in DLT/SDLT Tape Libraries 254795-001 M-Series cabinets MSL5026DLX, DLT tabletop library with one 40/80-GB DLT tape drive, LVD...
  • Page 22 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11a Tape Devices (continued) DLT/SDLT Tape Libraries (continued) ESL9326SL SDLT tape library with six 110/220-GB SDLT tape drives, LVD 234615-B21 ESL9326SL SDLT tape library with eight 110/220-GB SDLT tape drives, LVD...
  • Page 23 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11a Tape Devices (continued) 5U Rackmount Tape Drive Enclosure 5U LVD Rackmount Tape Drive Enclosure for use in H9Axx M-Series Cabinets, 0 274339-B21 drives, carbon black...
  • Page 24 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11c – External Storage Solutions/Controllers External Storage Enterprise Virtual Array Model 2C6D-B 60-Hz, includes 41U graphite storage cabinet, DS-SV110-JA Solutions/Controllers M3220 controller assembly with dual HSV110 controllers, six M5214 dual-redundant FC loop 14-bay drive enclosures, four 12-port FC loop switches;...
  • Page 25 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11c – External Storage Solutions/Controllers (continued) Fibre Channel Controller Fibre Channel Controller (HSG80), includes 256-MB cache; requires following firmware: DS-HSG80-BK 8.6-4F ACS FW (222318-B22, QB-6BUAA-SD), one per controller 8.6-4S ACS FW (222364-B22 QB-6ENAA-SC), one per controller...
  • Page 26 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 11 Storage Devices Optional (continued) Step 11d – Fibre Channel Options (continued) McData 64-port Fibre Channel SAN SAN Director 64 (1 GB) 32 ports, base model DS-DMGGD-AA Director Class Switches SAN Director 2 Gb, 64 ports (286809-B21)
  • Page 27 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 13 Monitors Optional Graphics monitors other than those listed can be used if compatible with SVGA graphics ordered with system A video cable, 6-foot/1.8-meter length, is included with all variants of monitors.
  • Page 28 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 14 Keyboards, Mouse, Power Cords, Documentation Step 14a Keyboards Optional Select country-specific keyboard and mouse only if required. All keyboards listed may not be available in all geographies. Select an opal OpenVMS keyboard for use with VT5xx text terminals.
  • Page 29 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 14 Keyboards, Mouse, Power Cords, Documentation (continued) Step 14b Mouse Optional Keyboard or Mouse Extension Cable 6-foot/1.8-meter keyboard or mouse extension cable; to extend both keyboard and 3X-BC34A-06 mouse order two cables Mouse 3-button mouse –...
  • Page 30 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 15 Console Terminal Optional Any terminal can be used as a console device Third-party console devices require an EIA-232 25-pin DSUB connector VT510 video terminal; requires keyboard, H8575-x adapter, and BC16E-x cable...
  • Page 31 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 17 Software Required selection of media and documentation for first system on site (continued) OpenVMS AlphaServer ES40 OpenVMS systems include Base license with System Manager license and Enterprise Integration Server License Package for OpenVMS Revision V3.1...
  • Page 32 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 18 Hardware and Software Support Services for Tru64 UNIX and OpenVMS Select one of the optional CarePaq™ Priority Service Packages described below that best support the customer’s operational requirements for system availability.

  • Page 33: Installation

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 18 Hardware and Software Support Services for Tru64 UNIX and OpenVMS (continued) Program Features – Principal Server (continued) Priority Gold Executive 24 x 7 HW support with Named Engineer, 2-hour response for on-site support 24 x 7 Gold SW support –...
  • Page 34 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 18 Hardware and Software Support Services for Tru64 UNIX and OpenVMS (continued) Model/CarePaq Principal Server Principal Server Subsequent Systems Subsequent Systems Priority Service 1 year 3 years 1 year 3 years...
  • Page 35 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Options Step 19 Hardware Supplemental Support Services for Linux Optional Systems include three-year hardware warranty, onsite with 5 x 9, 24-hour Hardware - Americas and Asia Pacific response time Only Options ordered as part of initial system sale take on warranty of the enclosure...

  • Page 36: Technical Specifications

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Technical Specifications Tower Configuration Dimensions (H x W x D) 20 x 15.25 x 31 in/50.8 x 38.7 x 78.7 cm Shipping Dimensions 32.2 x 24 x 40 in/82.48 x 60.2 x 101.6 cm...

  • Page 37: Cabinet Configuration

    QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Technical Specifications Cabinet Configuration H9A10 M-Series H9A15 M-Series Dimensions (H x W x D) 67 x 23.6 x 41.5 in/ 79 x 23.6 x 41.5 in/ (Depth includes rear door 170 x 60 x 105.4 cm 200 x 60 x 105.4 cm...
  • Page 38 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Technical Specifications System Unit (continued) (Declared values per ISO 9296 and ISO 7779) C O U S T I C S Acoustics WAd3 nAm5 (bystander position) Idle Operating NOTE: Current values for specific configurations are available, 1 B = 10 dBA.
  • Page 39 QuickSpecs Compaq AlphaServer ES40 Compaq AlphaStation ES40 Technical Specifications System Unit (continued) (Power supplies are universal, PFC, auto ranging, 100/240 VAC) (continued) L E C T R I C A L Regulatory Agency Approvals UL: Listed to UL1950 (third edition) CSA: Certified to CAN/CSA-C22.2...
