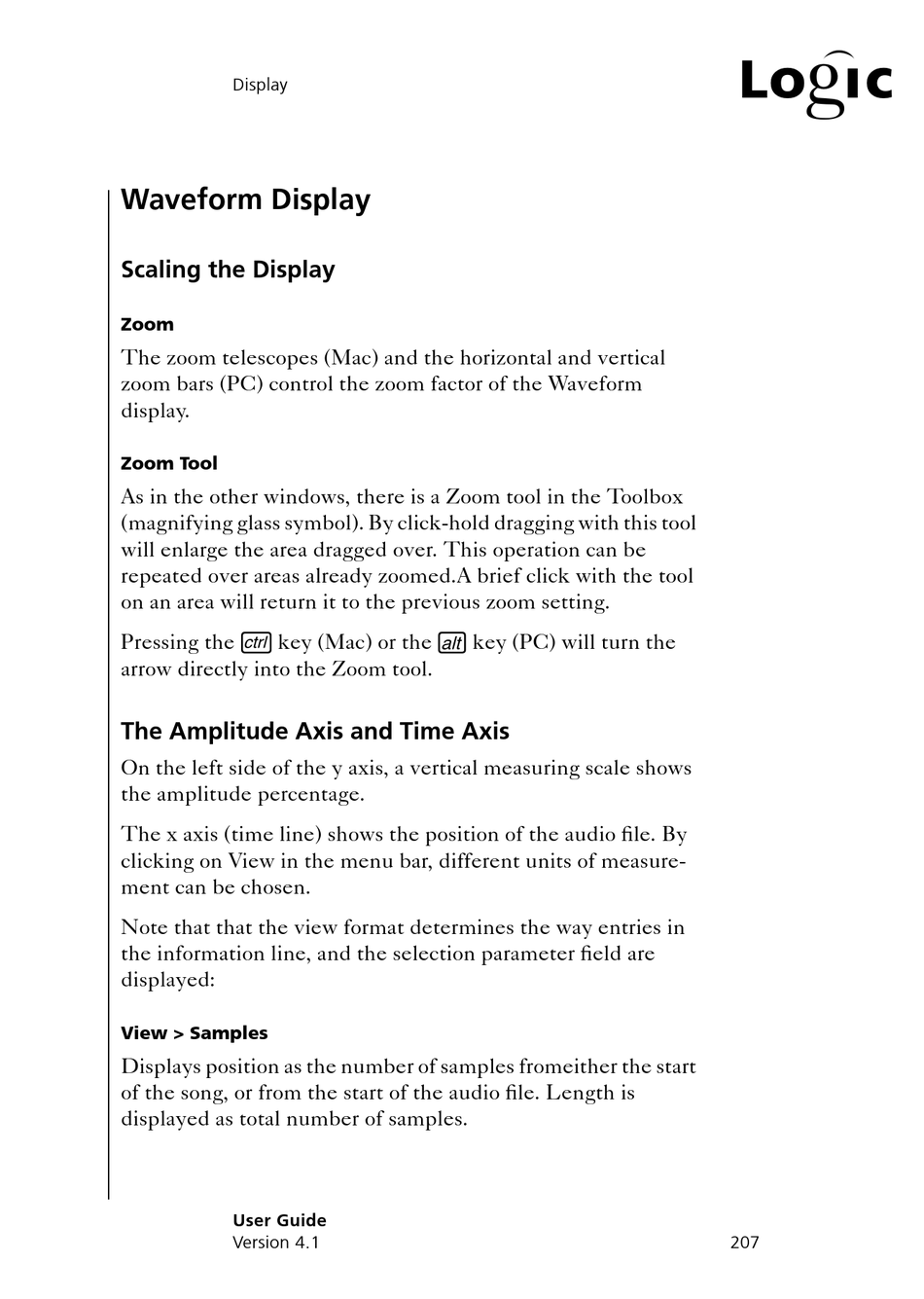

Waveform Display

Scaling the Display

Zoom
The zoom telescopes (Mac) and the horizontal and vertical
zoom bars (PC) control the zoom factor of the Waveform
display.
Zoom Tool
As in the other windows, there is a Zoom tool in the Toolbox
(magnifying glass symbol). By click-hold dragging with this tool
will enlarge the area dragged over. This operation can be
repeated over areas already zoomed.A brief click with the tool
on an area will return it to the previous zoom setting.
ç
Pressing the key (Mac) or the
arrow directly into the Zoom tool.

The Amplitude Axis and Time Axis

On the left side of the y axis, a vertical measuring scale shows
the amplitude percentage.
The x axis (time line) shows the position of the audio file. By
clicking on View in the menu bar, different units of measure-
ment can be chosen.
Note that that the view format determines the way entries in
the information line, and the selection parameter field are
displayed:
View > Samples
Displays position as the number of samples fromeither the start
of the song, or from the start of the audio file. Length is
displayed as total number of samples.
