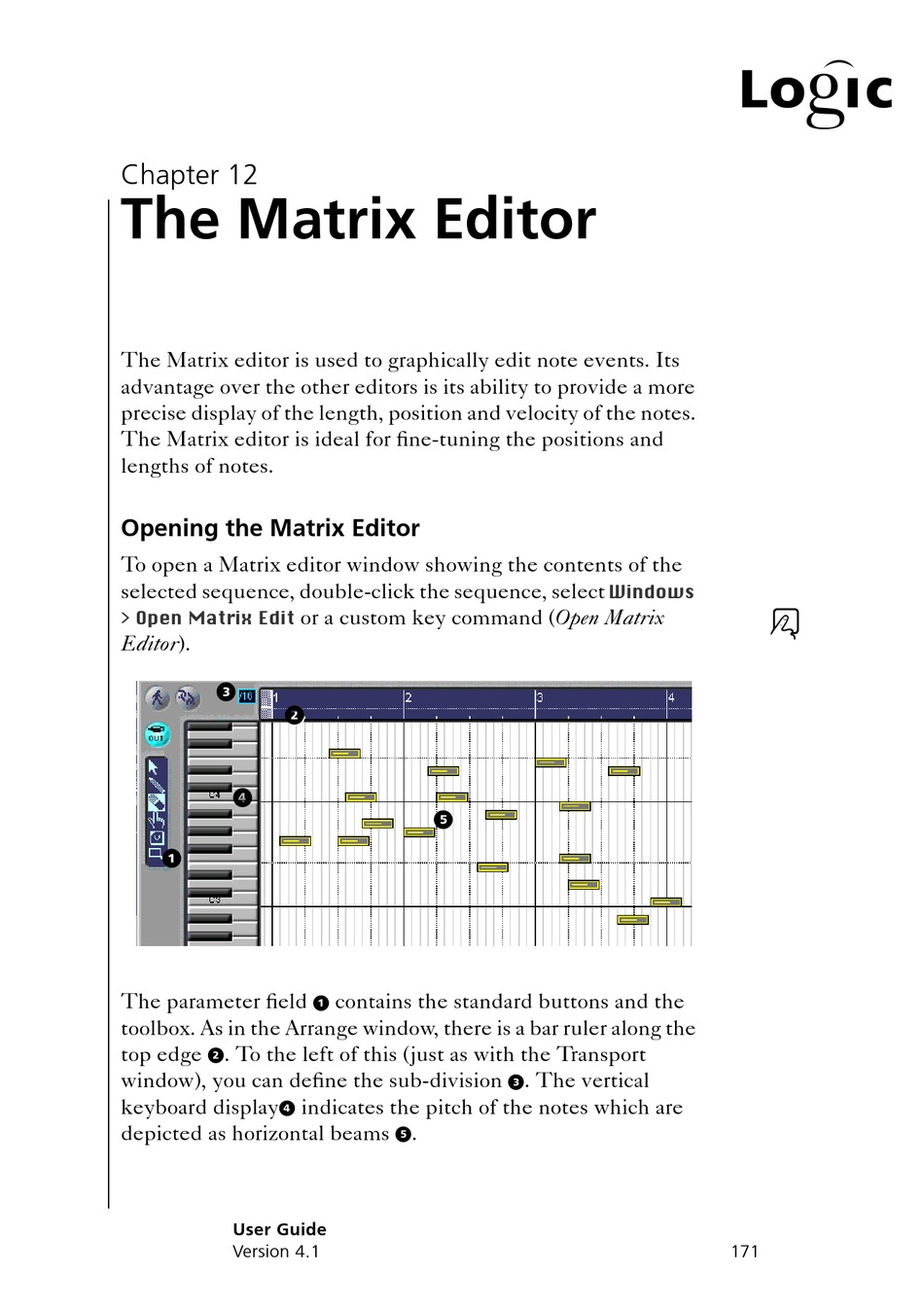

Chapter 12
The Matrix Editor
The Matrix editor is used to graphically edit note events. Its
advantage over the other editors is its ability to provide a more
precise display of the length, position and velocity of the notes.
The Matrix editor is ideal for fine-tuning the positions and
lengths of notes.

Opening the Matrix Editor

To open a Matrix editor window showing the contents of the
selected sequence, double-click the sequence, select
> Open Matrix Edit
Editor).
3
4
1
The parameter field 1 contains the standard buttons and the
toolbox. As in the Arrange window, there is a bar ruler along the
top edge 2 . To the left of this (just as with the Transport
window), you can define the sub-division 3 . The vertical
keyboard display 4 indicates the pitch of the notes which are
depicted as horizontal beams 5 .
User Guide
Version 4.1
or a custom key command (Open Matrix
2
5
r
Windows
171
