Bar Codes
8.1.21.2 RSS-14 Truncated
RSS-14 Truncated has the exact same data characteristics as the RSS-14 Standard
barcode, except the bar height is set to the RSS standard of 13 times the X dimension. This
symbology may be scanned omni-directionally.
The sample below is encoding this data string:
8.1.21.3 RSS-14 Stacked
RSS-14 Stacked has the exact same data characteristics as the Standard RSS-14 barcode.
The data to encode is split in half and encoded as a split level barcode. This format is used
if the width of the barcode will be an issue. The height of the top row of the RSS-14
Stacked barcode is 5 time the X dimension and height of the bottom row is 7 times the X
dimension. The barcode contains a separator pattern, containing no data, which has a
height equal to one X dimension. This symbology can not be scanned omni-directionally.
This symbology does not allow for human readable test with the barcode.
8.1.21.4

RSS-14 Stacked Omni-directional

RSS-14 Stacked Omni-directional has the exact same data characteristics as the Standard
RSS-14 barcode. The data to encode is separated to create a split level barcode. The
height of each row is ascertained from the bar height property of the control. The barcode
contains a separator pattern, containing no data, which has a height equal to 3 times the X
dimension. This symbology may be scanned omni-directionally. This symbology does not
allow for human readable text with the barcode.
Figure 8-7
8-16

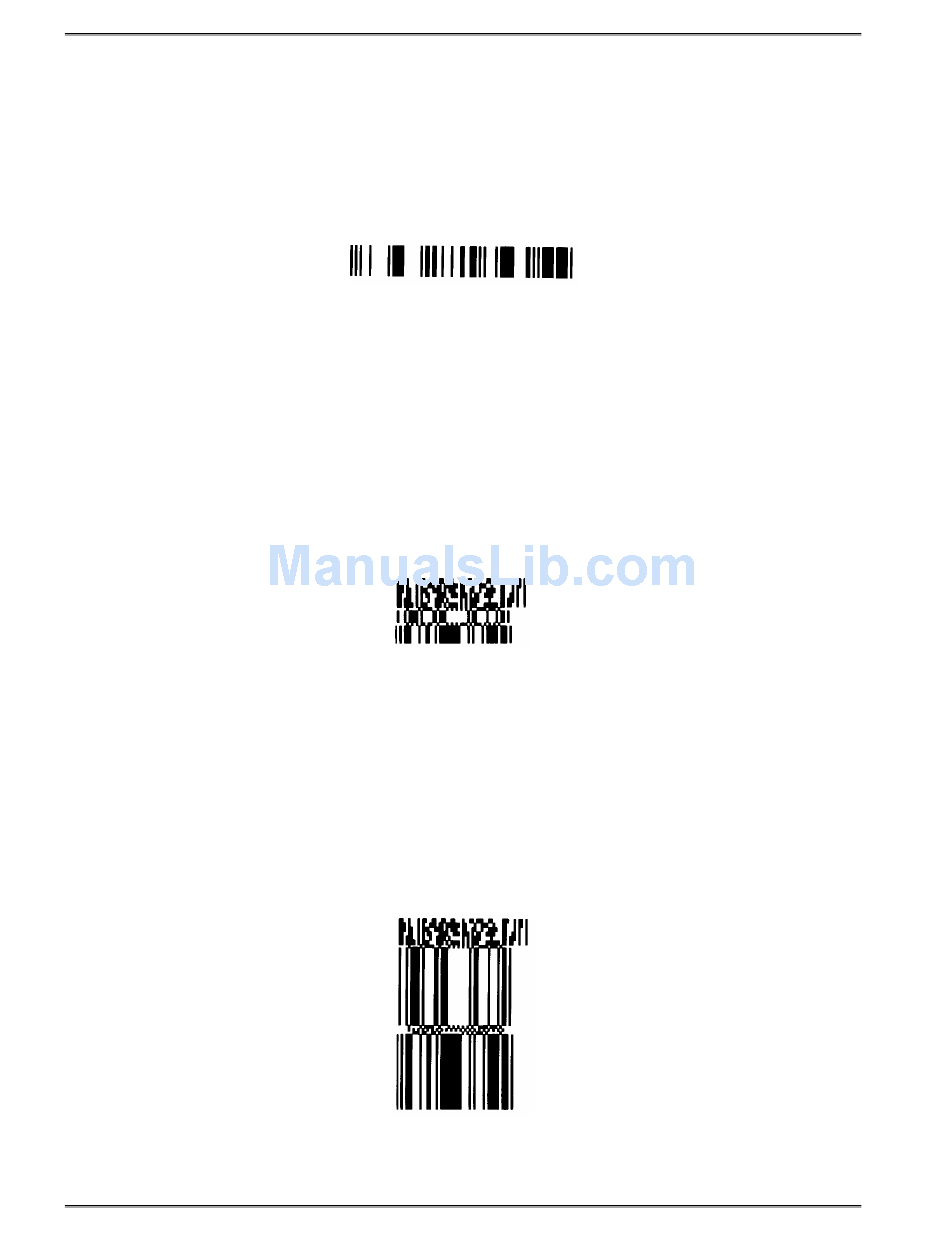

Figure 8-5 RSS-14 Truncated Sample
Figure 8-6 RSS-14 Stacked Sample
RSS-14 Stacked Omni-directional Sample
00012345678905
428M Operator's Manual - 880028-0112
Chapter 8
