Figure 3-20 428M Shown With Optional Pre-Stock Out Assembly - Microcom 428M Operator's Manual

Getting Started
3) PSO "Pre-Stock Out Sensor" configuration. The optional Pre-Stock Sensor
Assembly contains a sensor that may be used to warn of an eminent stock out
(>LOW STOCK<) conditions before printing occurs preventing unwanted partially
printed formats. . The active state of the signal is programmable thru Soft switch
#3, bit #2 (^D23 command). An active state will return an >INPUT 1< response
when queried. The maximum pick-up range not adjustable and is set to sense a
reflection up to 0.80" from the sensor's surface.
PSO Switch
(>INPUT 1<)
configuration

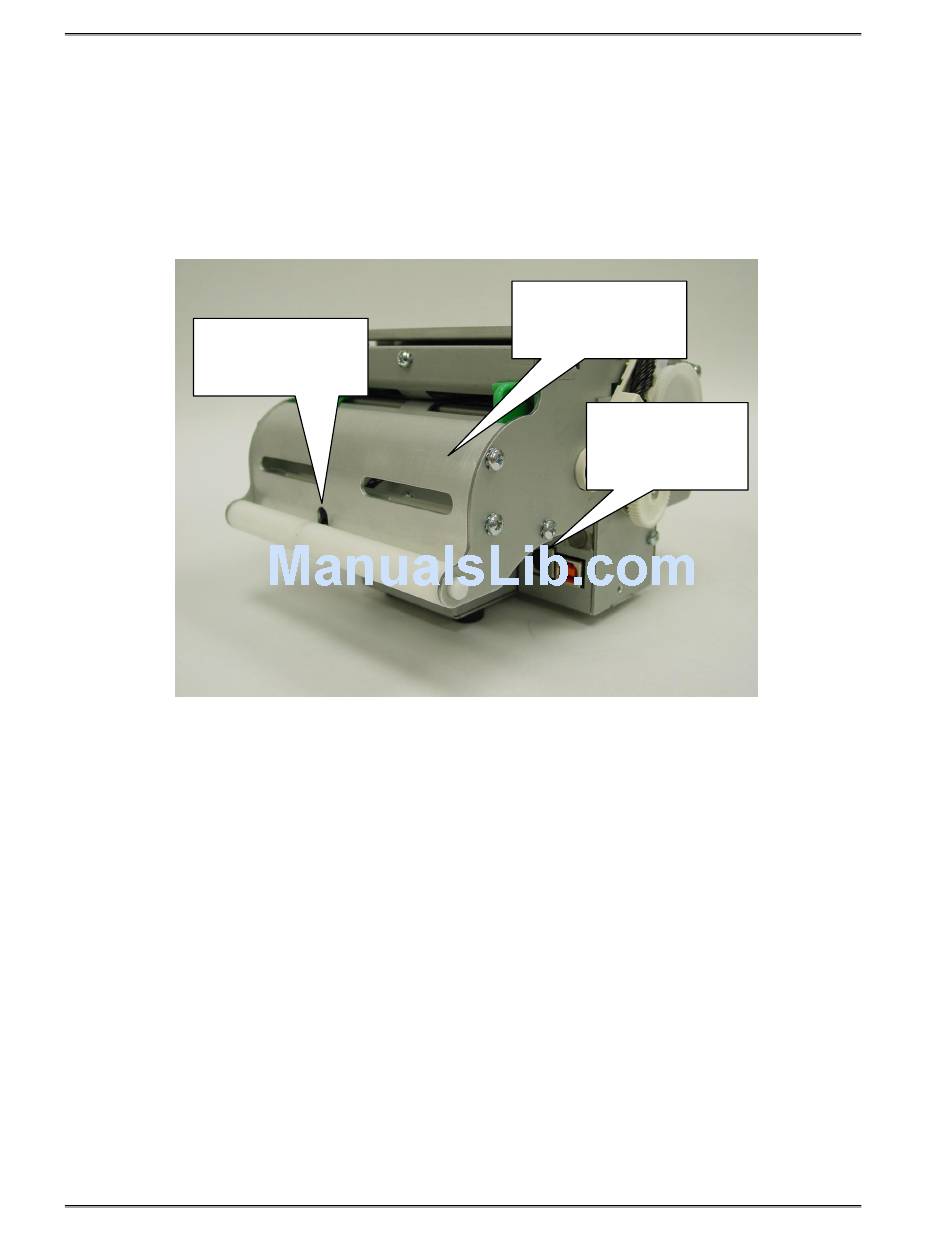

Figure 3-20 428M Shown with Optional Pre-Stock Out Assembly

3-20
PSO Assembly
Configuration
Paper Low Sensor
(>INPUT 2<)
Assembly Port
