To set up the system:
1. Arrange the system base unit, monitor, keyboard, and other peripherals in your
workspace.
2. Connect the cables from the various peripherals to the ports on the back of the system.
Connect the cable from this....
Mouse
Keyboard
Universal Serial Bus device
Modem, printer, or other device
Printer or other device
Network
Stereo speakers or headphones;
multimedia keyboard speaker
External stereo cassette or CD player;
radio or other audio device
Multimedia keyboard microphone,
separate microphone
Game joystick or MIDI device
Monitor
WARNING If you do not use cables supplied by Intergraph Computer Systems, you must use
shielded cables to prevent excessive electromagnetic interference (EMI). Intergraph
Computer Systems cables are designed to reduce the amount of EMI produced by the
system.
3. If the system includes a multimedia option, connect the speakers and microphone or the
multimedia keyboard to the I/O panel. See "Connecting Speakers and a Microphone"
later in this chapter for details.

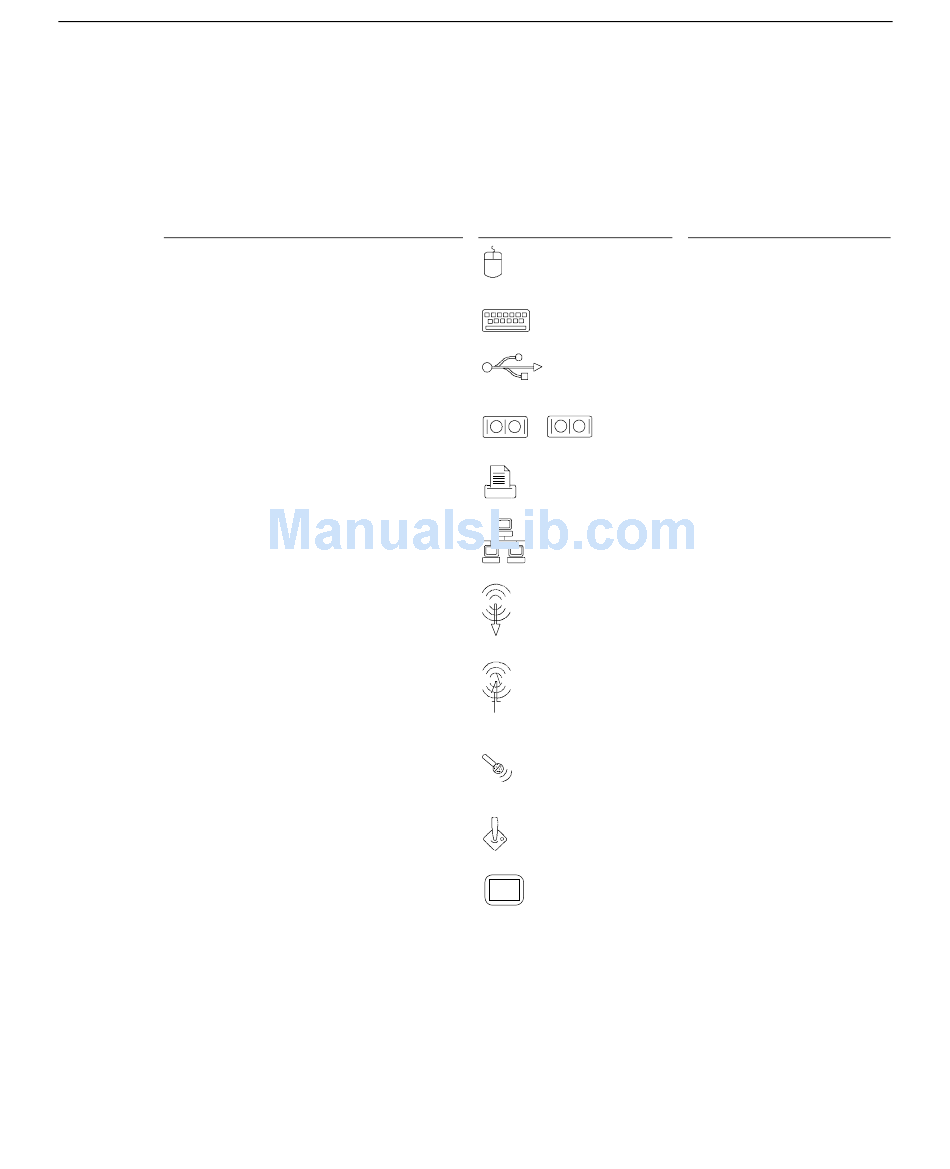

To the port labeled...
1 2
For this connector...
Mouse port
Keyboard port
Universal Serial Bus port
Serial (COM) port 1 or 2
Parallel port
Ethernet port
Line Out port on sound
card
Line In port on sound
card
Microphone port
MIDI/Game port
Video port
