SAF-TE Card

The SCSI Activity Fault-Tolerant Enclosure (SAF-TE) card is an option used only on systems with
RAID configurations. If your system has a RAID configuration with a SAF-TE card, use the
following procedure to replace the SAF-TE card.
To move or replace the SAF-TE card:
1. Remove the disk drive bay as described previously in "Disk Drive Bay." The SAF-TE
card is located in the middle of the SCSI backplane on the back of the disk drive section.
2. Press the two metal clips on the outside of the SAF-TE card mounting slot away from each
other, then rotate the SAF-TE card to a vertical position and remove it.
3. Place the SAF-TE card vertically in the mounting slot and rotate it toward the metal clips until
it snaps into place, with the clips securing the card. Use caution to avoid applying too much
force, as damage to the SAF-TE card and/or the disk drive backplane may result.
4. Replace the disk drive cage as described previously in "Disk Drive Section."

Power Supply

See Chapter 4, "System Hardware," for technical information on the power supply.
To replace the power supply:
1. Remove the top cover. See Chapter 1, "Accessing the Components," for details.
2. Note the location of all power cable connectors on the system board and peripheral devices:

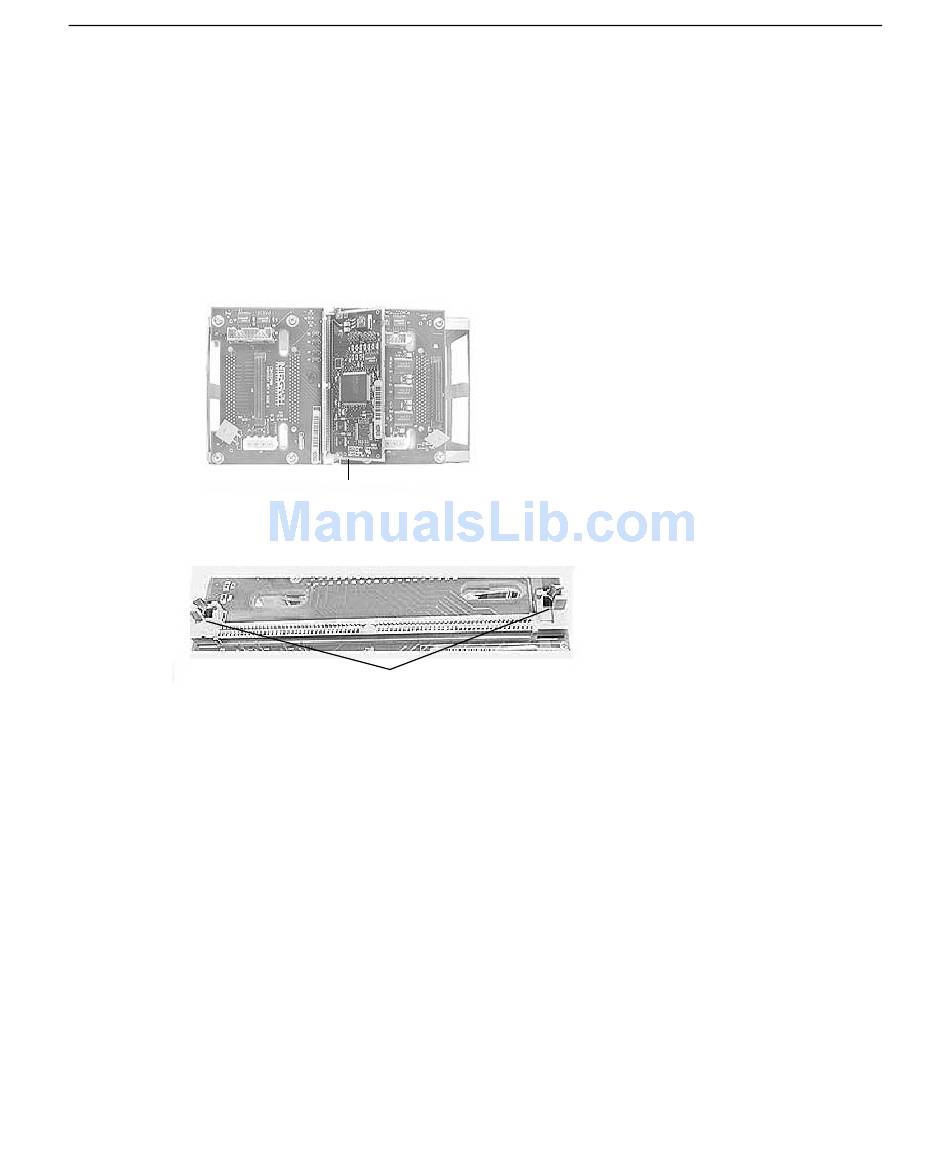

SAF-TE Card

Mounting Clips
