Base Unit Components

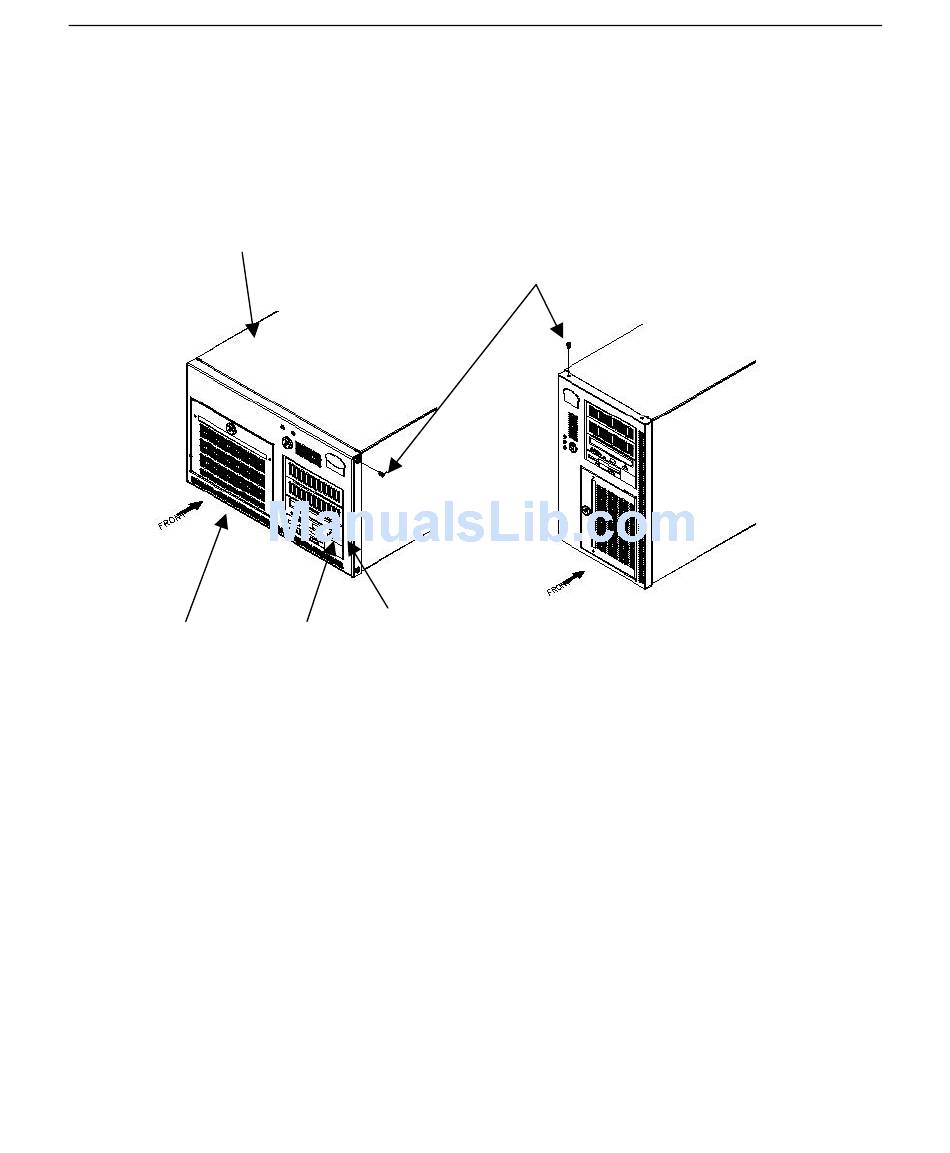

The following figure shows the base unit components:
Top Cover
Disk Drive
Section Door
To replace the disk drive bay door, you must first remove the top cover and open the face panel.
To replace the face panel, you must remove the top cover and the disk drive section door.
To replace the top cover:
1. Remove the top cover. See Chapter 1, "Accessing the Components," for details.
2. Install the new cover.
To replace the disk drive section door:
1. Open the disk drive section door, using the key lock. The door will drop to an open position.
3. Remove the two hinge screws attaching the door to the face panel.
4. Remove the door.
5. Position the new door so that the screw holes on the door are aligned with holes in the face
panel.
Peripheral Face
Cage Panel
Face Plate
Mounting Screws
