(15.24m). Plug one end of the cable into the DB-9 connector and the other into the
appropriate computer/terminal port. Set the computer/terminal for VT-100
emulation, with: 38.4K baud, 8 data bits, 1 stop bit, no parity and no flow control.
RJ-45 Pin #
1-4, 6

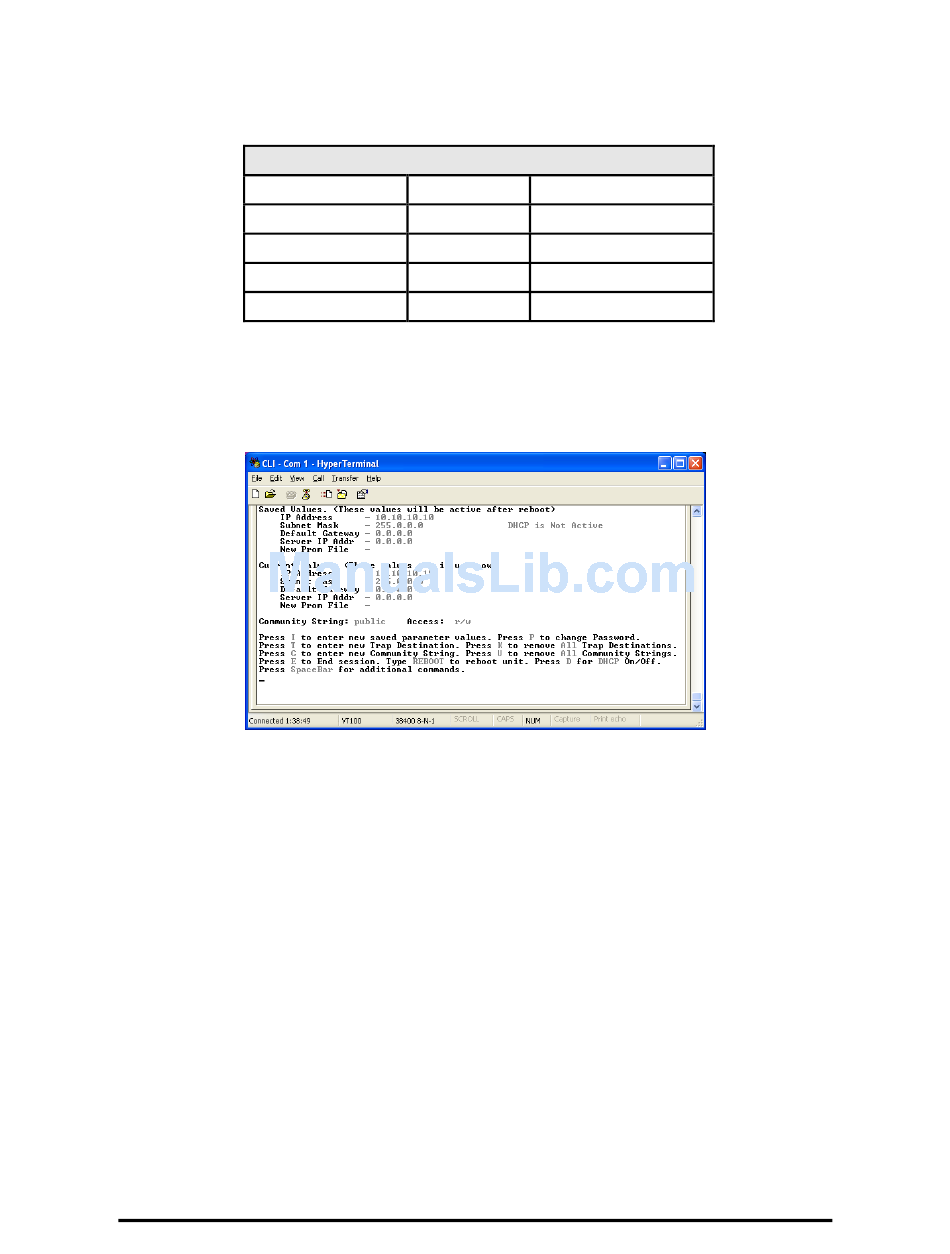

Main Configuration Screen
After running through an initial self test, the screen will display: "Press Enter for
Device Configuration." Press Enter to be taken to the main configuration screen.
The Main Configuration screen contains the following:
Saved Values — displays changes made during current session.
IP Address (MUST be assigned during initial configuration)
Subnet Mask (MUST be assigned during initial configuration)
Default Gateway
Server IP Address
PROM File Name
Current Values — displays values currently in use.
IP Address (IP address of SNMP agent)
Subnet Mask (mask to define IP subnet agent is connected to)
Default Gateway (default router for IP traffic outside subnet)
Server IP Address
PROM File Name
Serial Adapter Pin Connection
DB-9 Pin #
5
2
7
3
8
5
1, 4, 6 - 9
6
Function
Transmit (OUT)
Receive (IN)
Ground
Reserved
