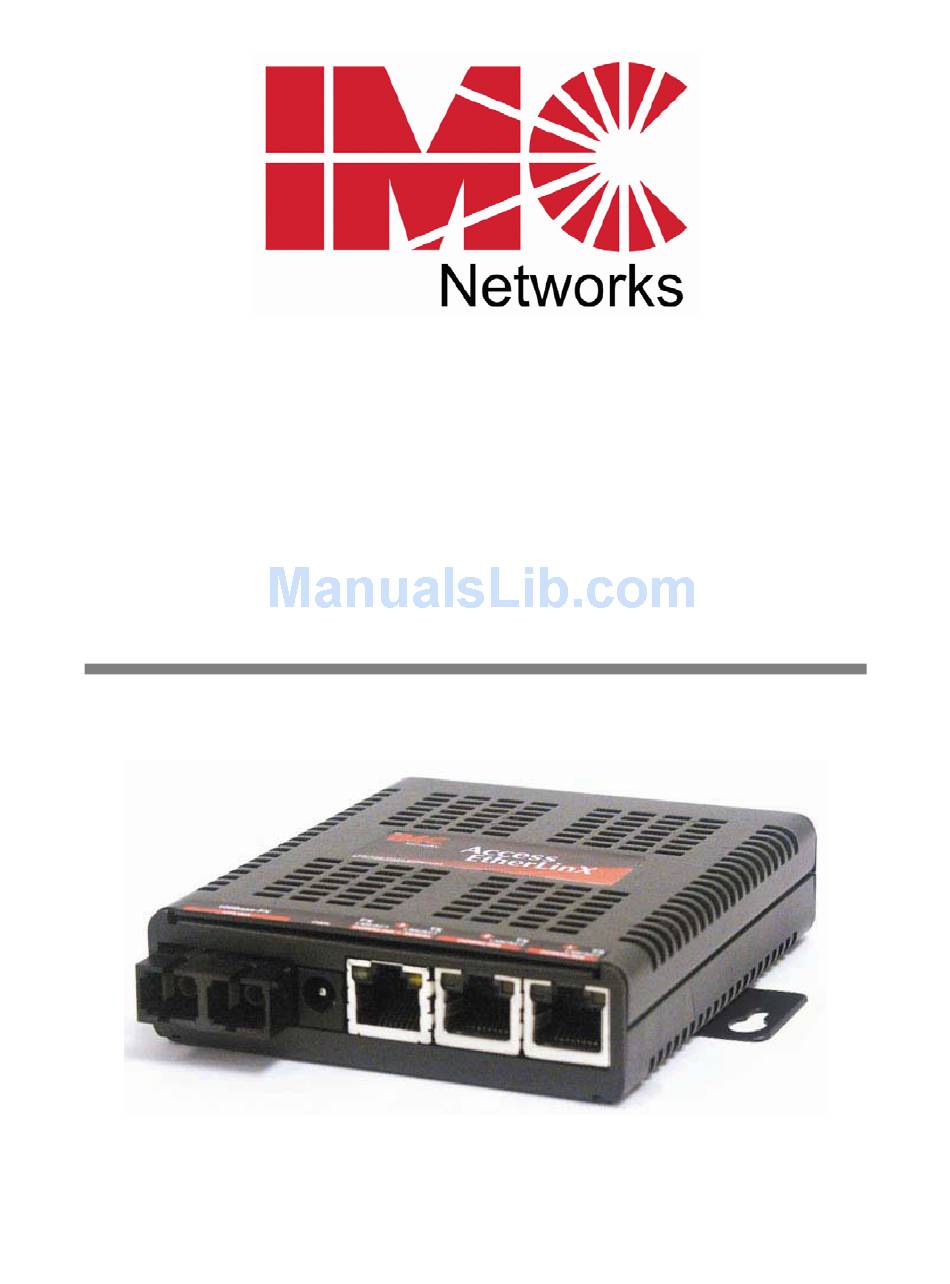

  • Page 1 AccessEtherLinX Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the AccessEtherLinX.................1 Installing the AccessEtherLinX................1 Features ......................2 About iView²......................3 SNMP Management ...................4 LED Operation....................14 Specifications ....................15 Safety Certifications..................16...
  • Page 4 Notes...

  • Page 5: About The Accessetherlinx

    Wall-Mount Installation To wall mount the AccessEtherLinX/3, use the supplied screws to attach the wall- mount bracket to the AccessEtherLinX/3, then mount the unit to the wall. Attach the cables between the AccessEtherLinX and each device that will be interconnected,...

  • Page 6: Features

    Rack-Mount Installation A rack-mount kit can also be ordered, which includes two brackets that screw onto either side of the AccessEtherLinX/4. Once the brackets are attached to the unit, install the AccessEtherLinX/4 into the rack. Features Autocross Feature For Twisted Pair Connection...

  • Page 7: About Iview²

    In this mode, the twisted pair port negotiates for speed and duplex. Forcing the Speed and Duplex Mode The twisted pair downlink ports on the AccessEtherLinX/4 can also be manually set for 10 Mbps or 100 Mbps operation and for Half- or Full-Duplex (i.e. 10 Mbps Full- Duplex, 10 Mbps Half-Duplex, 100 Mbps Full-Duplex or 100 Mbps Half- Duplex).

  • Page 8: Snmp Management

    Assigning IP Information In order for the AccessEtherLinX to allow for SNMP-management, the unit must be assigned IP configuration information (e.g., IP address, subnet mask, etc.) using iConfig via iView²; the unit’s serial port or DHCP (Dynamic Host Control Protocol).

  • Page 9: About Serial Port Configuration

    About Serial Port Configuration Use the supplied RJ-45 to DB-9 adapter on Downlink Port 4 on the AccessEtherLinX/4 or Downlink Port 3 on the AccessEtherLinX/3 to allow for serial port configuration. This adapter uses an IBM-compatible DB-9 serial connector. To connect the AccessEtherLinX to a terminal/computer, use a straight-through (pin- to-pin) cable.
  • Page 10 • Default Gateway • Server IP Addr • New Prom File Current Values Displays values currently in use. • IP Address (IP address of SNMP agent) • Subnet Mask (mask to define IP subnet agent is connected to) • Default Gateway (default router for IP traffic outside subnet) •...

  • Page 11: Creating Community Strings

    Assigning TCP/IP Information To modify the Saved Parameter Values (i.e., assign IP address and subnet mask), press I. Enter the IP address and subnet mask for the connected device, pressing Enter after each value. A default gateway can also be assigned (press Enter to skip). When finished, press Enter, then type Reboot for the changes to take effect.

  • Page 12: Removing Trap Destinations

    To Go Back To Main Screen. • ifstats Displays Ethernet statistics. • rmstats Displays RMON statistics. • cleandb Reboots the AccessEtherLinX with a clean database. This removes all of the information in the database except for the IP address of device.
  • Page 13 LANs (VLANs) allow devices in different LANs to communicate with each other as if they were part of the same LAN. The AccessEtherLinX is VLAN compatible, with the ability to accept traffic containing 802.1q VLAN tags on the Uplink port and direct that traffic to the twisted pair downlink ports or to management based on a VLAN ID.
  • Page 14 Note Decide whether the unit will be in dlsecure mode or dl_open mode. Configure as desired and reboot. Use dl_open to configure multiple VLAN IDs on multiple ports. When the VLAN functionality is NOT already enabled, the following screen will display: *** VLAN ID And Port VLAN Membership Configuration Screen *** This device is not currently in VLAN Mode.
  • Page 15 dl_open Mode— Configuring Multiple VLAN IDs Per Port Make sure to configure the unit for dl_open mode and reboot the unit. Upon enabling VLAN functionality, the following screen will appear: *** VLAN ID And Port VLAN Membership Configuration Screen *** Vlan ID │...

  • Page 16: Downloading Files

    TFTP session. Port Configuration The AccessEtherLinX ports can be configured via serial configuration. Type ports and press Enter to be taken to the Port Configuration screen. From this screen, users can enable/disable ports, configure FiberAlert and Auto-Negotiation, etc. (This can also be performed via iView².)

  • Page 17: Using Telnet

    About DHCP The AccessEtherLinX comes with a DHCP client. It is disabled by default. If a DHCP server is present on the network, the DHCP client will initiate a dialogue with the server during the boot up sequence. The server will then issue an IP address, Default Gateway and Subnet mask to the AccessEtherLinX chassis.

  • Page 18: Led Operation

    FDX/COL Glows amber when port is operating in Full-Duplex. Blinks amber when collisions occur on port. The LED functions on the AccessEtherLinX/3 are: Uplink Port LNK/ACT (located on RJ-45 of downlink port 3) Glows green when link is established on port.

  • Page 19: Specifications

    32° to 122° F (0° to 50° C) Storage Temperature -4° to 158° F (-20° to 70° C) Humidity 5 to 95% (non-condensing) Maximum heat generated 50 BTU/hr for AccessEtherLinX/4 17 BTU/hr for AccessEtherLinX/3 Power Consumption (typical) 1.5 A for AccessEtherLinX/4 650 mA for AccessEtherLinX/3 Throughput Up to full wire speed on all ports except the fourth (4 port)/third (3 port) downlink (this port also functions as a serial port).

  • Page 20: Safety Certifications

    Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
